Esser 8000C - 18 7-Output-P Module; 7-Output-M Module

Page 132
Fire Alarm Computer 8000C / M
18 7-Output-P module / 7-Output-M module
Micro module with seven freely programmable outputs for activating external devices and
system components. The seven outputs are connected to a common potential which,
depending on module type, must be connected to common positive potential (7-Output-
P
-
module, part number 787680) or negative potential (7-Output-
M
module, part number
787681).
X1
64-way plug connector to micro module slot of the basic module, field device modul
e
or extension module of the FACP 8000C / M
V1 to V7
Freely programmable output (with open collector). External switching voltage 4V t
o
30 V DC, max. current load per output 300 mA, max. 1A total current per micr
o
module.
☞
Assignment of the seven outputs is programmed using the service PC and Customer Data
Editor 8000C / M software. For each output, you may enter a specific additional text
comprising 25 characters per line for output on the alphanumeric display and protocol
printer.

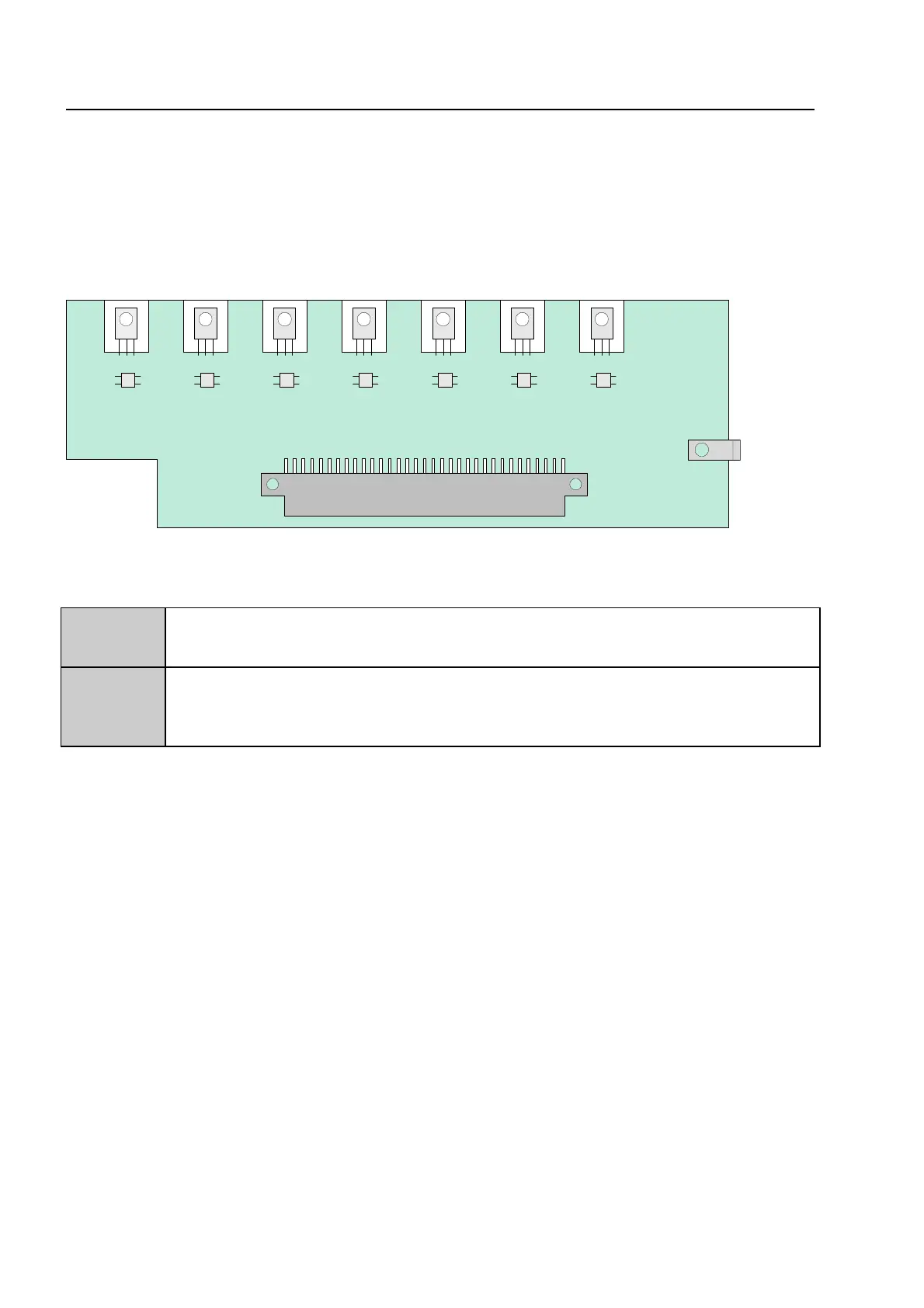

7
-Output-P module / 7-Output-M module
X1
V 7
V 6
V 5
V 4
V 3
V 2
V 1
7-output module
