Fire Alarm Computer 8000C / M
21 essernet

module
The essernet
®
module permits networking and mutual exchange of data in the essernet
®
system.
Only one essernet
®
module may be installed in a control panel. You may operate up to 31
essernet
®
devices, such as fire alarm control panels System 8000 or external operating panels, in
this short and open-circuit tolerant essernet
®
network.

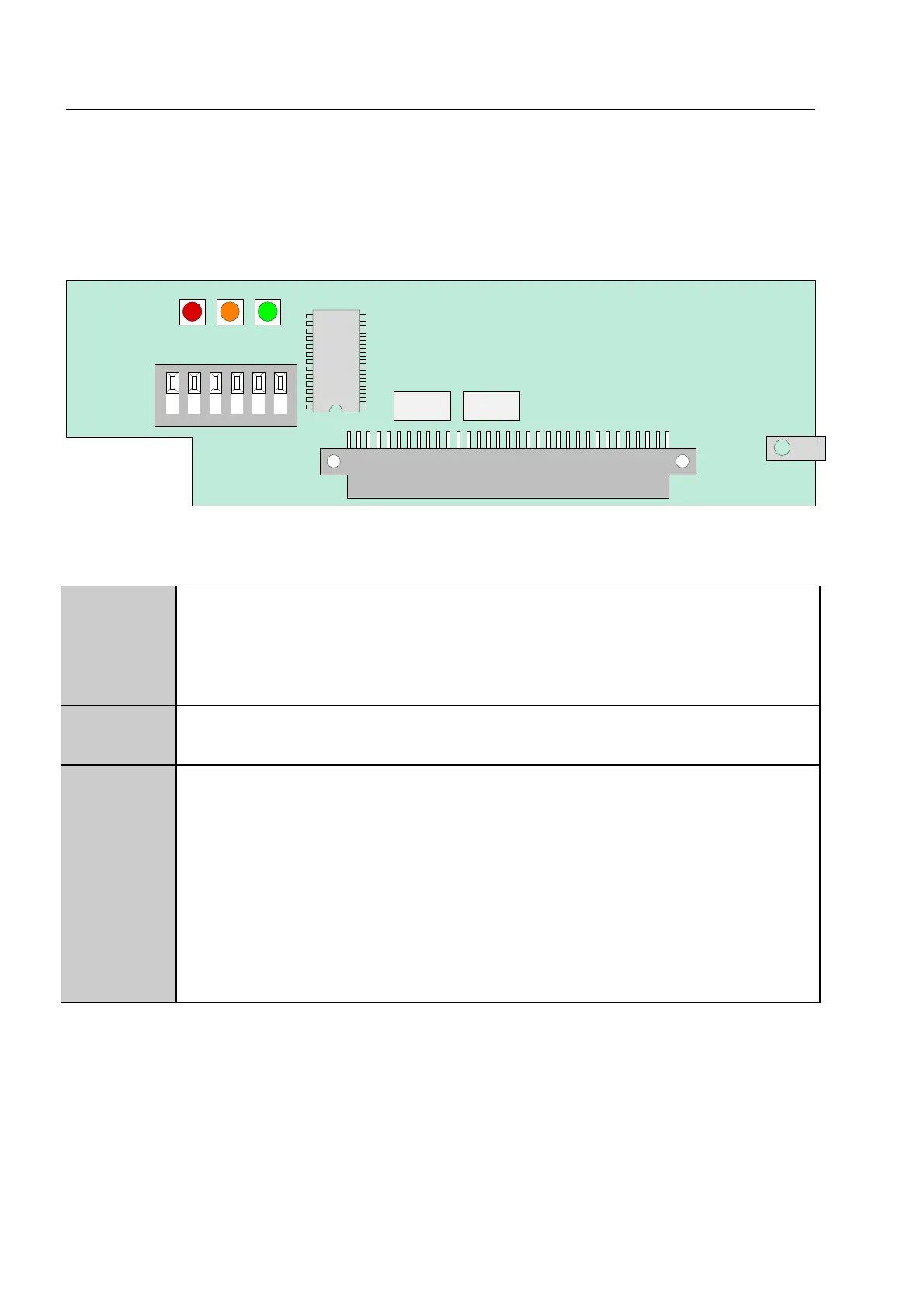

X1
LED
transformer/filter
1
2
3
4
5
6
DIL
essernet
®
module
red
green
orange
X1
64-way plug connector to micro module slot of the basic module FACP 8000C / M.
If an essernet
®
module is used, the EMC protection integrated for this slot
must be disabled with the appropriate jumpers on the micro module plug-in
card.
DIL-switch
The 6-way DIL-switch is used for setting the (binary) address of the essernet
®
module.
LED
The three LED indicate module operating status or trouble.
LED 1 red, lit
⇒
No communication with fire alarm control panel
system 8000
LED 2 orange, lit
⇒
Trouble, received data only from one direction
LED 3 green, flashing
⇒
Normal mode
other than the
variants listed
⇒
Module faulty!
☞
In addition to setting addresses with the DIL-switch, it is also necessary to program the
control panel address (1 to 31 max.) and the total number of networked devices in the
essernet
®
by means of the service PC and Customer Data Editor 8000C / M software.
e
ssernet

module
