Esser 8000C - 19 4-Zone Module

Page 134
Fire Alarm Computer 8000C / M
19 4-zone module
Micro module for connecting four fire detector zones or technical alarm zones (TAL) configured in
limit monitoring or diagnostic technology (EDD).

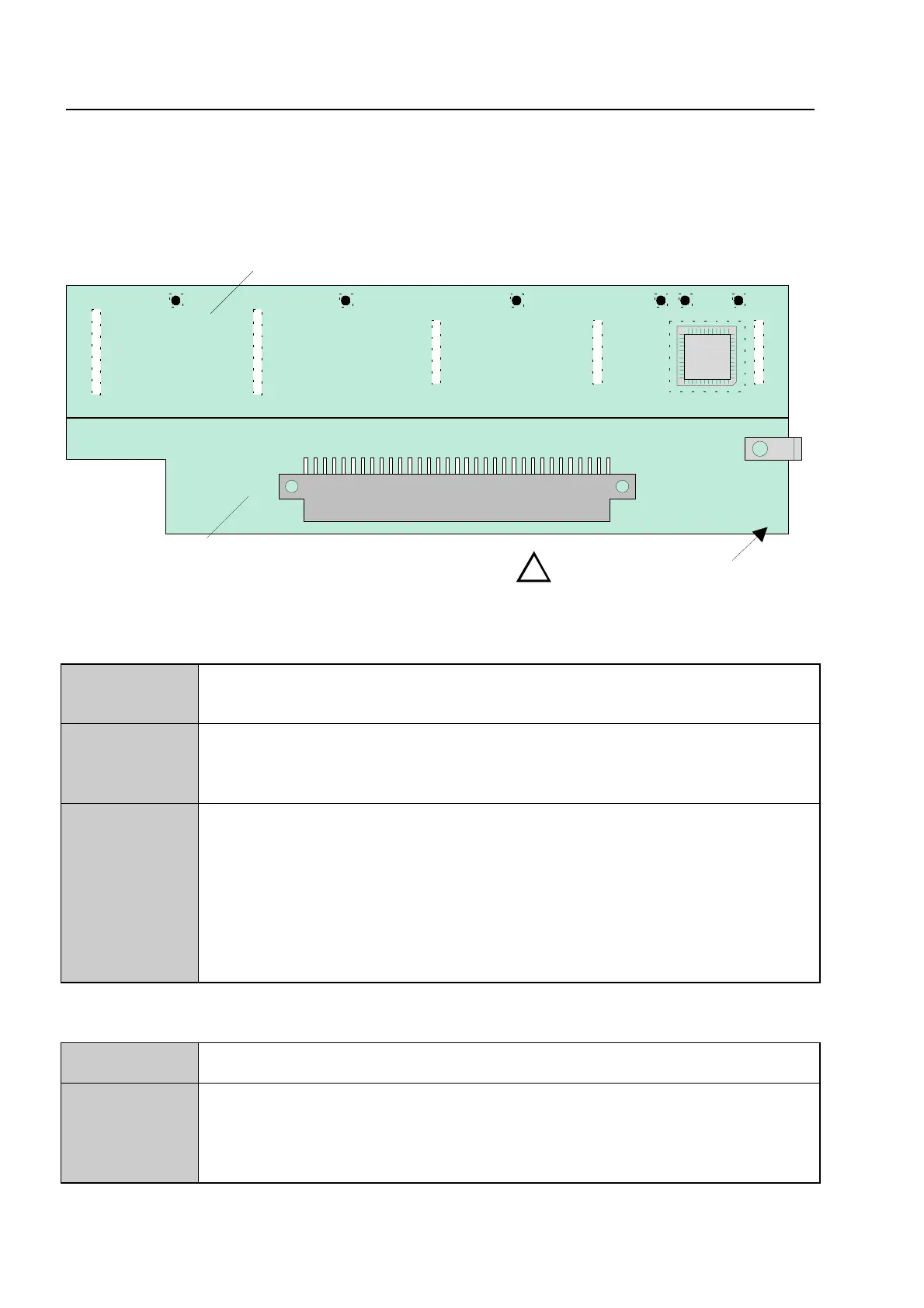

X1
LED 1
LED 2
LED 3
LED 4
LED 5
LED 6
A
A
A
A
A
4-zone module
Zone card
master card
XXXXXX A2
4-zone module only
hardware release A2 required!
!
Master board
X1
64-way plug connector to micro module slot of the basic module, field device
module or extension module of the FACP 8000C / M
LED5 yellow
(SMD)
LED off
⇒
Normal status
LED on
⇒
Module faulty
LED6 red
(SMD)
LED on / off
⇒
Module trouble
LED flashing
(break 50ms)
⇒
CPU failure mode or internal 12V/24V supply failed
LED flashing slowly
⇒
Normal mode
LED flashing rapidly
⇒
Addressing in progress
Zone card
A
Plug connector to master board
LED1 to 4
(SMD)
LED for detector zone 1 to 4
LED off
⇒
Normal status
LED on
⇒
Current limiter activated for detector zone
4
-zone module
