Page 128
Fire Alarm Computer 8000C / M

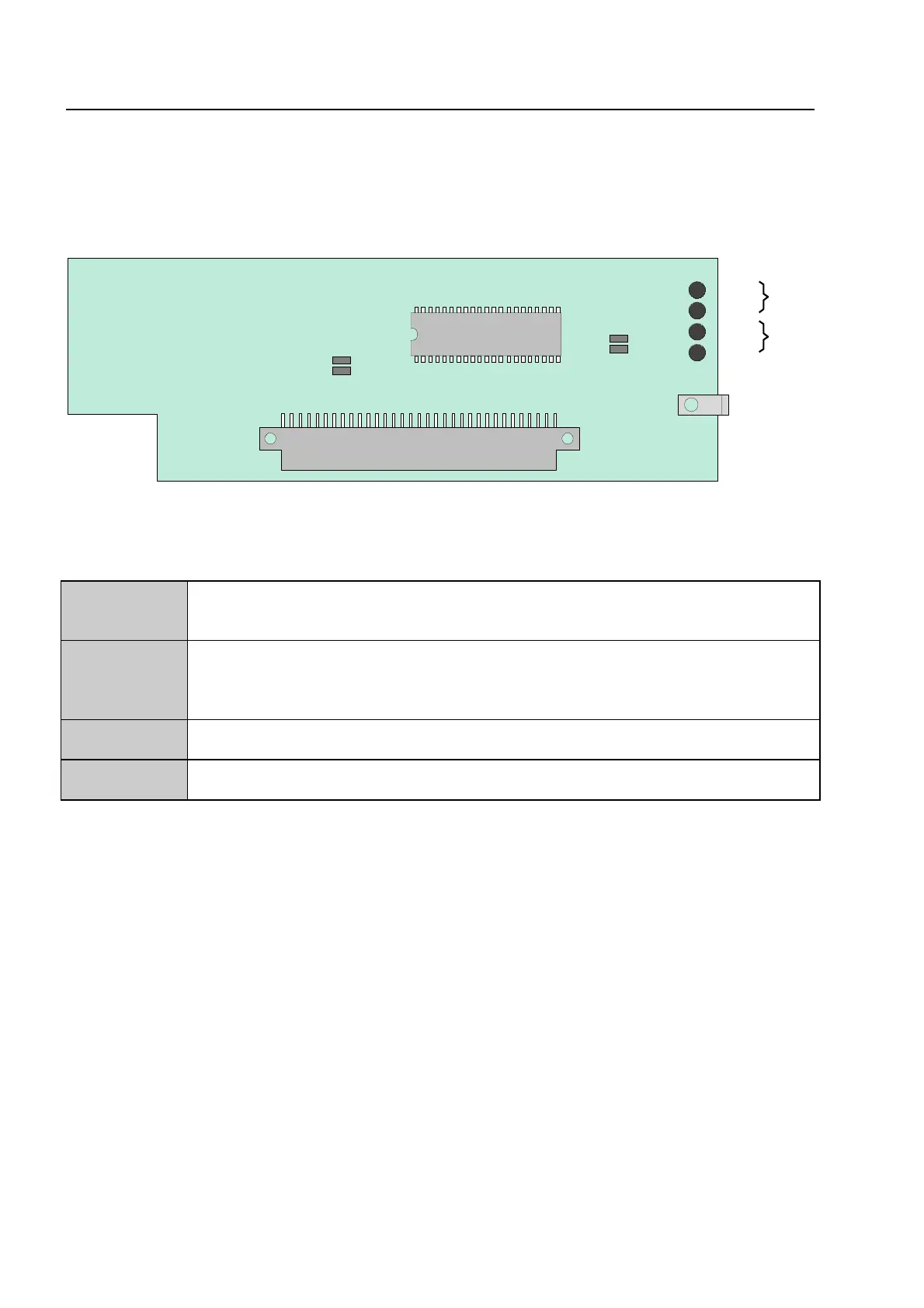

16 RS 232 / TTY module (serial interface)
This module provides either a serial RS 232 or TTY interface (20mA) for exchanging data with
external devices connected.
X 1
64-way plug connector to micro module slot of the basic module, field device
module or extension module of the FACP 8000C / M
BR 4
Solder jumper for activating control LED D16 to D19. Factory setting (jumper =
open) should only be altered for testing the interface as a result of the higher leve
of current required by the LED.
D 16, D 17
Control LED for data communication with RS 232 interface (observe BR 4)
D 18, D 19
Control LED for date communication with TTY interface (observe BR 4)
☞
The required interface type RS232 or TTY(20mA) is programmed using the service PC and
Customer Data Editor 8000C / M software.
S 232 / TTY module (serial interface)
