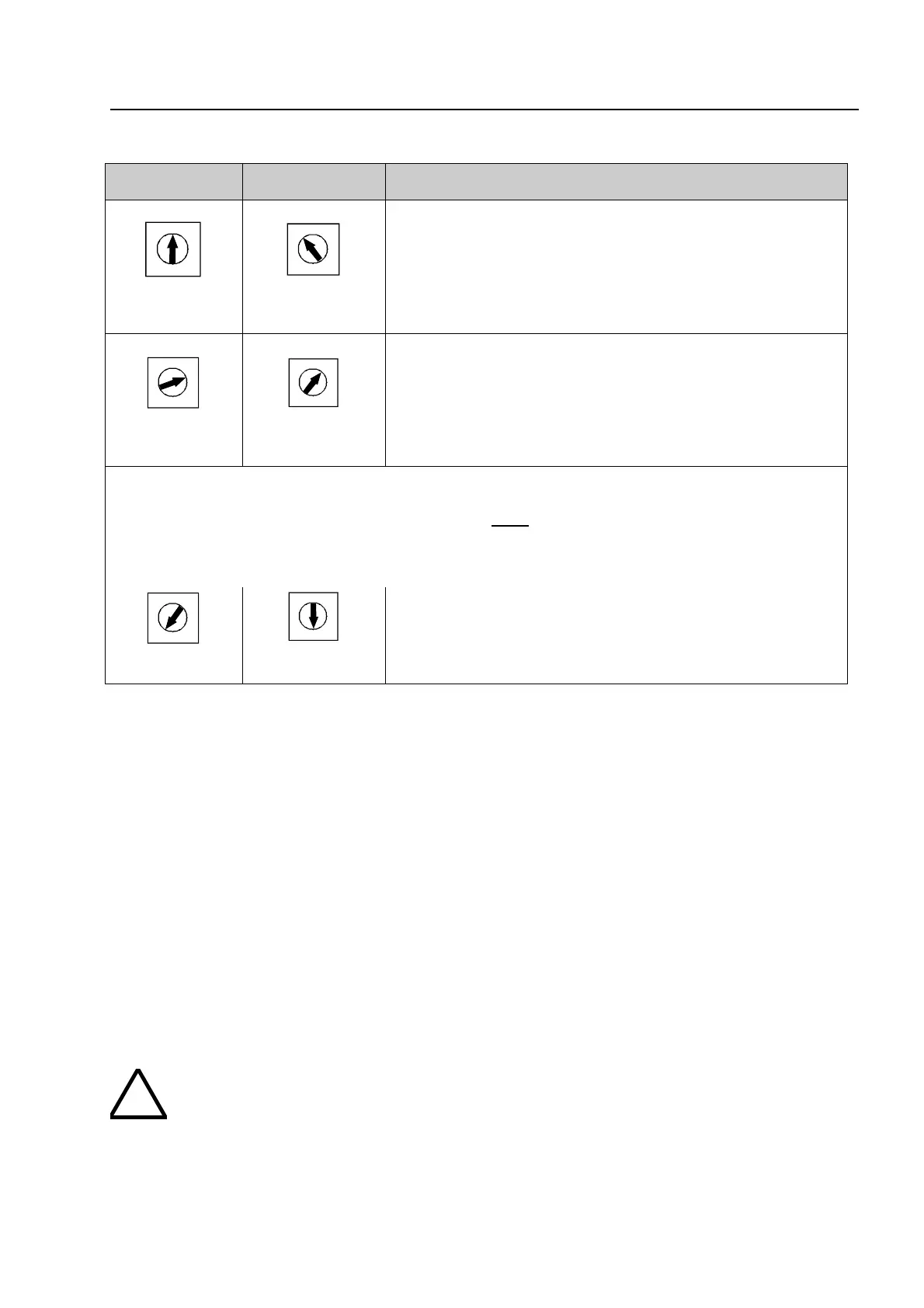

Setting the essernet-address (Example)
S2 S1 Adress
0
1
2
3
4
5
6
7
8
9
Pos. 0
0
1
2
3
4
5
6
7
8
9
Pos. 9
address
09
0
1
2
3
4
5
6
7
8
9
Pos. 2
0
1
2
3
4
5
6
7
8
9
Pos. 1
address
21
Exception
If the essernet
®
micro module is used in combination with a PC plug-in card (part no. 784867
),
e.g. in a EDWIN or Gebanis system, the following must be observed:
The required address must be increased by an
offset of +40
in order to prevent malfunction o
f
the essernet
®
.
0
1
2
3
4
5
6
7
8
9
Pos. 6
0
1
2
3
4
5
6
7
8
9
Pos. 5
Example: address 25 (+Offset 40) =
65
EMC protection
If an essernet
®
micro module is used, you must jumper the integrated EMC protection for this slot.
Special protective devices are installed for the EMV protection of the LAN cable.
Compatibility
essernet
®
micro module Typ 1(784840, 64 kBd)
All hardware revisions up to and including B2 are compatible with each other and with the
repeaters up to revision A. Hardware revision E of micro modules and repeaters is compatible with
micro module revision B3 and later. Hardware revisions up to and including B2 and hardware
revisions of B3 and later should not be used in mixed operation as this might lead to
communication problems.
essernet
®
micro module Typ 2 (784841, 500 kBd)
All hardware revisions of the modules and repeaters delivered to date are compatible with each
other and with revision E.
!
The essernet
®
micromodules with hardware revision E and later are class A informatio
n
devices (ITE) as per DIN EN 55022: 1999-05. This device may cause radio interferenc
e
in a residential environment. The user may be legally obliged to take appropriate actio
n
in any case of interference. A residential area is defined as an area in which th
e
operation of broadcast radio or television receivers must to be anticipated in a range o
f
10 m from the device in question.
essernet
®
micro module hardware revision E and high
er
