Fire Alarm Computer 8000C / M
Example: FACP 8000C/M (Panel number 01)
1
2
B
1
2
3
4
5
D
B

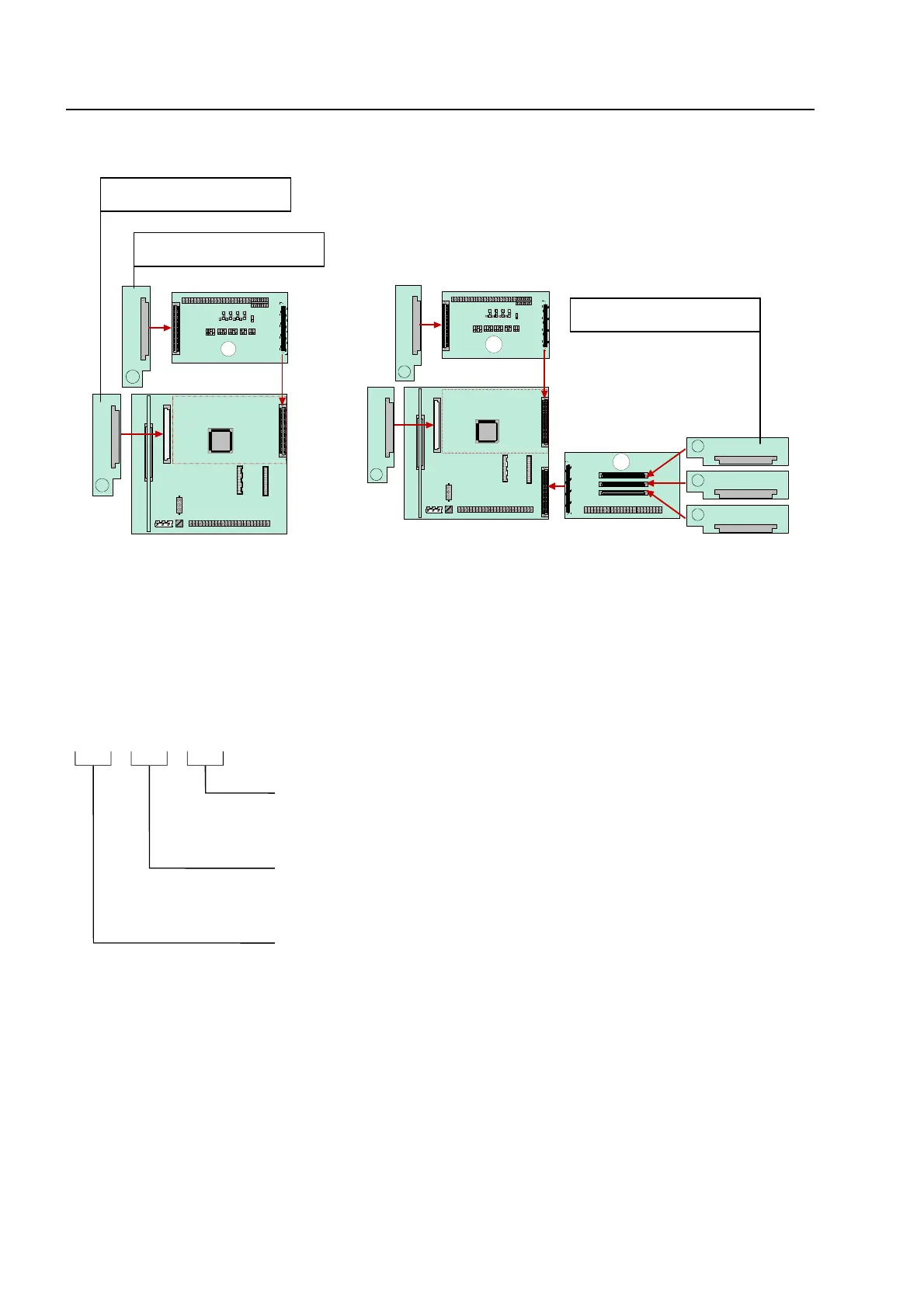

Fig. 45 Example FACP 8000C Example FACP 8000M
Definition of primary loop numbers
Individual assemblies of the FACP 8000C/M can be switched on/off with the internal primary loop
number through the control panel keyboard or programmed with the customer data editor. This
internal primary loop number is composed of the control panel number, the slot and the assembly
number.
0 1 2 3
Subassembly number of the Basic-, Field device-
or extension module
Slot number: Basic module = No. 1
Basic module Slot 1 = No. 2
Basic module Slot 2 = No. 3 (only 8000M)
Number of the Fire Alarm Panel (01 to max. 31)
Service Level
Primary loop number 0123
Primary loop number 0113
Primary loop number 0131
