Table 99: Basic Stack with Four Switches: Connections (continued)
Connect this slot and port . . . . . . To this slot and port
Slot 3 Stack Port 2 Slot 4 Stack Port 1
Slot 4 Stack Port 2 Slot 1 Stack Port 1
Example: Basic Stack with Eight Switches

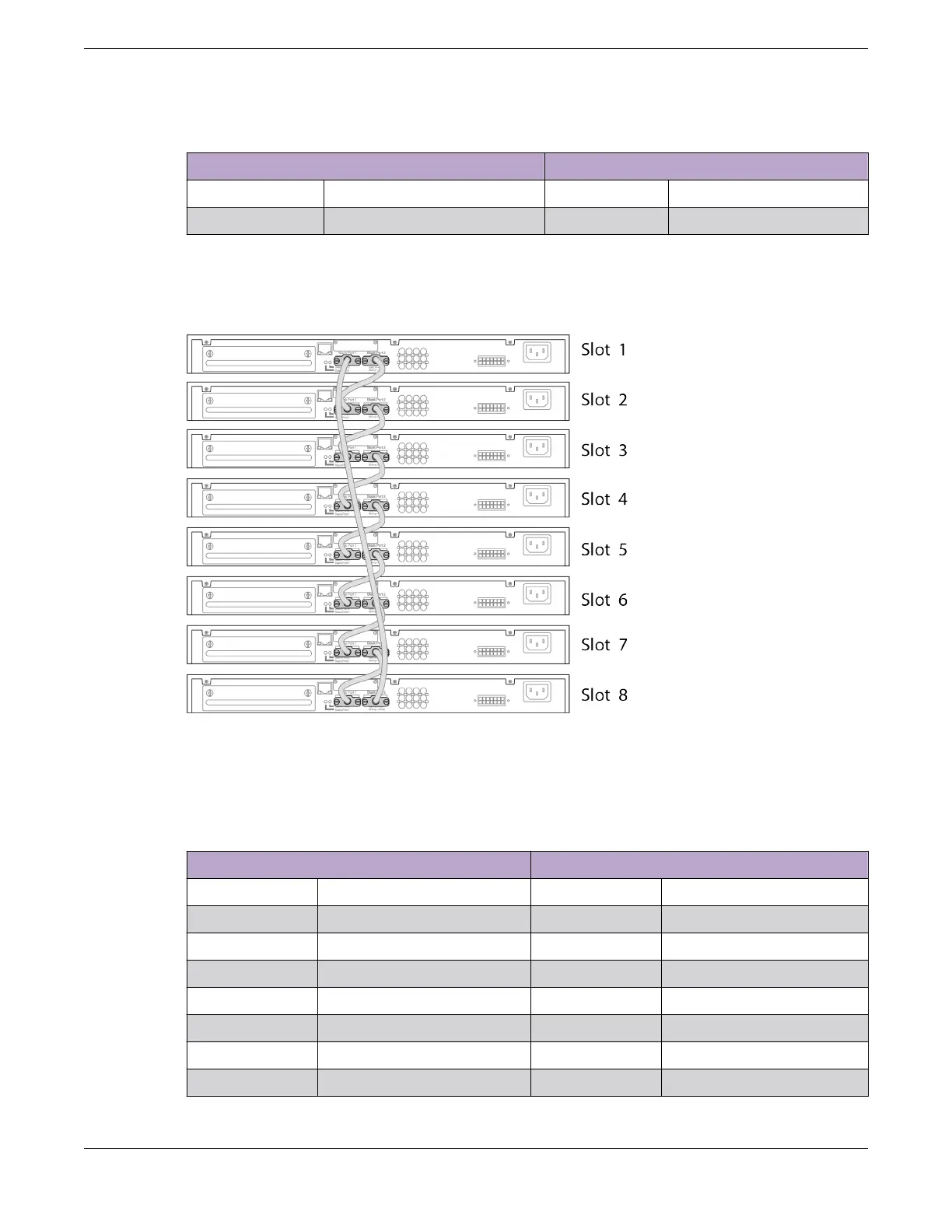

Figure 162 shows cable connections for an 8-node stack using SummitStack 40G cables to connect
switches with integrated SummitStack ports.
Figure 162: SummitStack Cable Connections Using Eight Switches with Integrated
SummitStack Ports
Table 100 lists the recommended order for connecting the stacking ports in this example.
Table 100: Basic Stack with Eight Switches: Connections
Connect this slot and port . . . . . . To this slot and port
Slot 1 Stack Port 2 Slot 2 Stack Port 1
Slot 2 Stack Port 2 Slot 3 Stack Port 1
Slot 3 Stack Port 2 Slot 4 Stack Port 1
Slot 4 Stack Port 2 Slot 5 Stack Port 1
Slot 5 Stack Port 2 Slot 6 Stack Port 1
Slot 6 Stack Port 2 Slot 7 Stack Port 1
Slot 7 Stack Port 2 Slot 8 Stack Port 1
Slot 8 Stack Port 2 Slot 1 Stack Port 1
Connecting the Switches to Form the Stack Ring Building Stacks
216 ExtremeSwitching Hardware Installation Guide
