Users Manual
5-6
Table 5-2. PDC/VPT Teletext Page 300, Transport Method A
Data Set Contents/Remarks
1 ... 4 Data sets show scheduled transmission date and time in white and yellow.
The concealed VPS data are shown in magenta when the REVEAL key (
?
?
) on the
TV remote control has been pressed.
5 Special function: No specific PIL value (PIL = Progr. Identification Level)
6 Special function: Timer control code
7 Special function: Recording inhibit
8 Special function: Interruption code
9 Special function: Continuation code
Fluke 54200 without the VPS/PDC option contains fixed VPT data, time, and date on
Teletext Page 300, see Figure below.

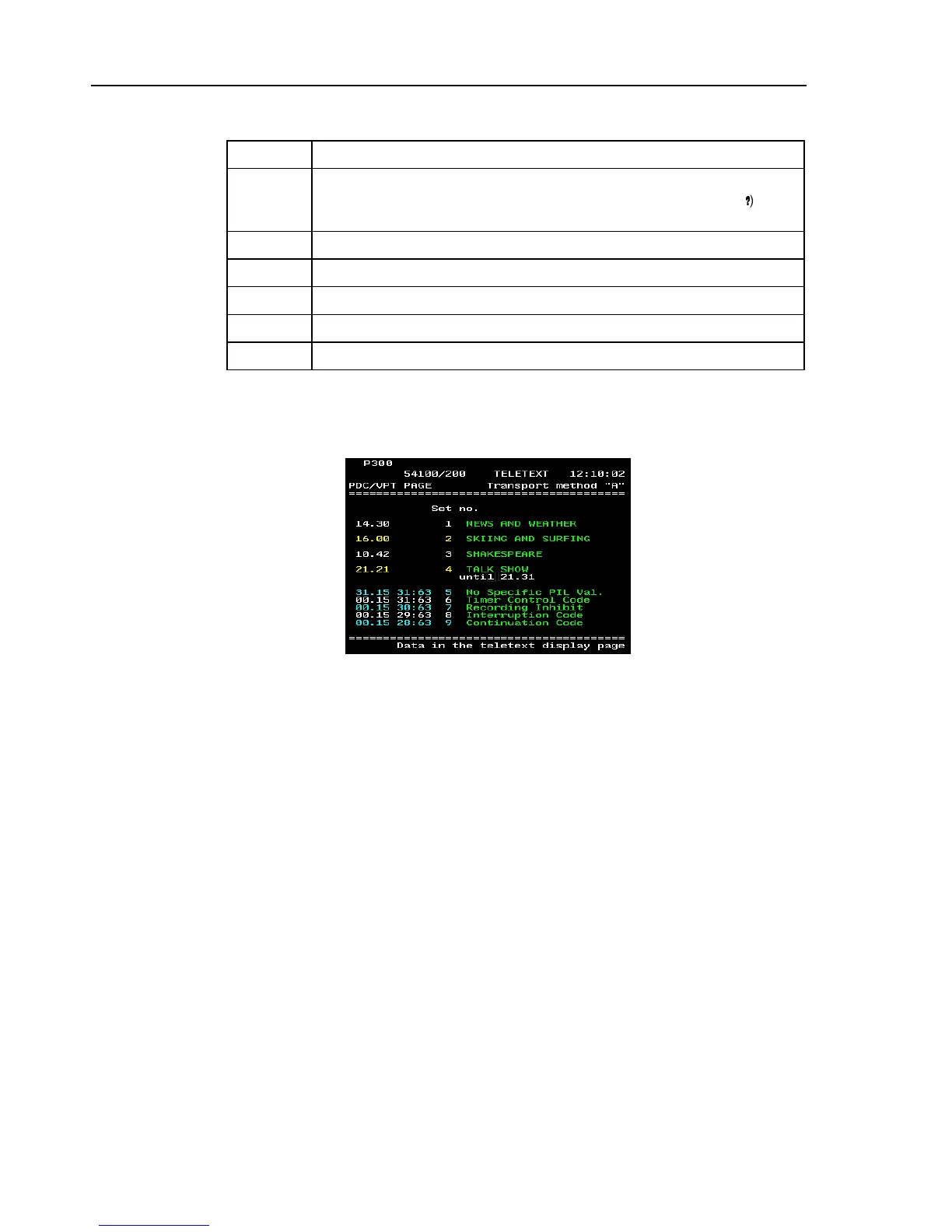

Figure 5-3. Teletext Page 300 with VPT/VPS
Additional for Fluke 54200 with VPS/PDC Option:
The displayed VPT data, time, and date on Page 300 are identical to the contents of the
same VPS memory locations 1 to 9. When you have programmed the VPS memory
locations 1 to 4 automatically the timer data are changed on Teletext Page 300 if the
instrument is in the Teletext TOP1 or FLOF1 mode. The locations 5
to 9 contain fixed
data.
For programming VPS, see Page 5-29.
The VCR operating instructions show you how to program the VCR using VPT.
