Fluke 54200 - Wide Screen Signalling Bits; Wide Screen Signalling Bits (WSS)

54200
Users Manual
8-14
Video Programming System (VPS)
Procedure:
•
Same settings as above
•
Connect the scope to the
VIDEO OUT
of the generator. Use a 75
Ω
feedthrough
termination.
•
Set the scope to PAL (625 line system) and select TV line 16.
•
Select an appropriate time base and amplitude scale.
Test Result Requirement:
The scope shows the following signal:

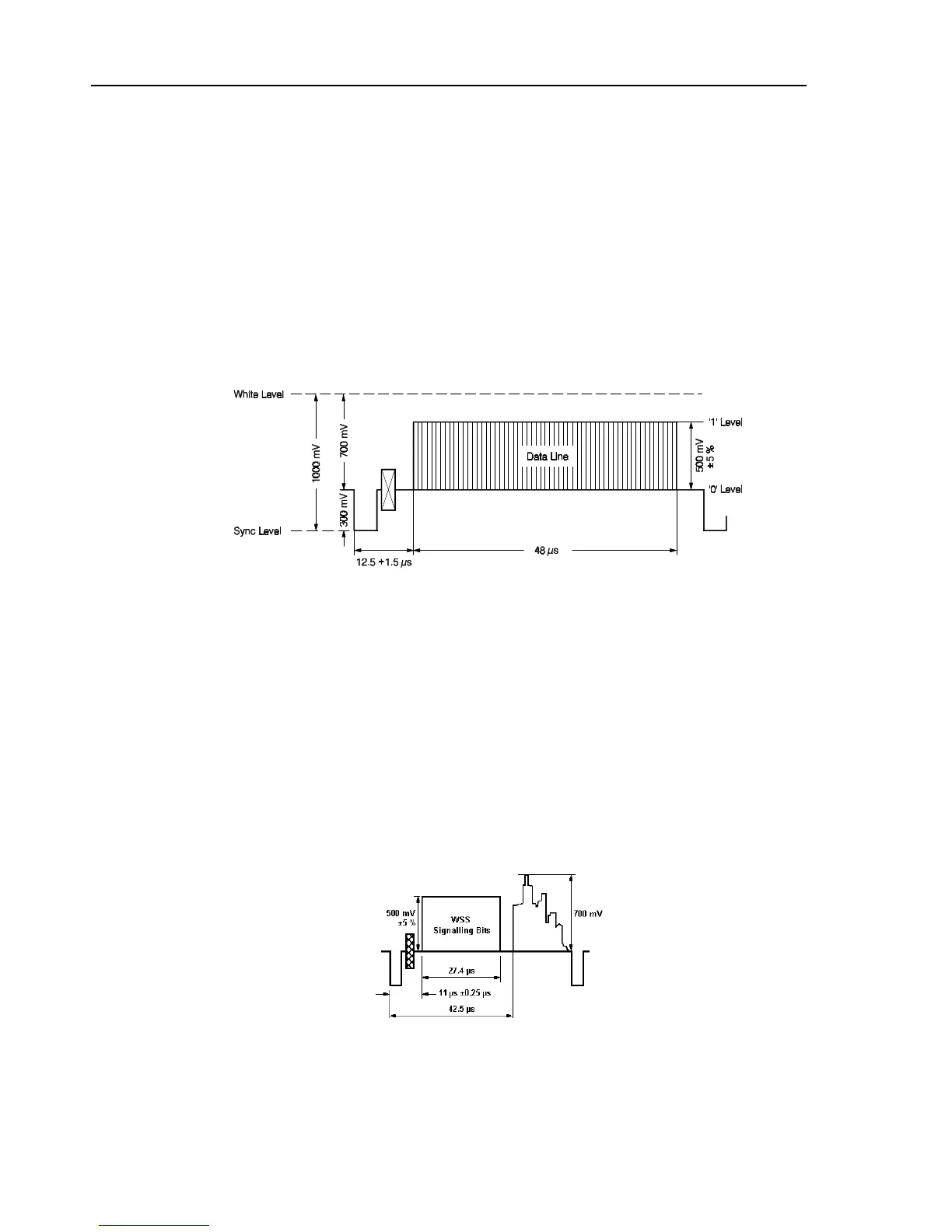

Figure 8-10. VPS Data in Line 16
Wide Screen Signalling Bits (WSS)
Procedure:
•
Same connection as above
•
Select TV line 23.
•
Check in the
digital
submenu if the
Wide Screen Signalling
is set to
Auto
.
Test Result Requirement:
The scope shows the following signal:
Figure 8-11. Wide Screen Signalling Bits
