Fluke 54200 - Sound Part

54200
Users Manual
8-18
Sound Part
BTSC Mono
Procedure:
•
Remove the Y/C cable.
•
Connect the
RF OUT
of the TV Signal Generator to the antenna input of the TV.
•
Set the TV to antenna input.
•
Load the default settings of the generator with
RECALL 0
.
•
Press the
standard
softkey (F1) in the
main
menu.
•
Press the
edit
softkey (F3) and select country
USA
in the popup menu with the Pre-
defined Country List to set the instrument to
NTSC M
.
(Instruments without PAL are automatically set to
NTSC M
after
RECALL 0
).
•
Press the
enter
softkey (F5) to return to the
main
screen.
•
Select the
sound
submenu with the
sound
softkey (F3).
The display shows:

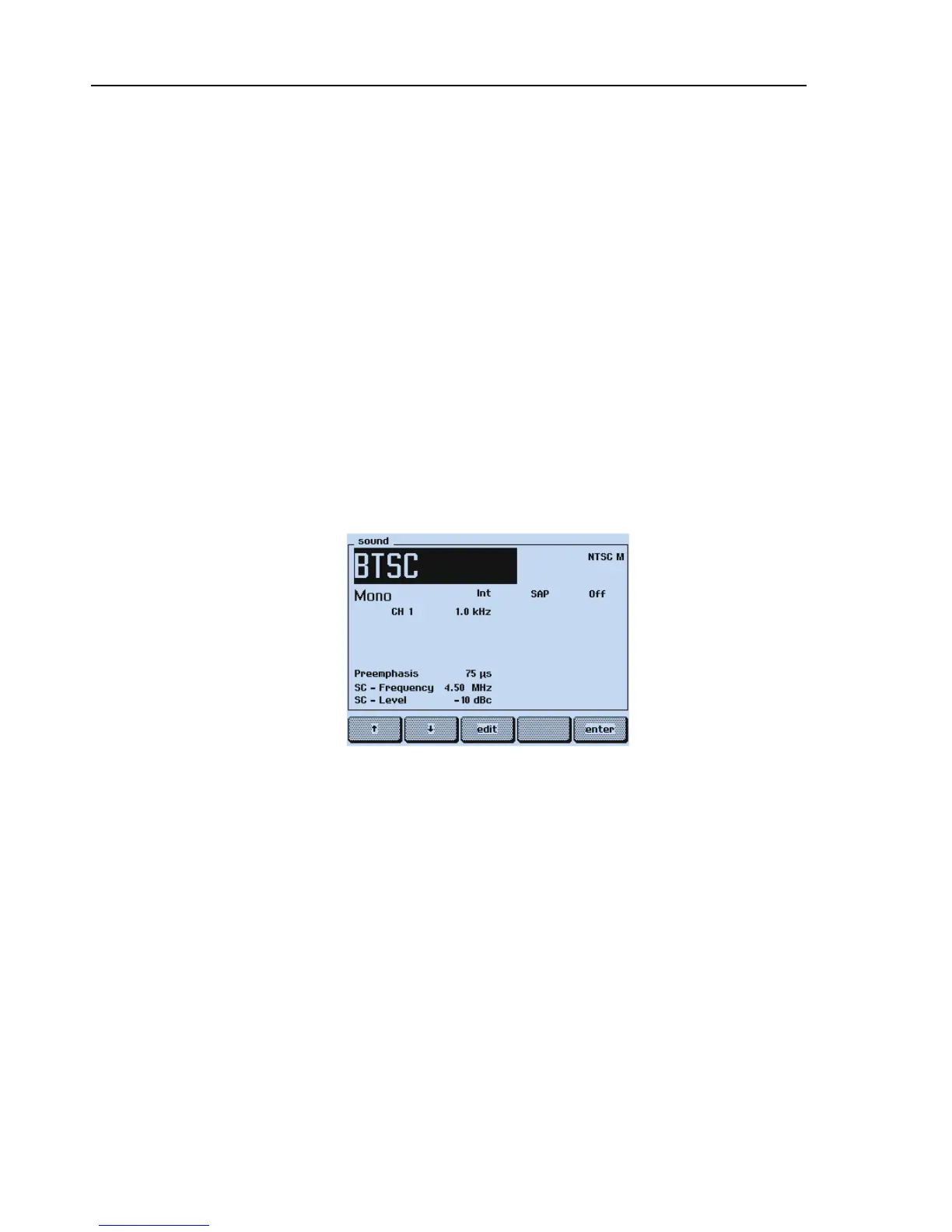

Figure 8-15. BTSC Sound Settings
Test Result Requirement:
The TV reproduces a sound with 1 kHz modulation in both channels.
•
Press the
CH1
key longer than one second and select
3.0 kHz
in the popup menu.
•
Press the
enter
softkey (F5) key to confirm the setting.
The TV reproduces a sound with 3 kHz modulation in both channels.
