Fluke 54200 - Status Bits Transmission Scheme for Wide Screen Signalling

54200
Users Manual
5-18
Status Bits Transmission Scheme for Wide Screen Signalling

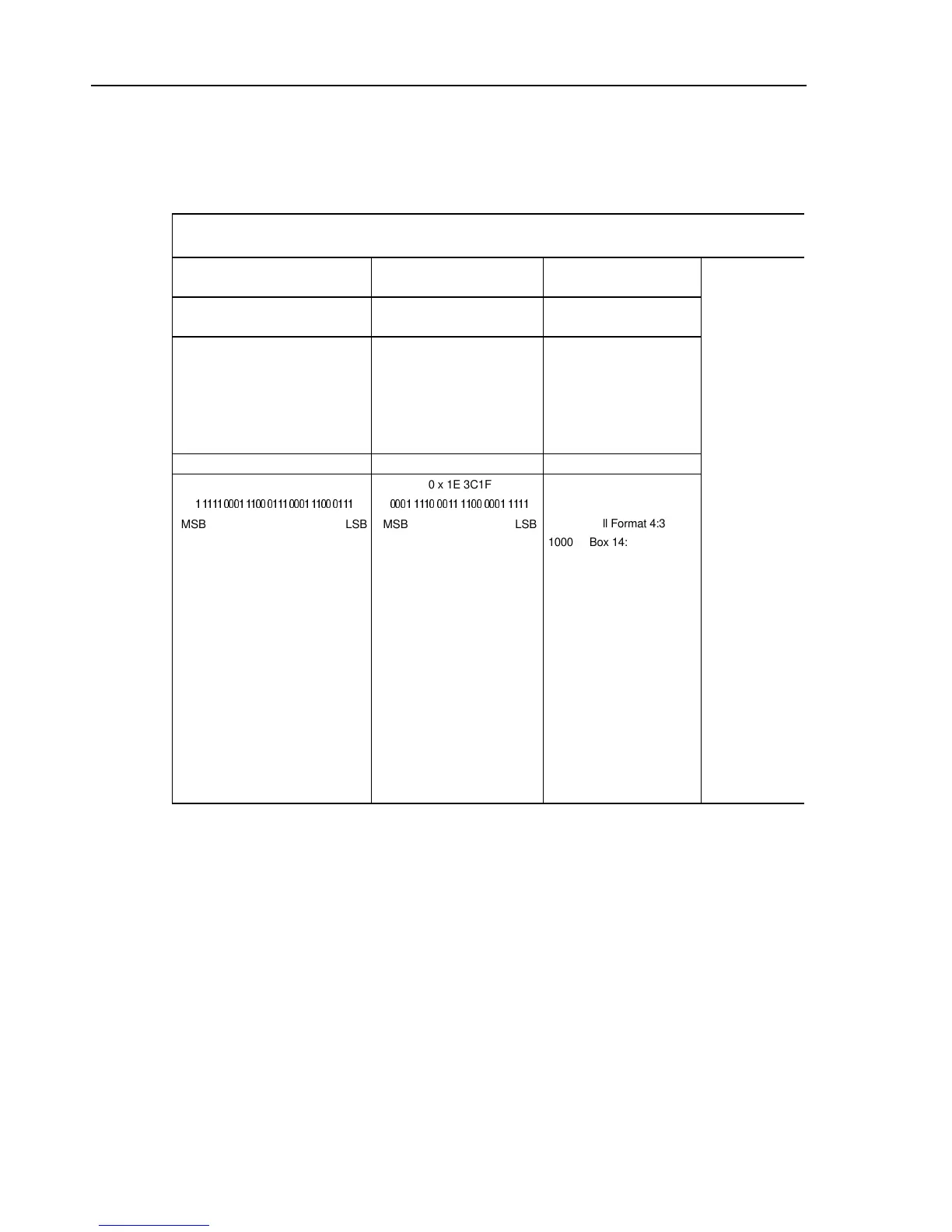

Table 5-7. WSS Status Bits Transmission Scheme
Status Bits Transmission
Insertion: First Half of Line 23 Coding: Bi-phase Modulation Coding Clock: 5 MHz (T
S
= 200 ns)
Run-in Start Code Group 1
Aspect Ratio
29 Elements
based on 5 MHz
24 Elements
based on 5 MHz
24 Elements
based on 5 MHz
Bit Numbering
0 1 2 3
LSB MSB
per Info Bit
1)
"0" = 000 111
"1" = 111 000
MSB transmitted first MSB transmitted first LSB transmitted first
0 x 1F1C 71C7
1 1111 0001 1100 0111 0001 1100 0111
MSB LSB
0 x 1E 3C1F
0001 1110 0011 1100 0001 1111
MSB LSB
Bit Number:
0123
0001 Full Format 4:3
1000 Box 14:9 Center
0100 Box 14:9 Top
1101 Box 16:9 Center
0010 Box 16:9 Top
1011 Box > 16:9 Center
0111 Full Format 4:3,
Center shoot and
protect 14:9
1110 Full Format 16:9,
anamorphic
b3 = Odd Parity Bit
