In place of the start of a program (date and time), several special codes may also be
transmitted.
At present the following codes are available:
•
Recording inhibit code:
indicates program not worth recording (for example test pattern).
•
Interruption code:
marks desired and undesired program interruptions.
•
Timer control code:
indicates that in spite of available data line no valid Programme Labels
are transmitted.
Details and Data Format of the VPS Data Line is shown in Table 5-9.
The contents of VPS data sets 1 to 4 can be changed by the user. VPS data sets 5 to 9
have fixed data and are not programmable.
Operating
Switching on the VPS Signal
The VPS signal generated in TV line 16 is available with 625 line systems.
•
Select the
digital
menu.
•
Press the
edit
key (F3 softkey).
The complete VPS data sets are shown.
•
Select the wanted VPS data set by the
ê
key (F2 softkey), for example,
Data Set 7
.
•
Press the
enter
key (F5 softkey).
VPS Data Set 7 is switched on. The instrument returns to the
digital
menu.

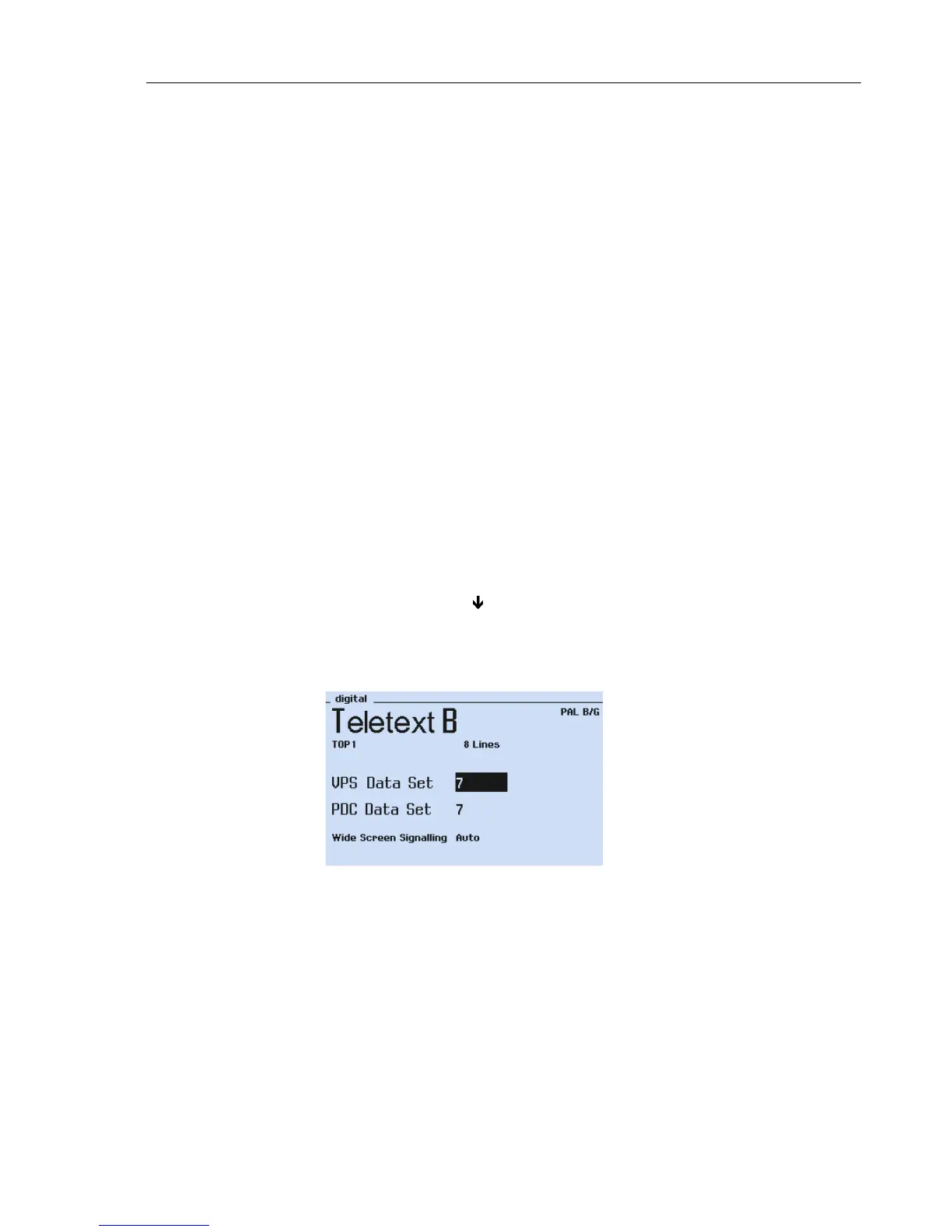

Figure 5-22. Digital Menu, VPS Selection
