Fluke 54200 - Sound Part

54200
Users Manual
8-8
Sound Part
Analog Mono
Procedure
:
•
Remove the Y/C cable.
•
Connect the RF OUT of the TV Signal Generator to the antenna input of the TV.
•
Set the TV to antenna input.
•
Load the default settings of the generator with
RECALL 0
.
•
Press the
enter
softkey (F5) to return to the
main
menu.
•
Depending on the sound system you want to check, select the appropriate sound
settings using the Pre-defined Country List in the
standard
submenu:
Germany
for
FM Germany
(Mono and Analog Stereo for PAL B/G)
Czech. Republic
for
FM A2
(Mono and Analog Stereo for PAL D/K)
•
Press the
enter
softkey (F5) to confirm your setting and to return to the
main
menu.
•
Select the
sound
submenu with the
sound
softkey (F3).

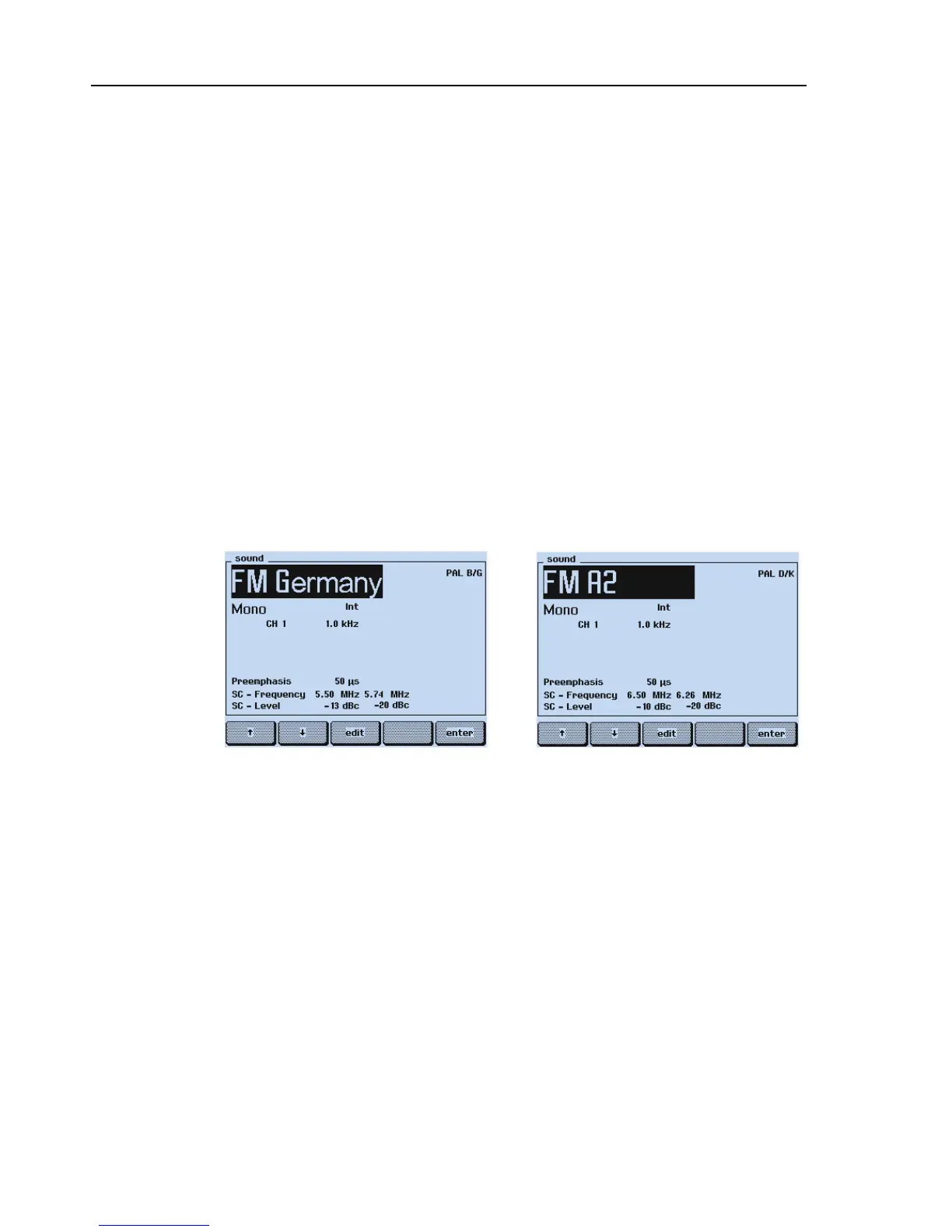

The display shows:
or
Figure 8-4. Sound Settings
Test Result Requirement:
The TV reproduces a sound with 1 kHz modulation in both channels.
•
Press the
CH1
key longer than one second and select
3.0 kHz
in the popup menu.
•
Press the
enter
softkey (F5) to confirm the setting and to return to the
main
menu.
The TV reproduces a sound with 3 kHz modulation in both channels.
