Sound Part
NICAM L Mono
Procedure:
•
Remove the Y/C cable.
•
Connect the RF OUT of the TV Signal Generator to the antenna input of the TV.
•
Set the TV to antenna input.
•
Load the default settings of the generator with
RECALL 0
.
•
Press the
standard
softkey (F1) in the
main
menu.
•
Press the
edit
softkey (F3) and select country
France
in the popup menu with the
Pre-defined Country List to set the instrument to
SECAM L
.
•
Press the
enter
softkey (F5) to confirm the setting and to return to the
main
menu.
•
Select the
sound
submenu with the
sound
softkey (F3).
The display shows:

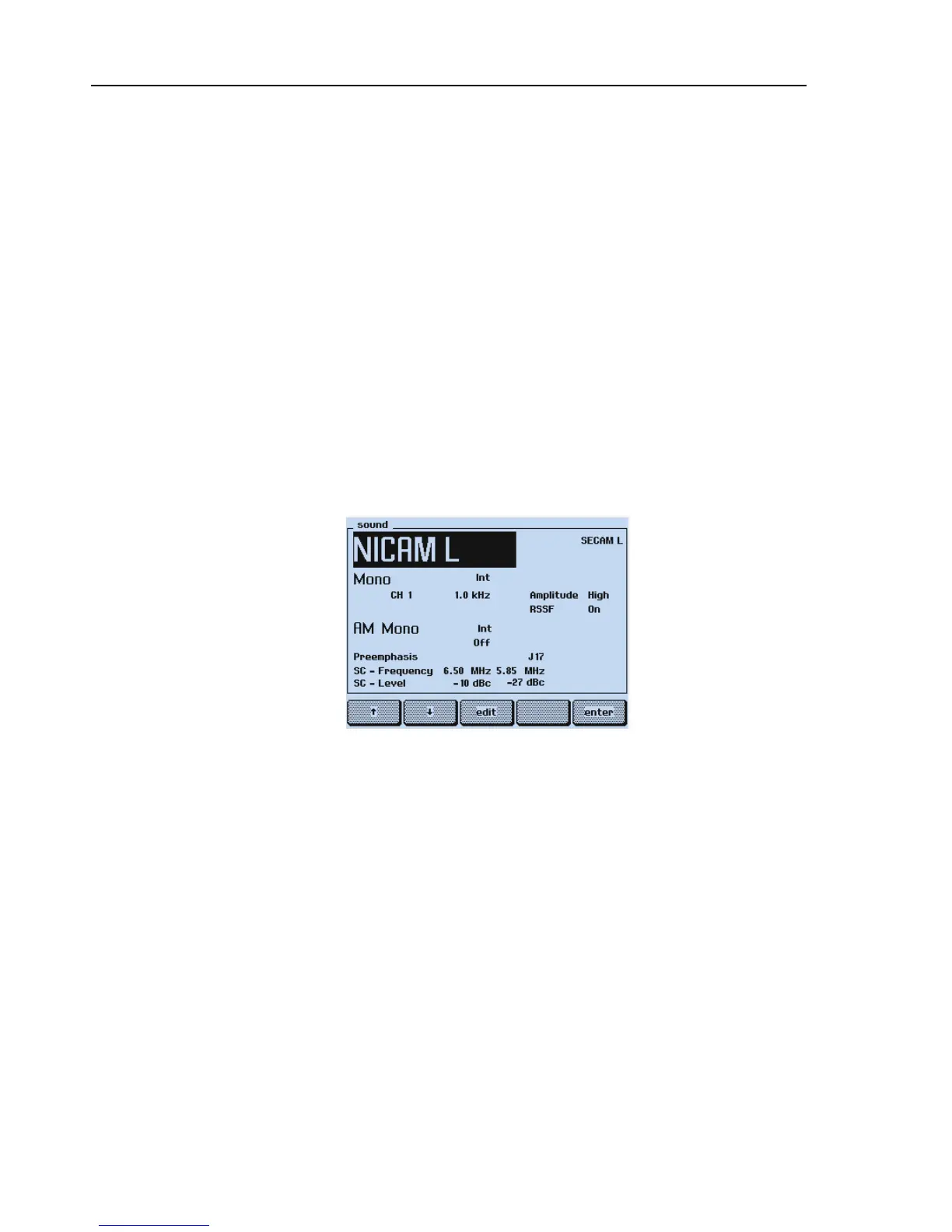

Figure 8-24. Sound Settings, NICAM L
Test Result Requirement:
The TV reproduces a sound with 1 kHz modulation in both channels.
•
Press the
CH1
key longer than one second and select
3.0 kHz
in the popup menu.
•
Press the
enter
softkey (F5) to confirm the setting.
The TV reproduces a sound with 3 kHz modulation in both channels.
