54200
Users Manual
5-64
Synchronization Outputs and Triggering
For synchronization of TV equipment or triggering purpose, for example, the time base
of oscilloscopes or waveform monitors 54200 offers different synchronization signals at
the rear:
•
Composite sync output COMP, 2 V pp into 75
Ω
•
Line sync output LINE, 2 V pp into 75
Ω
•
Field sync output FIELD, 2 V pp into 75
Ω
The timing of the synchronization signals are automatically matched to 625 or 525 line
systems.
An
RGB sync
is selectable for the single
RGB OUT
connectors at the rear or can be
switched off. Select the RGB sync in the
RGB Sync.
popup menu.

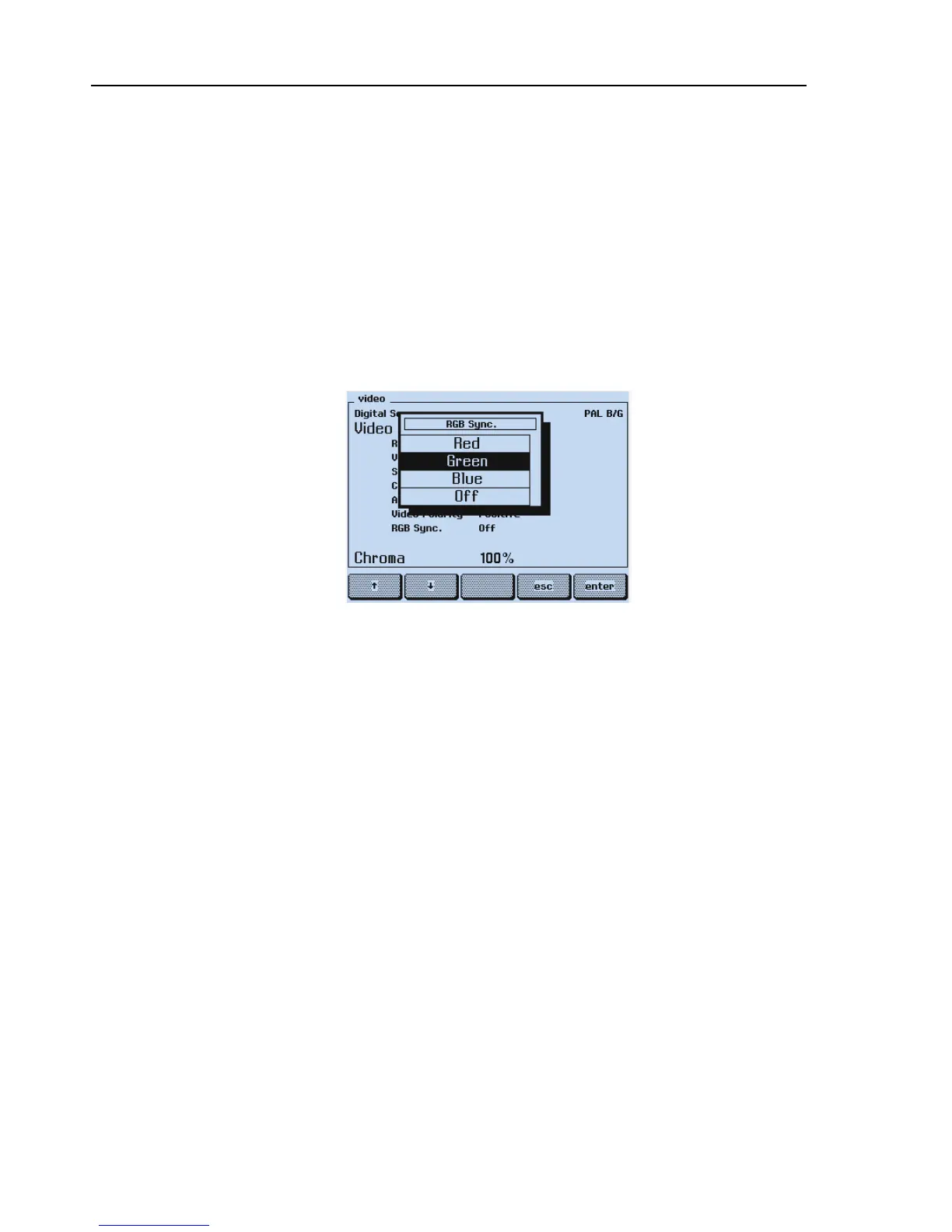

Figure 5-42. RGB Sync Selection
