Fluke 54200 - Video Amplitude Setting

54200
Users Manual
4-22
You can select the stepping function for the:
−
Vision carrier frequency
−
Vision carrier level / amplitude
−
Video amplitude
−
Chroma amplitude
You cannot select more than one parameter for the stepping function at the same time.
Video Amplitude Setting
You can directly key in a certain value for the video amplitude using the numerical
keypad or you can change the amplitude stepwise with
▲
and
▼
step keys, if the step
function is selected for the video amplitude, see Section ‘Step Function.’
Numerical Input
•
Select the
video
submenu from the
main
screen.

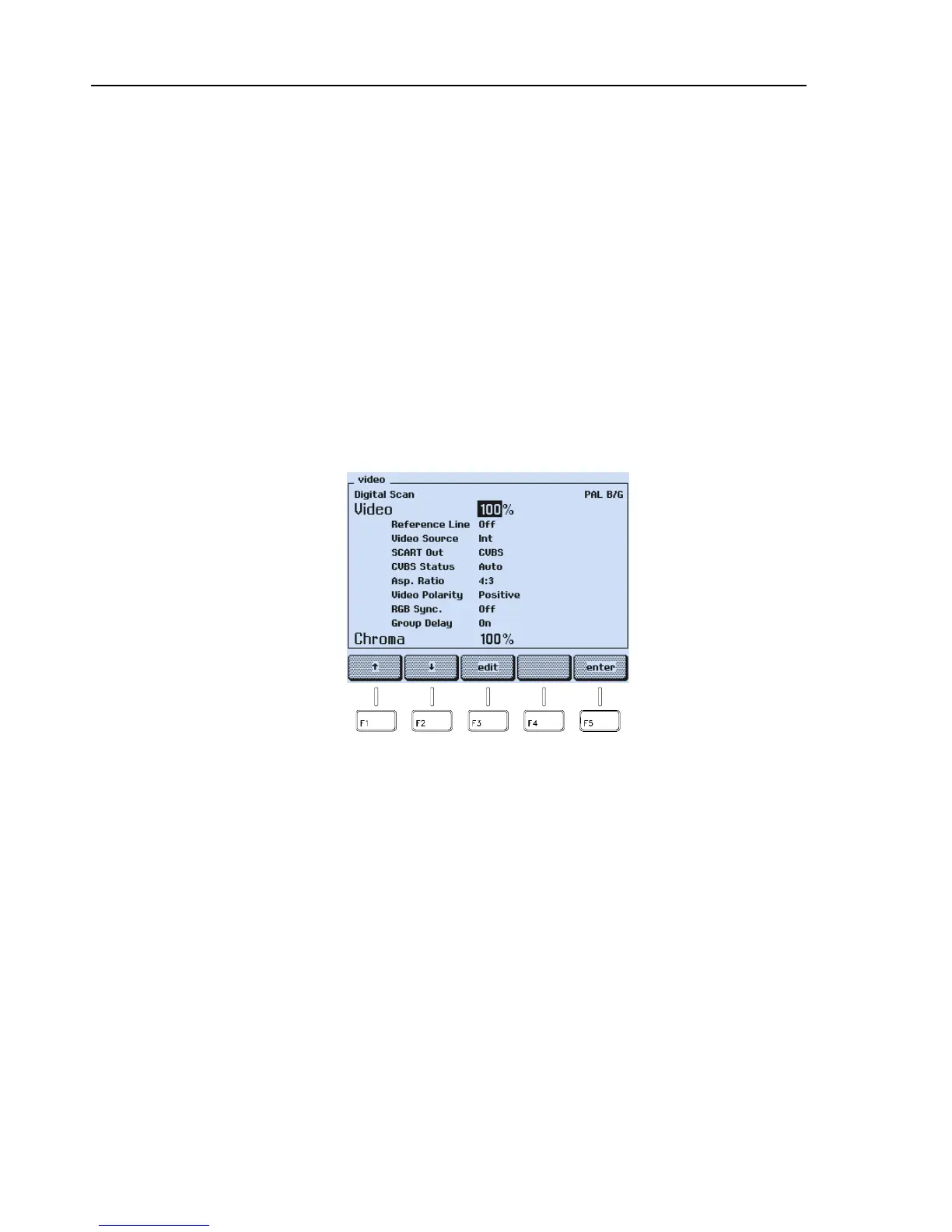

Figure 4-36. Video Amplitude Setting
•
Press the
edit
softkey (F3).
•
A popup menu for numerical input appears.
•
Key in the requested value, for example
,
1 2 0
using the numerical keypad. You can
also directly key in the value without pressing the
edit
softkey (F3).
•
Keyed in digits can be erased with the
rubout
softkey (F2).
