How to Use the Instrument
Operating via Keyboard
4
4-23

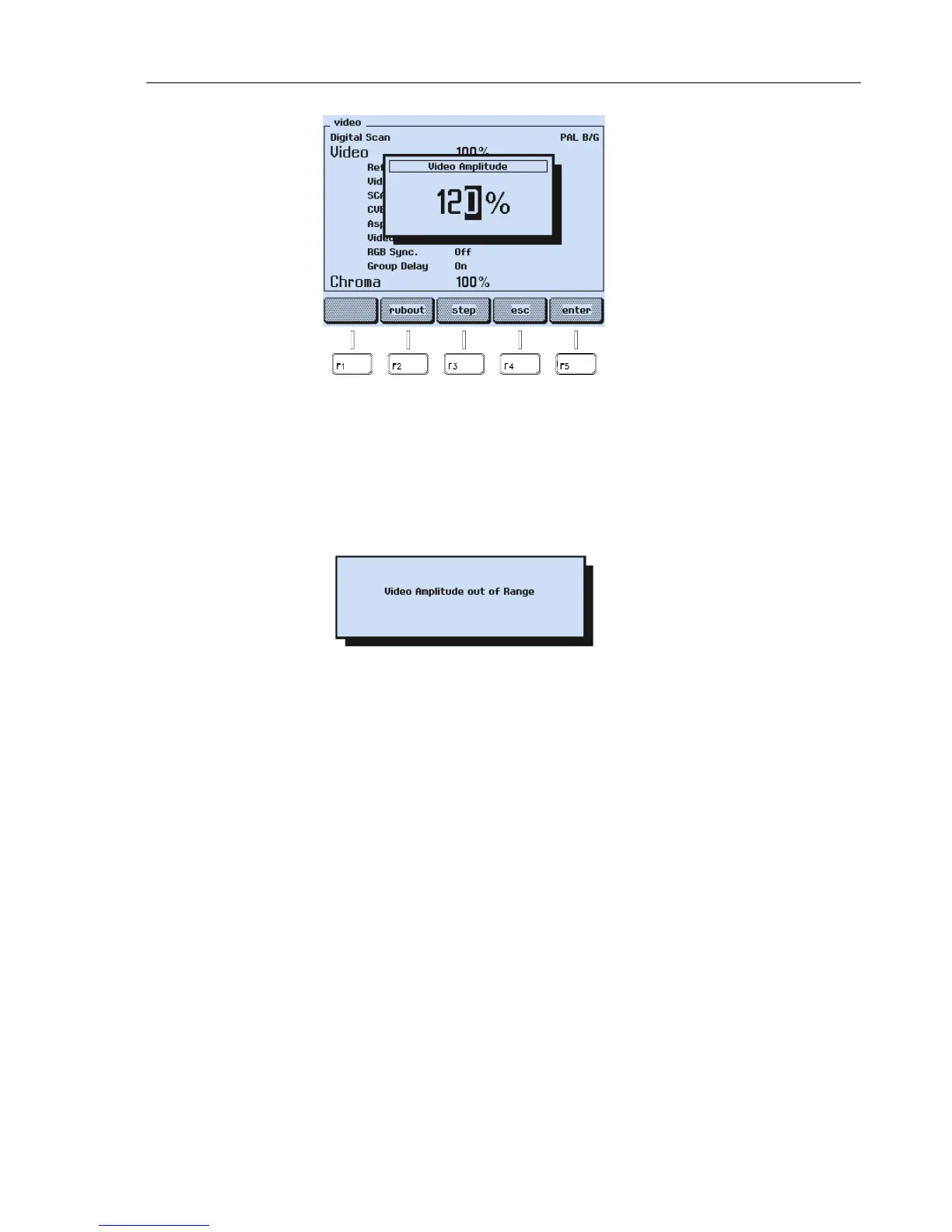

Figure 4-37. Value Input for the Video Amplitude
•
If you want to skip your input, press the
esc
softkey (F4).
•
Press the
enter
softkey (F5) to confirm your input.
If you key in a value >150%, the display shows the message:
Figure 4-38. Video Amplitude Out of Range Message
•
Press the
enter
softkey (F5) for acknowledgment. The instrument returns to the last
setting.
•
Press the
edit
softkey (F3).
•
Key in a value <150 using the numerical keypad.
•
Press the
enter
softkey (F5) to confirm your input.
