Fluke 54200 - Rear Panel

54200
Users Manual
3-16

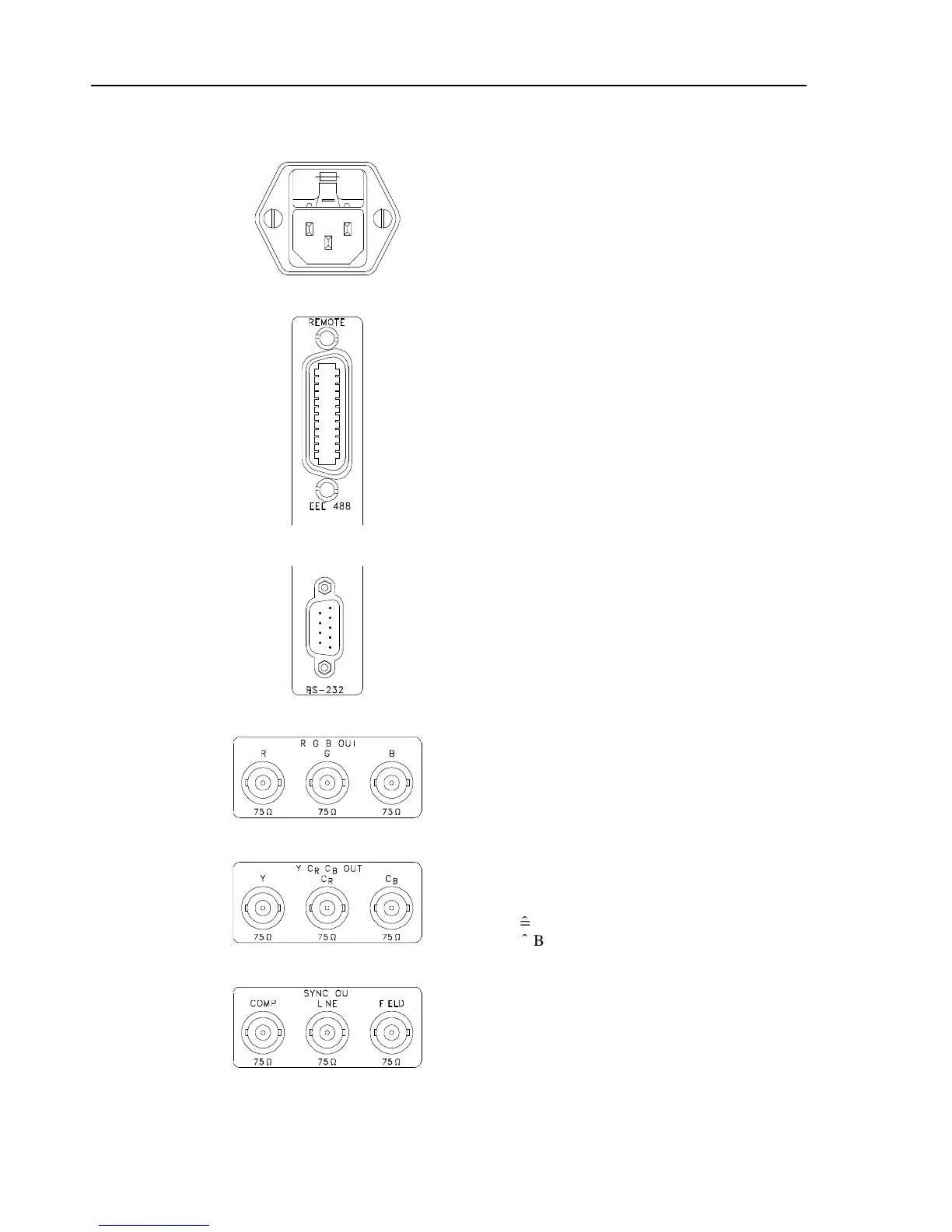

Rear Panel
Input power module with fuses.
For details, see Chapter 1,
Power Cable, Line Voltage Range, and Fuses.
IEEE-488 bus connector for remote control.
RS-232 connector for remote control.
R G B output (75
Ω
), 3 BNC connectors:
Red, Green, and Blue signals.
Video component output Y/C
R
/C
B
(75
Ω
),
3 BNC connectors:
- Y = Y components including Teletext
- C
$ =
R
−
Y components
- C
B
$ =
B
−
Y components
Synchronization outputs (75
Ω
),
3 BNC connectors:
- COMP = Composite sync
- LINE = Line sync
- FIELD = Field sync
