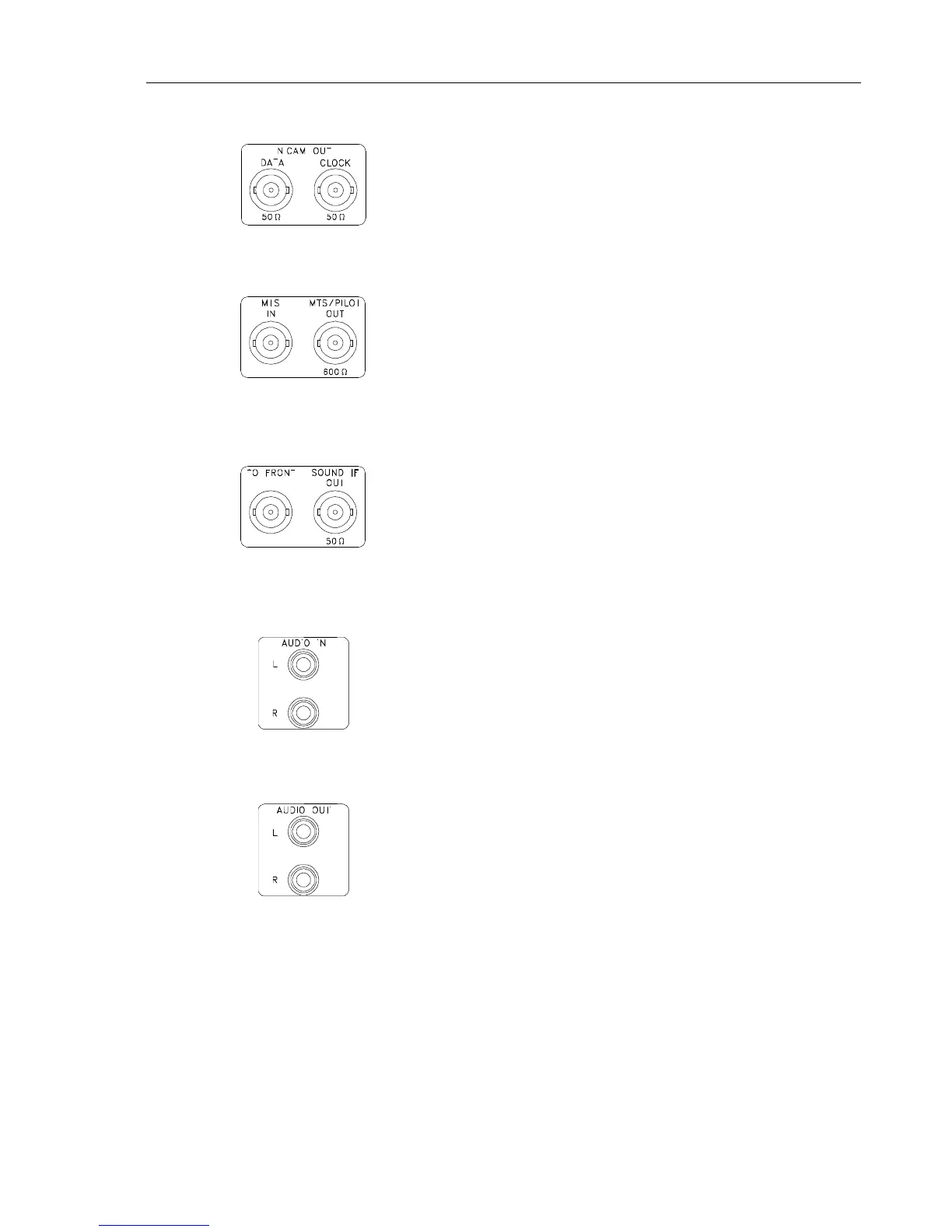

Output of NICAM sound (50
Ω
),
2 BNC connectors:
- DATA = NICAM Data
- CLOCK = NICAM Clock
MTS IN:
MTS multiplex input for the BTSC baseband
signal (0.1 M
Ω
), BNC connector.
MTS/PILOT OUT:
Output of BTSC baseband signal and output of
FM Stereo pilot signal (600
Ω
),
BNC connector.
SOUND IF OUT:
Output of modulated IF sound carrier signal
(50
Ω
), BNC connector.
TO FRONT:
Feedthrough capability from or to the
TO REAR BNC connector at the front panel.
Audio input for external audio signals
(0.1 M
Ω
), 2 Cinch connectors:
- Left = audio channel 1
- Right = audio channel 2
Audio output of internal generated or external
supplied audio signals (600
Ω
),
2 Cinch connectors:
- Left = audio channel 1
- Right = audio channel 2
