Fluke 54200 - Page 66

54200
Users Manual
3-18

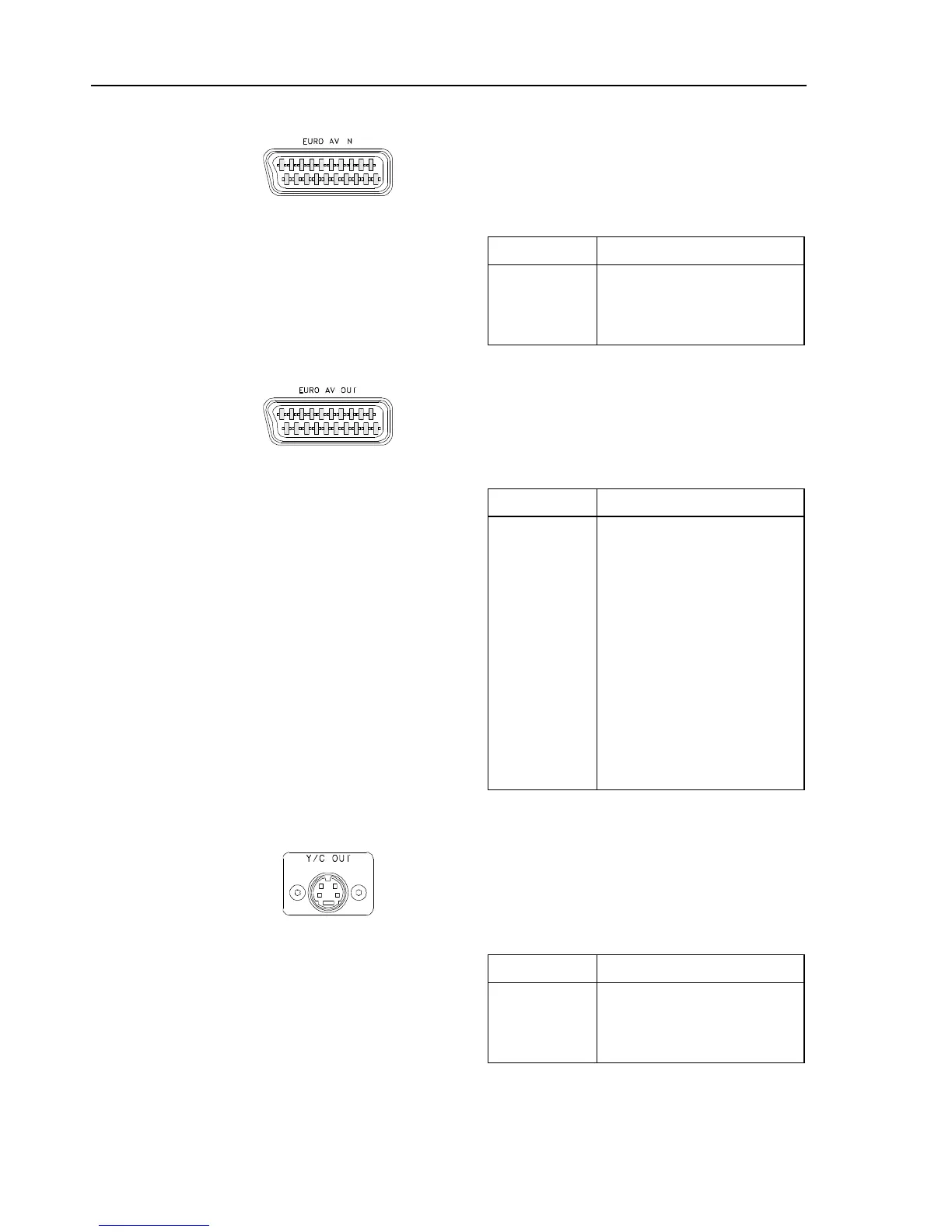

Audio/Video input, SCART/Euro-AV connector,
standard connection for TV and video systems.
Table 3-1. EURO AV IN
Pin Signal
2
6
20
4, 18, 21
Audio channel 2, right
Audio channel 1, left
CVBS input
Ground
Audio/Video output, SCART/Euro-AV
connector, standard connection for TV and video
systems.
Table 3-2. EURO AV OUT
Pin Signal
1
3
7
8
11
15*
16
19*
4,5,9,13
17,18,21
Audio channel 2, right, S2/S3
Audio channel 1, left, S1/S3
RGB output, blue component
CVBS status
RGB output, green component
RGB output, red component
Y/C output ON:
C signal (chroma part of CVBS)
RGB status
CVBS output:
RGB ON: CVBS for sync
Y/C ON:
Y signal (luma part of CVBS)
Ground
Ground
*outputs are selectable between RGB or Y/C mode
Y/C output (75
Ω
), S-connector 4 pins.
Table 3-3. Y/C OUT
Pin Signal
1
2
3
4
Y ground
C ground
Y signal, luma
C signal, chroma
