Test Result Requirement:
The TV shows the following pattern and reproduces a sound with 1 kHz modulation:

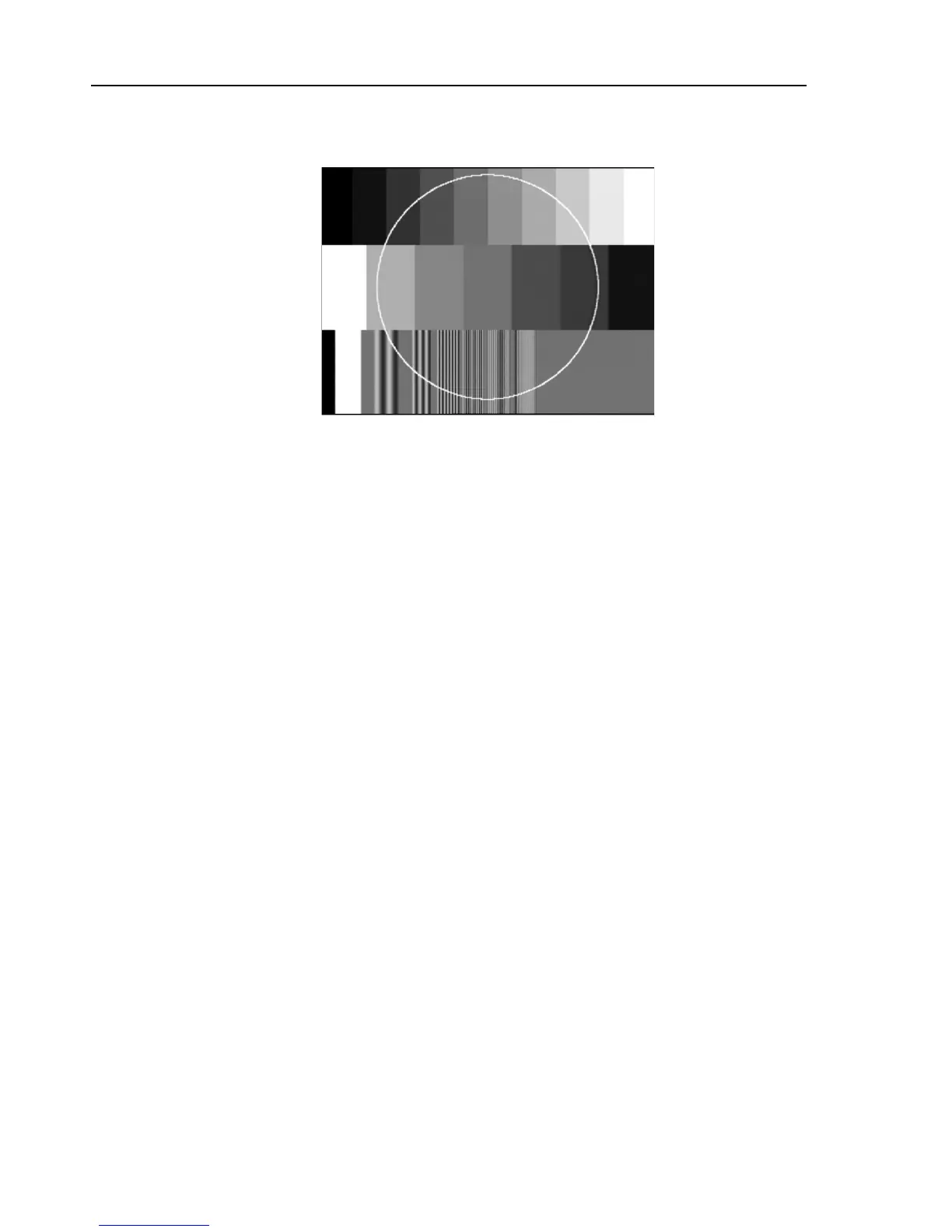

Figure 8-13. Combined Test Pattern NTSC
The complete pattern is only shown by professional TV monitors. Common TV receivers
do not show the edges of the pattern.
For details about the test patterns, see Chapter 4, 'Description and Application of Test
Patterns.'
•
Press the
CHROMA ON/OFF
key.
The TV shows the Color Bar in the middle of the screen in grey.
•
Select
Aspect Ratio 16:9
using the
video
submenu.
The TV shows an ellipse instead of the circle and four additional ellipses in the
corners of the screen. Select Aspect Ratio 16:9 on your TV. The TV now shows
geometrical circles.
