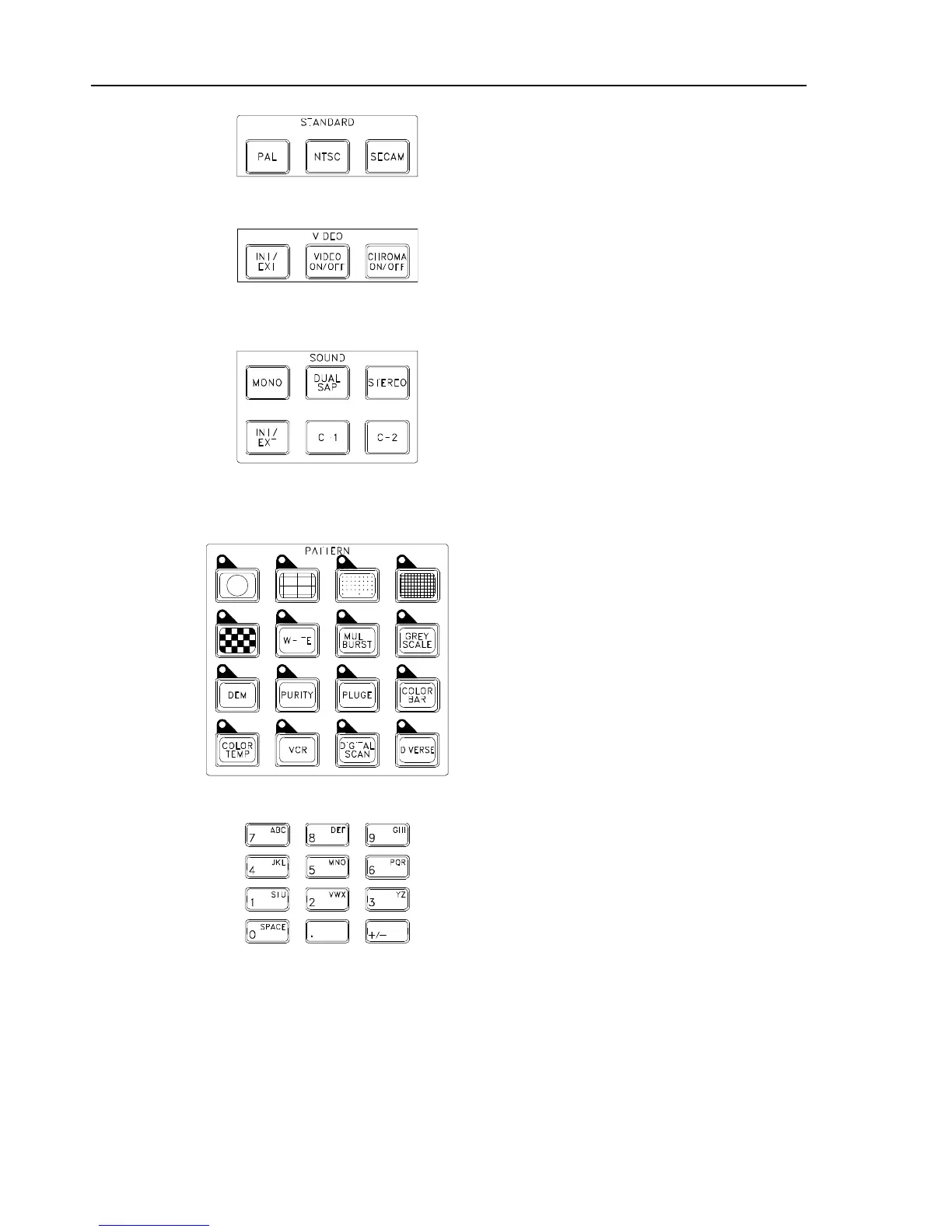

Keys used to select:
TV systems PAL, NTSC, or SECAM.
Keys used to select:
- Internal or external video modulation
- Video signal ON/OFF
- Chroma signal ON/OFF
Keys used to select:
- Sound modes
- MONO, DUAL or SAP, STEREO
- (SAP = Second Audio Program for
BTSC Sound).
- Internal or external sound modulation
- Sound channel 1 and 2 resp. left/right
- ON/OFF.
- Press long to popup audio frequencies:
- CH1 calls up the S1or S3 Modulation menu,
- CH2 calls up the S2 Modulation menu.
16 keys used to select single or combined
video test patterns.
LEDs above the keys indicate the current
on/off status.
Some keys: press long to popup parameters or
versions of patterns.
Keys used to input:
- Digits for frequency, levels, etc.
- Characters in text mode, for example, VPS or
- PDC program titles.
