How to Use the Instrument
Operating via Keyboard
4
4-27
•
A popup menu for numerical input appears.
•
Key in the requested value, for example
,
1 1 0
. You can also directly key in the value
without pressing the
edit
softkey (F3).
•
Keyed in digits can be erased with the
rubout
softkey (F2).

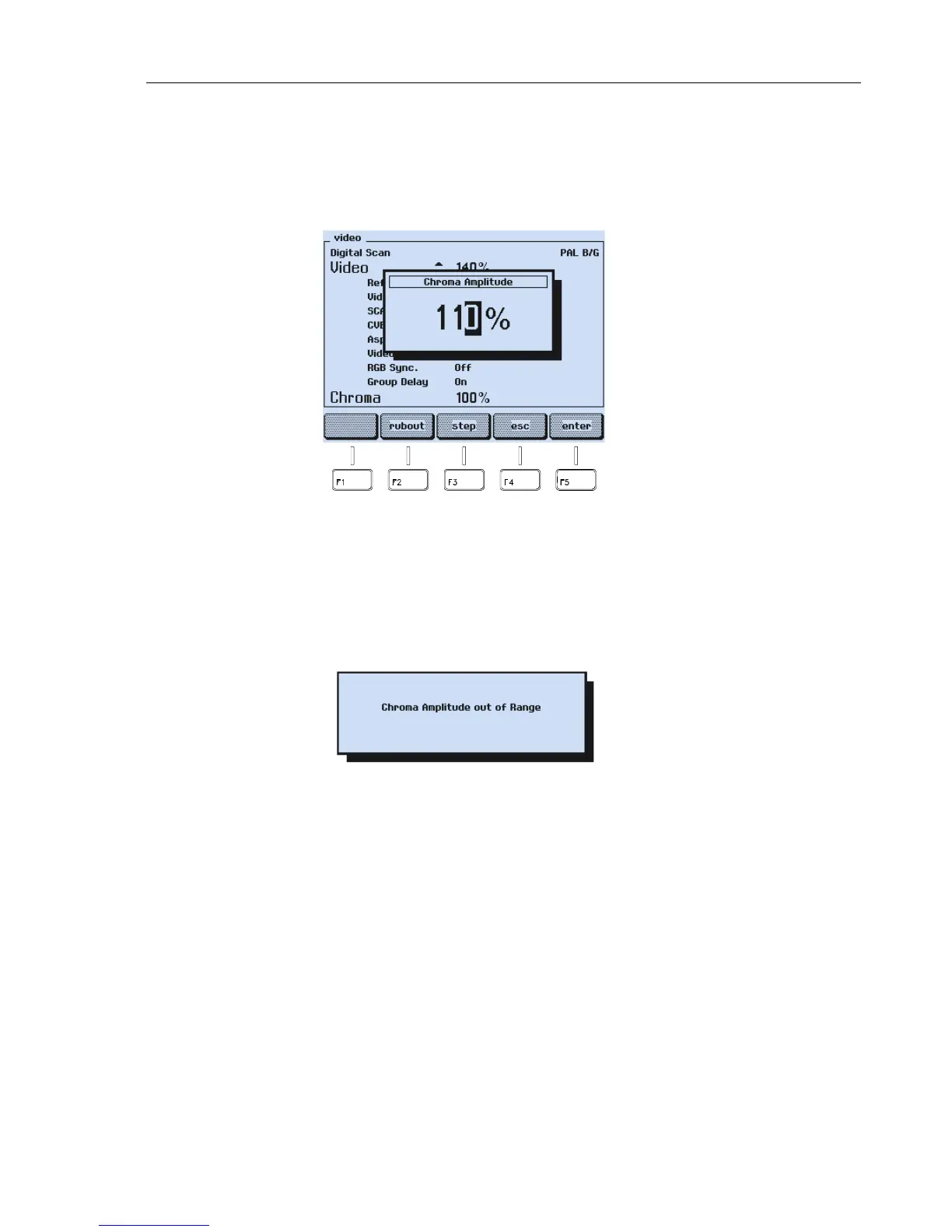

Figure 4-44. Value Input for the Chroma Amplitude
•
If you want to skip your input, press the
esc
softkey (F4).
•
Press the
enter
softkey (F5) to confirm your input.
If you key in a value >150%, the display shows the message:
Figure 4-45. Chroma Amplitude Out of Range Message
•
Press the
enter
softkey (F5) for acknowledgment. The instrument returns to the last
setting.
•
Press the
edit
softkey (F3).
•
Key in a value <150 using the numerical keypad.
•
Press the
enter
softkey (F5) to confirm your input.
