SWEEPTYPE
• contin, 2 direction
o trig count:
0000001
o
dir:
up done 0

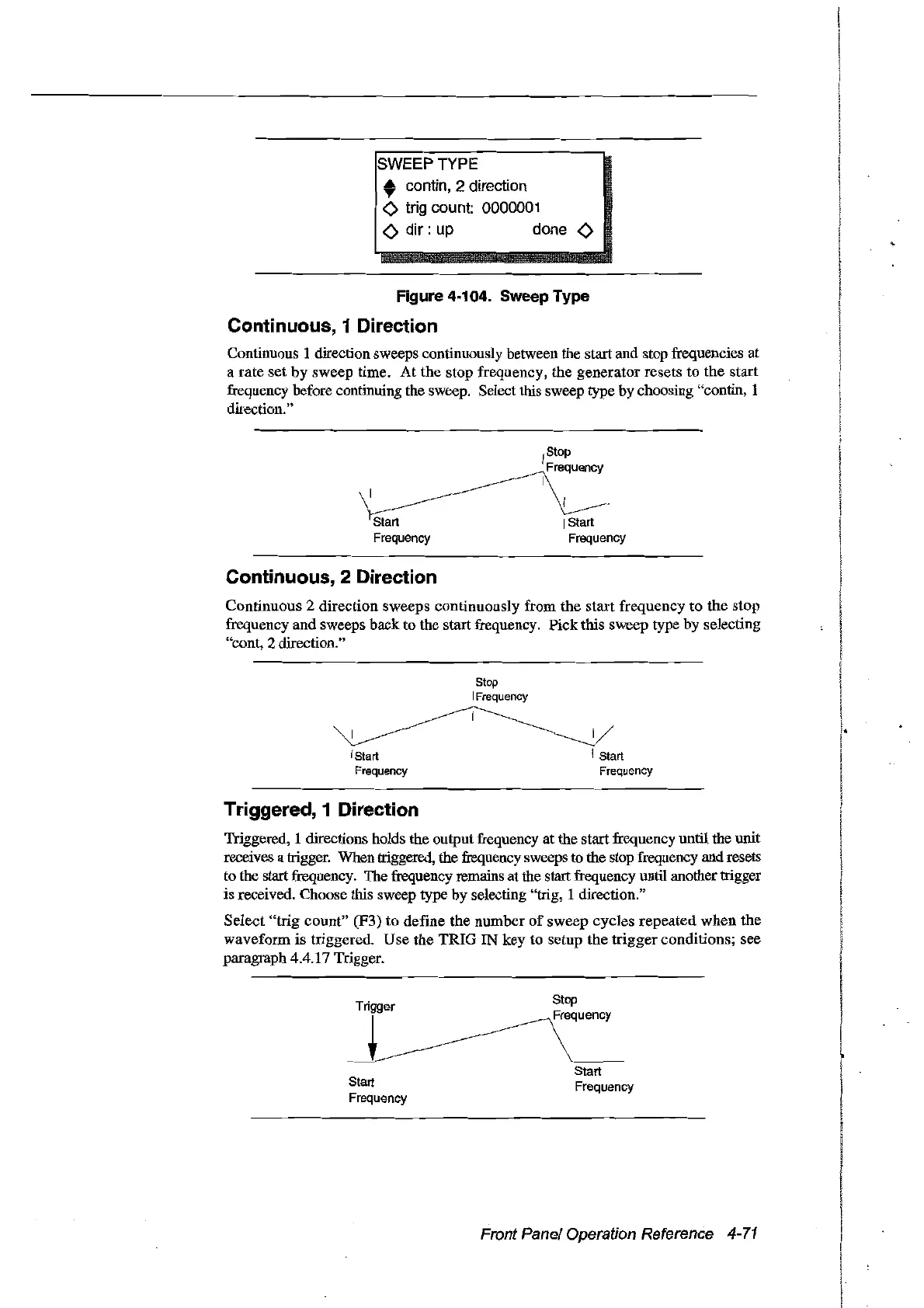

Figure 4·104. Sweep Type
Continuous, 1 Direction
Continuous 1 direction sweeps continuously between the start and stop frequencies at
a rate set
by
sweep time.
At
the stop frequency, the generator resets
to
the
start
frequency before continuing the sweep. Select tms sweep type by choosing "contin, 1
direction."
1Stop
Frequency
1
1
1
Start
Frequency
Continuous, 2 Direction
Continuous 2 direction sweeps continuously from the start frequency to the stop
frequency and sweeps back to the start frequency. Pick tms sweep type by selecting
"cont, 2 direction."
Stop
1Frequency
1
IStart
Frequency
i Start
Frequency
Triggered, 1 Direction
Triggered, 1 directions holds the output frequency
at
the start frequency until the unit
receives a trigger. When triggered, the frequency sweeps to the stop frequency and resets
to the start frequency. The frequency remains at the start frequency until another trigger
is received. Choose this sweep type by selecting "trig, 1 direction."
Select "trig
count"
(F3) to define the number
of
sweep cycles repeated when the
waveform is triggered. Use the TRIG IN key to setup the trigger conditions; see
paragraph 4.4.17 Trigger.
Trigger
_t
Start
Frequency
Stop
Frequency
Start
Frequency
Front Panel Operation Reference 4-71
