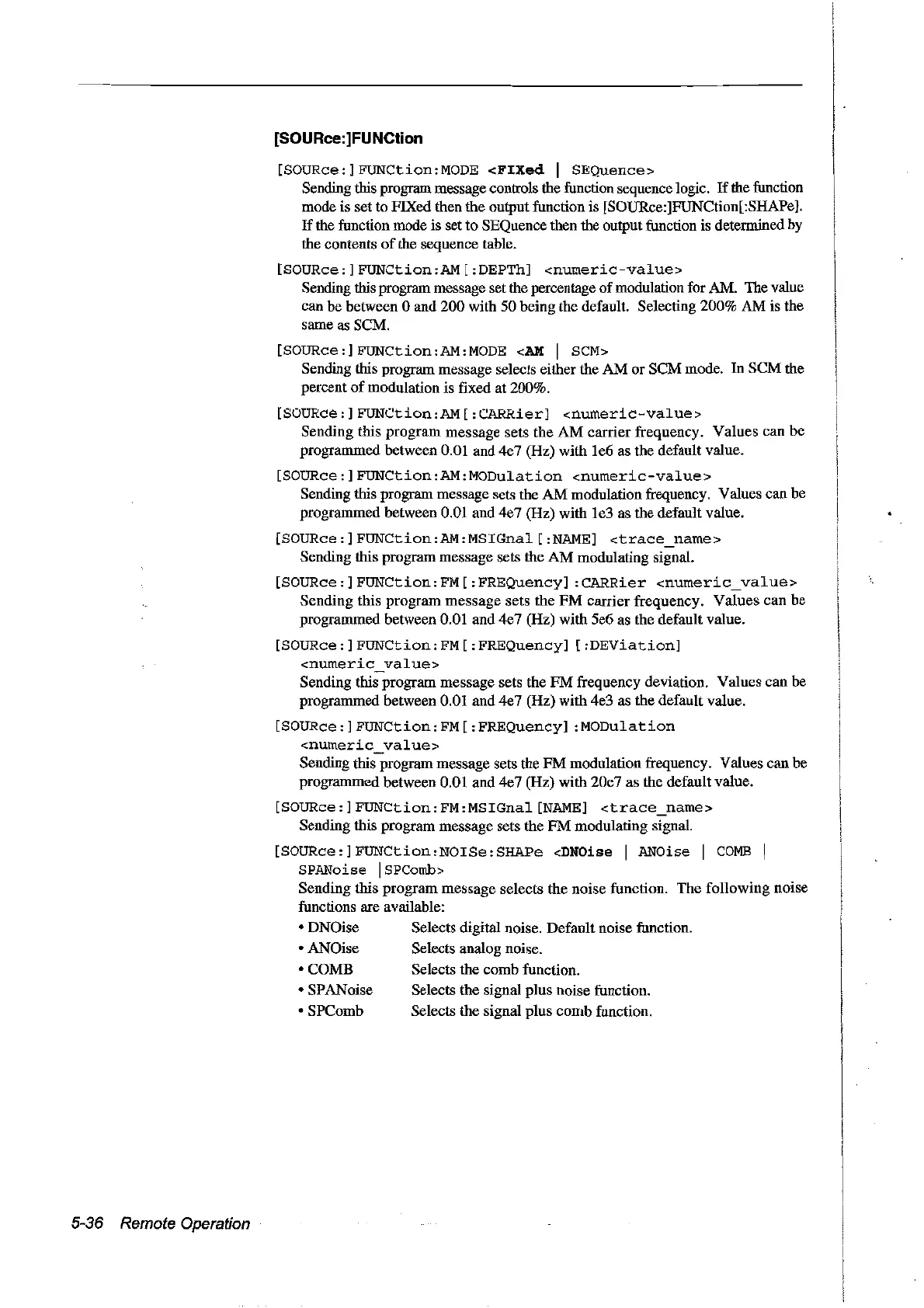

5-36 Remote Operation
[SOURce:]FUNClion
[SOURce:]FUNCtion:MODE
<FIXed
1
SEQuence>
Sending this program message controls the function sequence logic.
If
the function
mode is set to FIXed then the output function is [SOURce:]FUNCtion[:SHAPe].
If
the function mode is set to SEQuence then the output function is detennined by
the contents
of
the sequence table.
[SOURce:]FUNCtion:AM[:DEPTh]
<numeric-value>
Sending this program message set the percentage
of
modulation for AM. The value
can be between 0 and 200 with 50 being the default. Selecting 200% AM is the
sameas SCM.
[SOURce:]FUNCtion:AM:MODE
<AM
1
SCM>
Sending this program message selects either the AM or SCM mode. In SCM the
percent
of
modulation is fixed at 200%.
[SOURce:]FUNCtion:AM[:CARRier]
<numeric-value>
Sending this program message sets the AM carrier frequency. Values can
he
programmed between 0.01 and 4e7 (Hz) with 1e6 as the default value.
[SOURce:]FUNCtion:AM:MODulation
<numeric-value>
Sending this program message sets the AM modulation frequency. Values can he
programmed between 0.01 and 4e7 (Hz) with 1e3 as the default value.
(SOURce:]FUNCtion:AM:MSIGnal[:NAME]
<trace_name>
Sending this program message sets the AM modulating signal.
[SOURce:]FUNCtion:FM[:FREQuency]
:CARRier
<numeric_value>
Sending this program message sets the
FM
carrier frequency. Values can be
programmed hetween 0.01 and 4e7 (Hz) with 5e6 as the default value.
[SOURce:]FUNCtion:FM[:FREQuency]
[:DEViation]
<numeric
value>
Sending this program message sets the FM frequency deviation. Values can he
prograrnmed between 0.01 and 4e7 (Hz) with 4e3 as the default value.
[SOURce:]FUNCtion:FM[:FREQuency]
:MODulation
<numeric
value>
Sending this program message sets the
FM
modulation frequency. Values can
he
prograrnmed between 0.01 and 4e7 (Hz) with 20e7 as the default value.
[SOURce:]FUNCtion:FM:MSIGnal[NAME]
<trace_name>
Sending this program message sets the
FM
modu1ating signal.
[SOURce:]FUNCtion:NOISe:SHAPe
<DNOise 1 ANOise 1
COMB
SPANoise
ISPcornb>
Sending fuis program message selects the noise function. The following noise
functions are available:
• DNOise Selects digital noise. Default noise function.
• ANOise Selects analog noise.
• COMB Selects the comb function.
• SPANoise Selects the signal plus noise function.
• SPComb Selects the signal plus comb function.
