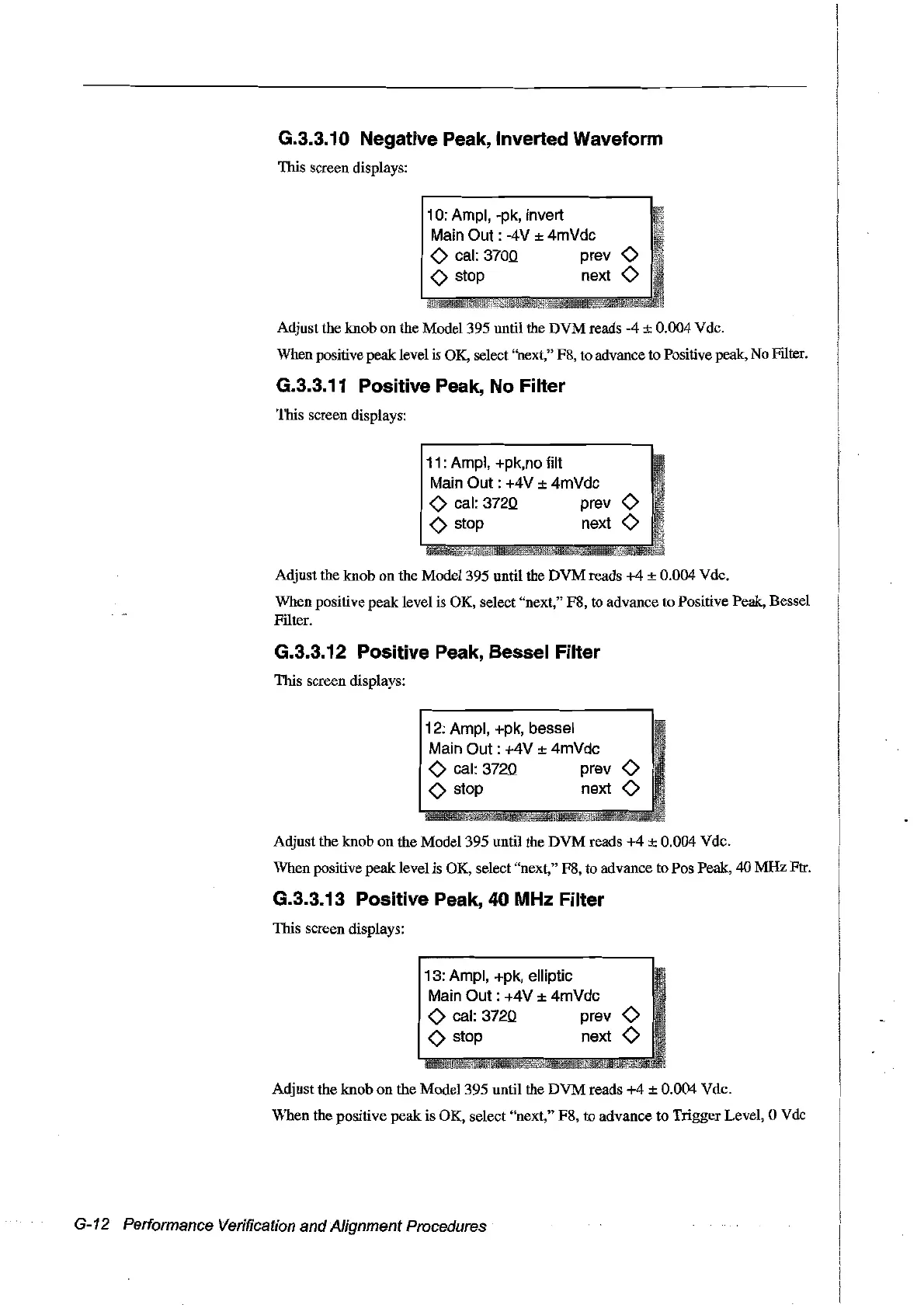

G.3.3.10 Negative Peak, Inverted Waveform
This screen displays:
10:
Ampl,
-pk,
invert
Main
Out:
-4V ± 4mVdc
<>
cal:
3700
prev
<>
<>
stop next
<>
Adjust the knob
on
the
Model395
until the
DVM
reads
-4
± 0.004 Vdc.
When positive peak level
is
OK, select "next," F8, to advance to Positive peak, No Filter.
G.3.3.11 Positive Peak, No Filter
This screen displays:
11: Ampl, +pk,no filt
Main
Out:
+4V ± 4mVdc
<>
cal:
3720
prev
<>
<>
stop next
<>
Adjust the knob
on
the
Model395
until the
DVM
reads +4 ± 0.004 Vdc.
When positive peak level is OK, select "next," F8, to advance
to
Positive Peak, Bessel
Filter.
G.3.3.12 Positive Peak, Bessel Filter
This screen displays:
12:
Ampl, +pk, bessel
Main
Out:
+4V ± 4mVdc
<>
cal:
3720
prev
<>
<>
stop next
<>
Adjust the knob
on
the Model 395 until the
DVM
reads
+4
± 0.004 Vdc.
When positive peak level is OK, select "next," F8, to advance to Pos Peak,
40
MHz Ftr.
G.3.3.13 Positive Peak, 40 MHz Filter
This screen displays:
13:
Ampl, +pk, elliptic
Main
Out:
+4V ± 4mVdc
<>
cal:
3720
prev
<>
<>
stop next
<>
Adjust the knob
on
the
Model395
until the
DVM
reads
+4
± 0.004 Vdc.
When the positive
peak
is OK, select "next," F8, to advance
to
TriggerLevel, 0 Vdc
G-12 Performance Verification
and
Alignment Procedures
