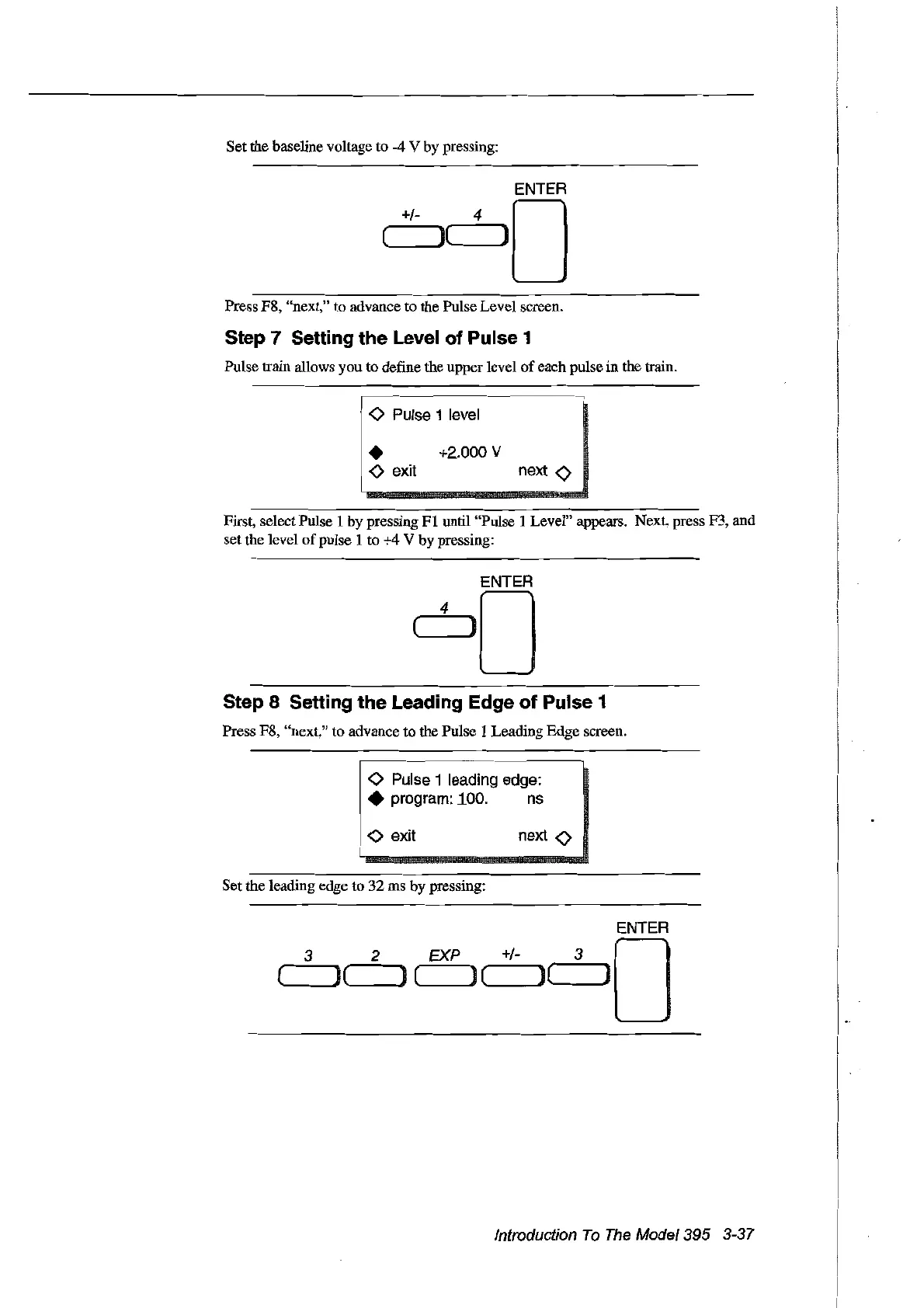

Set
the baseline voltage to -4 V by pressing:
ENTER
+/- 4 0
(
)("-------1]
Press F8, "next," to advance to the Pulse Level screen.
Step 7 Setting the Level of Pulse 1
Pulse train allows you to define the upper level
of
each pulse in the train.
o Pulse 1 level
• +2.000 V
o exit next
'0
First, selectPulse 1 by pressing
FI
until "Pulse 1 Level" appears. Next, press F3, and
set the level
of
pulse 1 to +4 V by pressing:
Step 8 Setting the Leading Edge of Pulse 1
Press F8, "next," to advance to the Pulse 1 Leading Edge screen.
~PUlse
1
leadi~g
edge:
1.
program:
100.
ns
. 0 exit next
'0
Setthe leading edge to
32
ms by pressing:
ENTER
3 2
EXP
+/- 3 0
(
)('-~)
(
Je
)('-~)
Introduction
To
The Model 395 3-37
