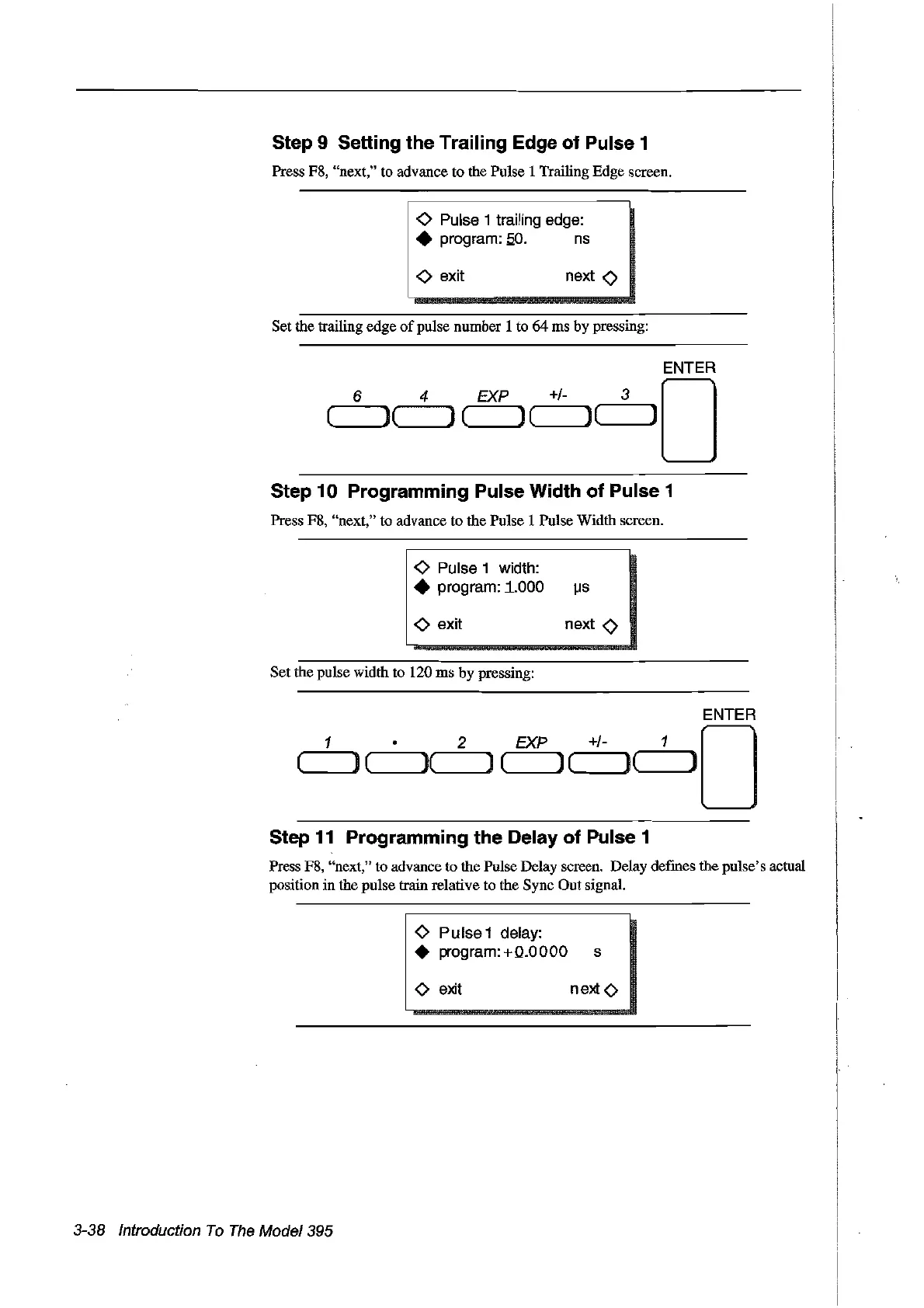

Step 9 Setting the Trailing Edge of Pulse 1
Press F8, "next," to advanee
to
the Pulse 1 Trailing Edge sereen.
<>
Pulse 1 trailing edge:
• program:
5.0.
ns
<>
exit next '0
Set the trailing edge
of
pulse number 1
to
64
ms by pressing:
ENTER
6 4 EXP +/- 3 0
e
le
)e ]
'----.1(------,)
Step 10 Programming Pulse Width of Pulse 1
Press F8, "next," to advance to the Pulse 1 Pulse Width sereen.
<>
Pulse 1 width:
• program:
1.000
IJs
<>
exit next '0
Set the pulse width to 120
ms
by pressing:
ENTER
1 2 EXP +/- 1 0
( )
(,------"le
)( )( )
C'------"]
Step
11
Programming the Delay of Pulse 1
Press F8, "next," to advanee to the Pulse Delay sereen. Delay defines the pulse's aetual
position in the pulse train relative
to
the Syne Out signal.
o Pulse 1 delay:
• program:
+0.0000
s
o
exit
nextO
3-38 Introduction
To
The
Model395
