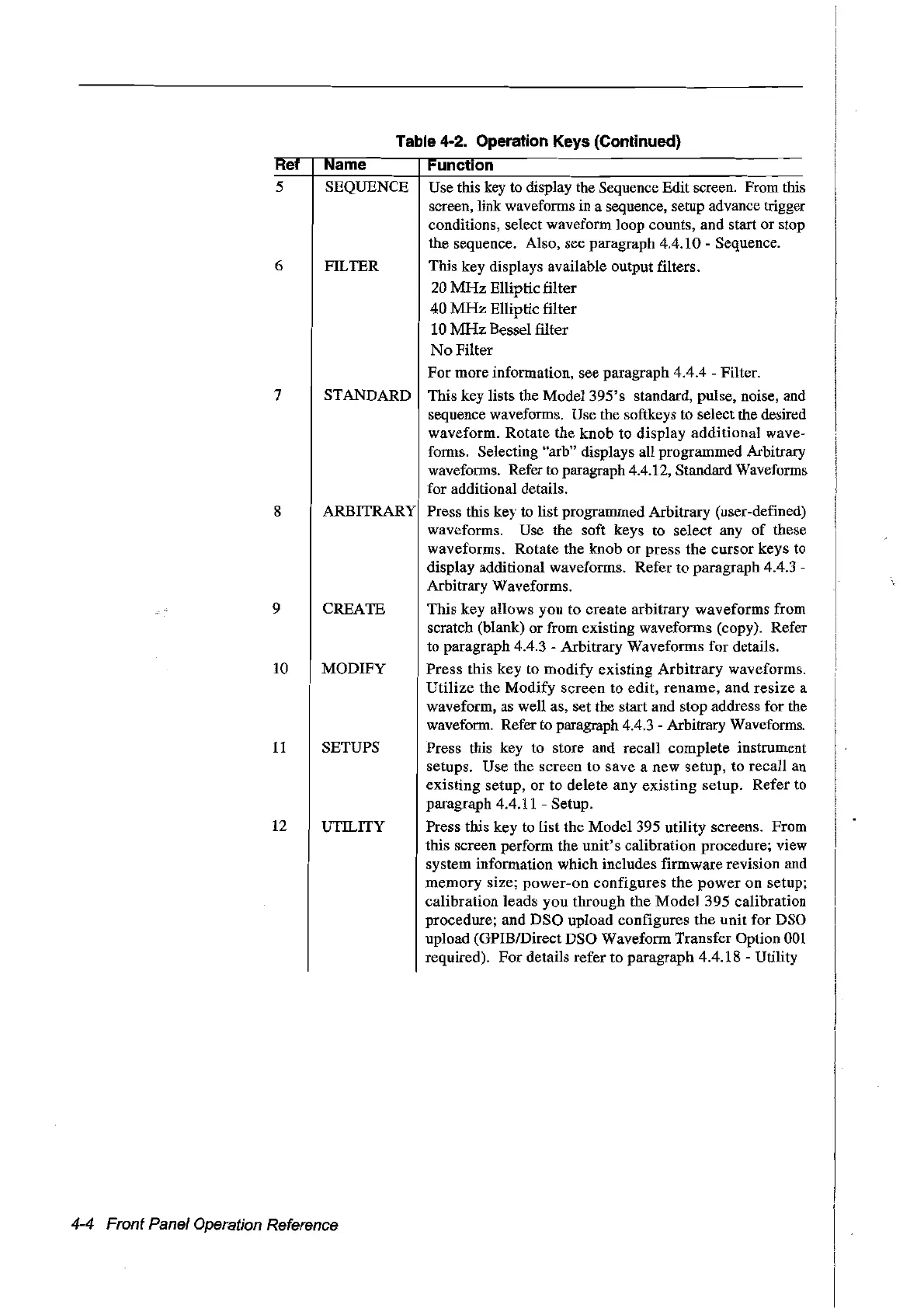

Table 4-2. Operation Keys (Continued)
Ret Name Functlon
5 SEQUENCE Use tbis key to display the Sequence Edit screen. From tbis
screen,
Hnk waveforms in a sequence, setup advance trigger
conditions, select waveform loop counts, and start or stop
the sequence. Also, see paragraph 4.4.10 Sequence.
6 FILTER This key displays available output filters.
20
MHz
Elliptie filter
40
MHz
Elliptie filter
10
MHz
Bessel filter
No
Filter
For more information, see paragraph 4.4.4 Filter.
7 STANDARD This key lists the
Model395's
standard, pulse, noise, and
sequence waveforms. Use the softkeys to select the desiœd
waveform. Rotate the knob to display additional wave-
forms. Selecting "arb" displays aIl programmed Arbitrary
waveforms. Refer
to
paragraph 4.4.12, Standard Waveforms
for additional details.
8 ARBITRARY Press this key
to
list programmed Arbitrary (user-defined)
waveforms. Use the soft keys
to
select any
of
these
waveforms. Rotate the knob or press the cursor keys to
display additional waveforms. Refer to paragraph 4.4.3 -
Arbitrary Waveforms.
9 CREATE This key allows you to create arbitrary waveforms from
scratch (blank) or from existing waveforms (copy). Refer
to paragraph 4.4.3 Arbitrary Waveforms for details.
10
MODIFY Press this key to modify existing Arbitrary waveforms.
Utilize the Modify screen to edit,
rename,
and resize a
waveform, as weIl as, set the start and stop address for the
waveform. Refer
to
paragraph 4.4.3 - Arbitrary Waveforms.
Il
SETUPS Press this key to store and recall complete instrument
setups. Use the screen to save a new setup, to recall
an
existing setup, or to delete any existing setup. Refer
to
paragraph 4.4.11 - Setup.
12
UTILITY Press tbis key to list the Model 395 utility screens. From
this screen perform the
unit's
calibration procedure; view
system information which includes firmware revision and
memory size; power-on configures
the
power
on setup;
calibration leads you through the Model 395 calibration
procedure; and DSO upload configures
the
unit for DSO
upload (GPIBlDirect DSO Waveform Transfer Option
001
required).
For
details refer to paragraph 4.4.18 Utility
4-4 Front Panel Operation Reference
