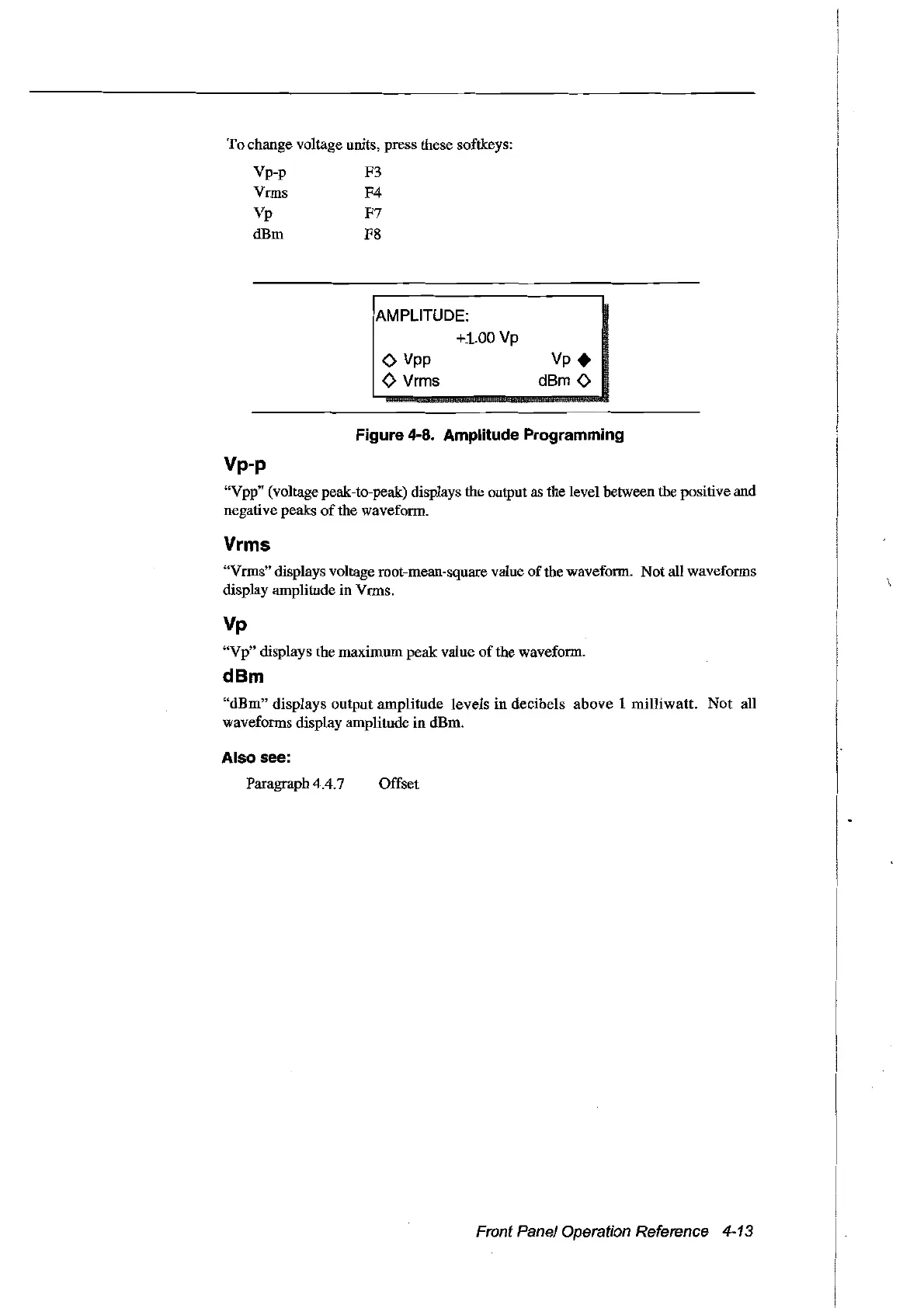

To
change voltage units, press these softkeys:
Vp-p
Vnns
Vp
dBm
F3
F4
F7
F8
AMPLITUDE:
+~.OO
Vp
o Vpp
o
Vrms
Vp.
dBm 0
Figure 4-8. Amplitude Programming
Vp-p
"Vpp" (voltage peak-to-peak) displays the output
as
the level between the positive and
negative peaks
of
the wavefonn.
Vrms
"Vnns"
displays voltage root-mean-square value
of
the wavefonn. Not all wavefonns
display amplitude in
Vnns.
Vp
"Vp"
displays the maximum
peak
value
of
the wavefonn.
dBm
"dBm"
displays
output
amplitude levels in decibels ab
ove
1
milliwatt.
Not
aH
wavefonns display amplitude
in
dBm.
Aiso see:
l?aragraph4.4.7
Offset
Front Panel Operation Reference 4-13
