CHAPTER 14 LIN-UART
14.6 Operations of LIN-UART and LIN-UART
Setting Procedure Example
● Clock supply
In clock synchronous mode (normal), the number of transmit/receive data bits must be equal to
the number of clock cycles. When the start/stop bits are enabled, the number of clock cycles
must be equal to the sum of the transmit/receive data bits and the added start/stop bits.
With the serial clock transmission side having been selected (ECCR:MS = 0), when the serial
clock output is enabled (SMR:SCKE = 1), a synchronous clock is automatically output during
transmission/reception. When the serial clock reception side (ECCR:MS = 1) is selected or the
serial clock output is disabled (SMR:SCKE = 0), clock cycles equal to the number of transmit/
receive data bits must be supplied from an external clock pin.
Keep the clock signal at the mark level ("H") if serial data is not related to transmission/
reception.
● Clock delay
When the SCDE bit in the ECCR register is set to "1", a delayed transmit clock is output as
shown in Figure 14.6-5. This function is required when the device on the reception side
samples data at the rising edge or falling edge of the serial clock.

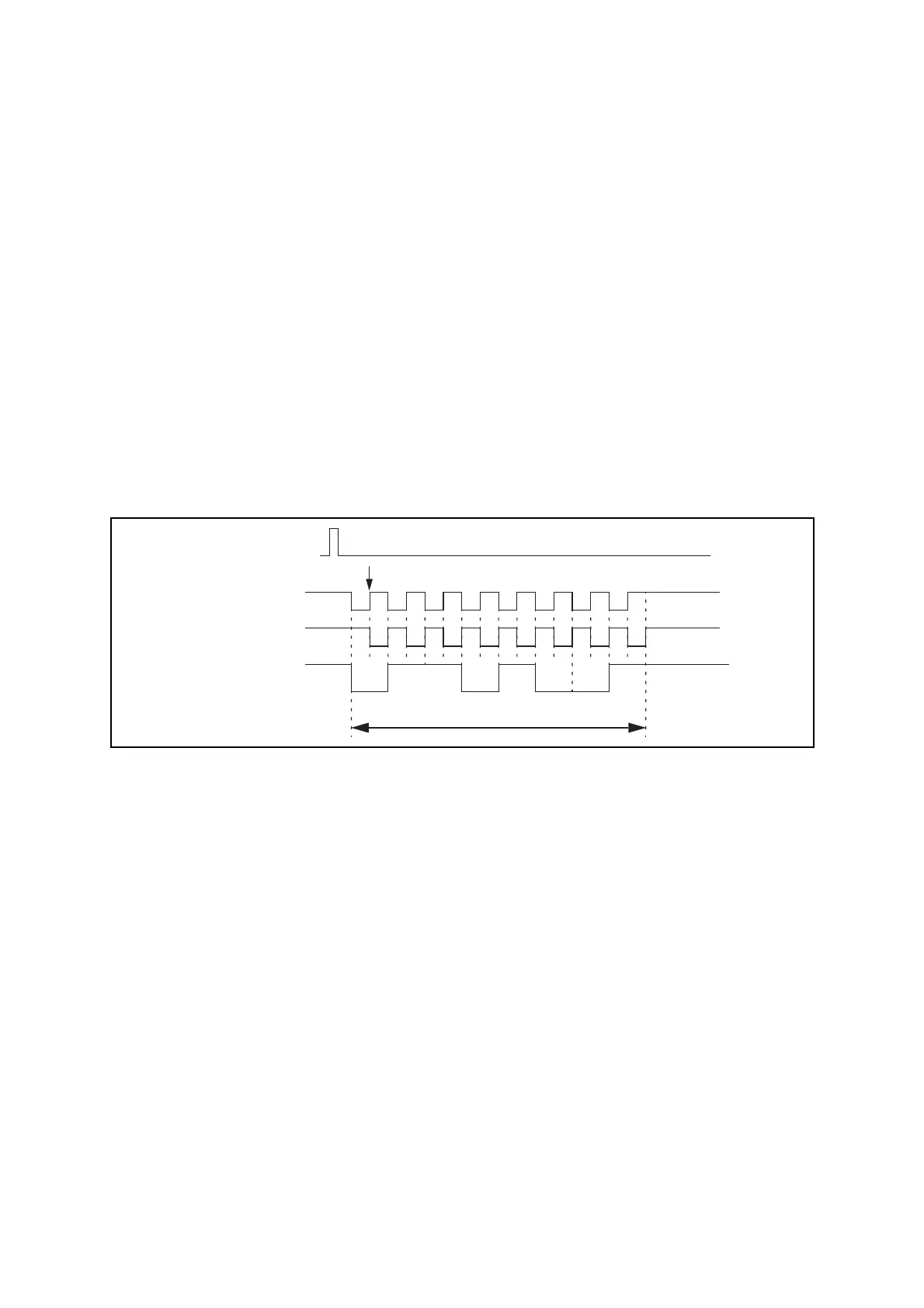

Figure 14.6-5 Transmit Clock Delay (SCDE = 1)
● Clock inversion
When the SCES bit in the LIN-UART extended status register (ESCR) is "1", the LIN-UART
clock is inverted, and receive data is sampled at the falling edge of the LIN-UART clock. At
that time, the value of the serial data must become valid at the edge of the LIN-UART clock.
Write transmit data
Transmit/receive
clock (normal)
Transmit/receive data
1
Data
LSBMSB
Mark level
Transmit clock
(SCDE = 1)
Mark level
Mark level
Receive data sample edge (SCES = 0)
0110100
