CHAPTER 22 UART/SIO
22.6 Operations and Setting Procedure Example
The TDRE bit is set at the point indicated in Figure 22.6-7 or Figure 22.6-8 if the preceding
piece of transmit data does not exist in the transmission shift register.

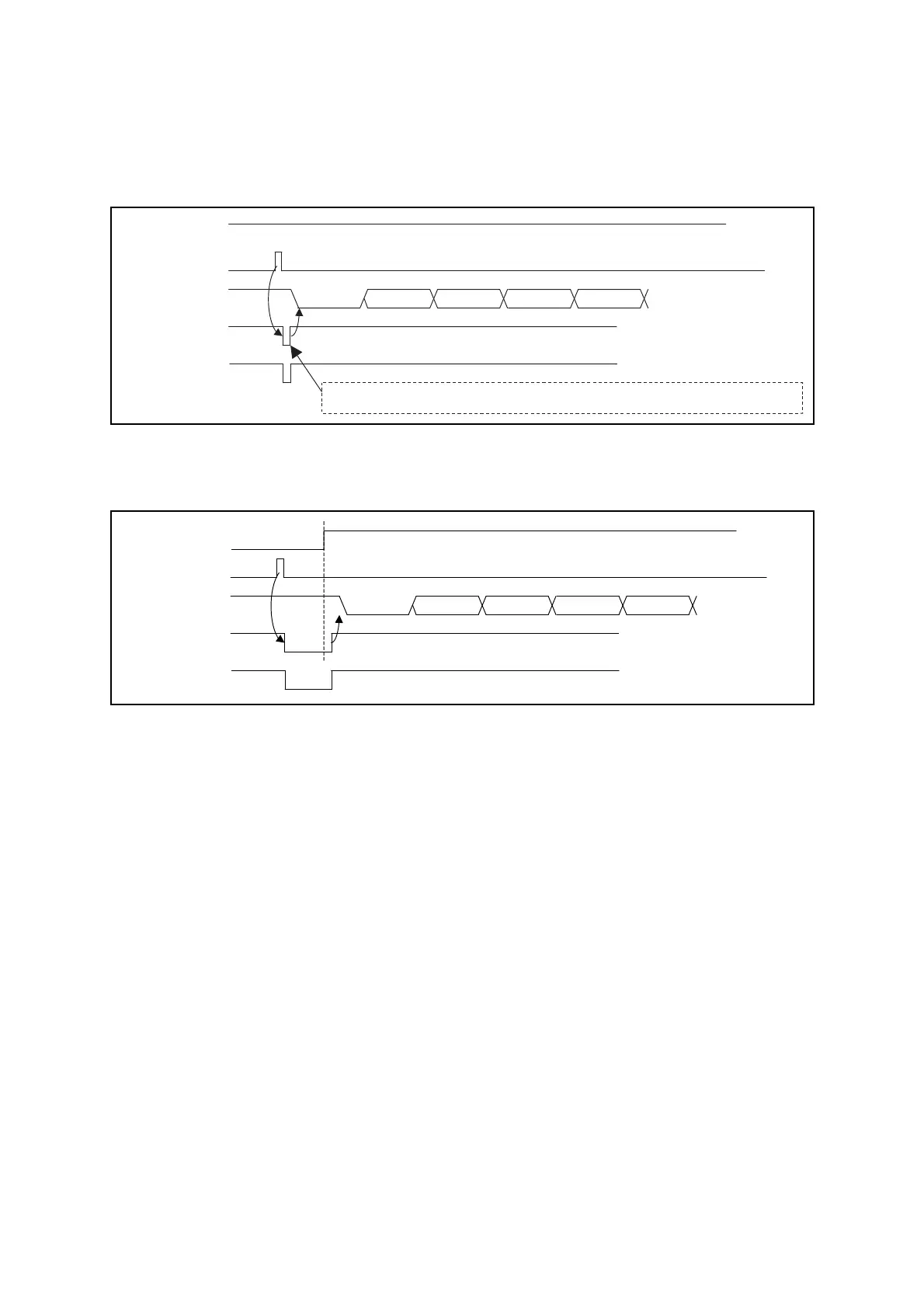

Figure 22.6-7 Setting Timing 1 for Transmit Data Register Empty Flag Bit (TDRE)
(When TXE Is "1")
Figure 22.6-8 Setting Timing 2 for Transmit Data Register Empty Flag Bit (TDRE)
(When TXE Is Switched from "0" to "1")
● Concurrent transmission and reception
In clock asynchronous mode (UART), transmission and reception can be performed
independently. Therefore, transmission and reception can be performed at the same time or
even with transmitting and receiving frames overlapping each other in shifted phases.
UOn
D0 D1
TDRE
Transmit
interrupt
TXE = “1”
Writing of
transmit data
D2 D3
Data transfer from UART/SIO serial output data register ch. n (TDRn) to transmission
shift register is performed in one machine clock (MCLK) cycle.
D0
D1
D2
D3
UOn
TDRE
Transmit
interrupt
TXE
Writing of
transmit data
