Fujitsu 8FX User Manual

MB95630H Series
534 FUJITSU SEMICONDUCTOR LIMITED MN702-00009-2v0-E
CHAPTER 25 EXAMPLE OF SERIAL PROGRAMMING CONNECTION
25.2 Example of Serial Programming
Connection
■ Example of Serial Programming Connection

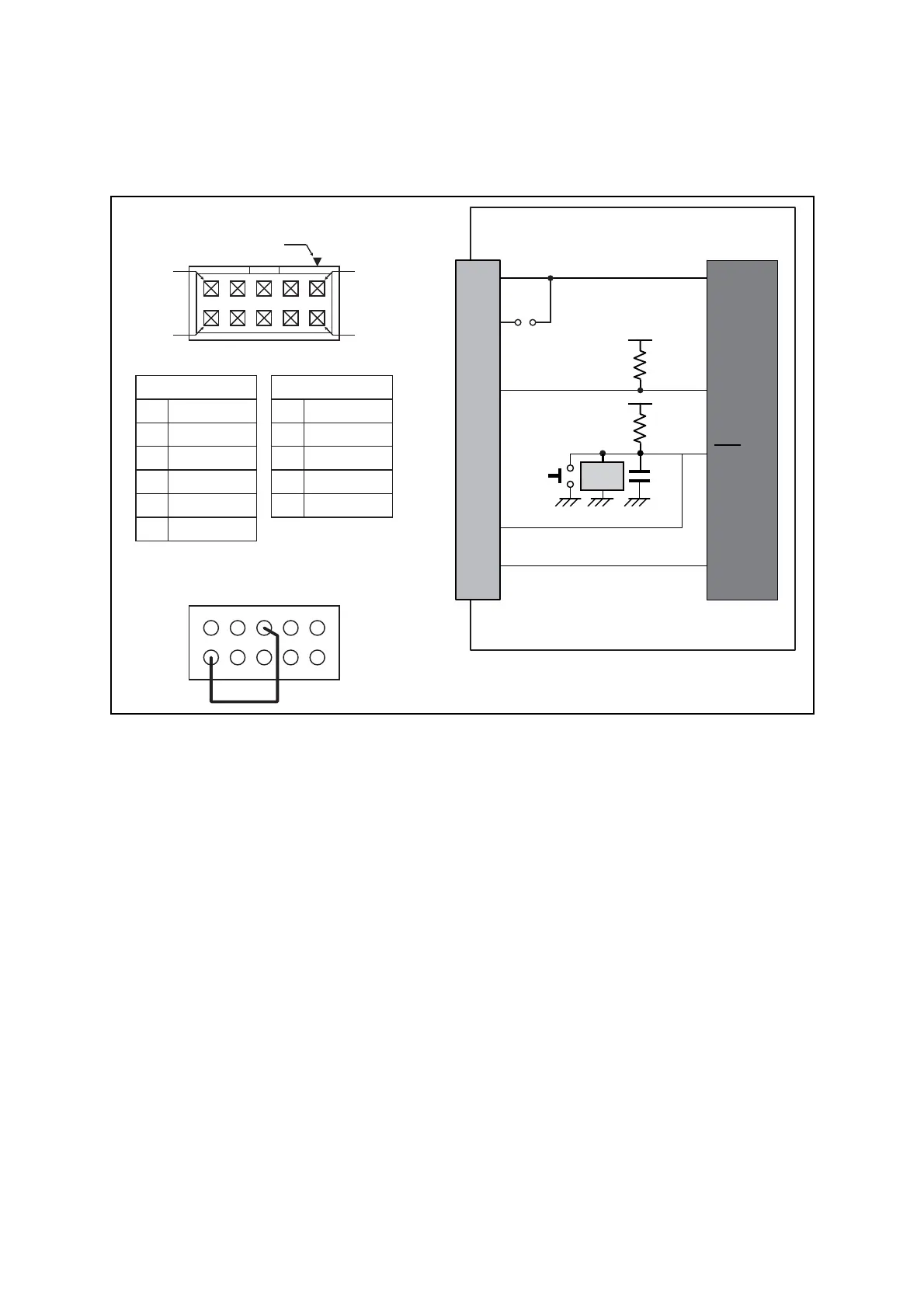

Figure 25.2-2 shows an example of connection for serial programming.
Figure 25.2-2 Example of Serial Programming Connection
Since the pull-up resistor that can be used depends on the tool used and the interconnection
length, refer to the tool document when selecting a pull-up resistor.
In the case of using the BGM adaptor MB2146-07-E of Fujitsu Semiconductor Limited, it is
recommended to use a pull-up resistor of approximately 2 kΩ to 10 kΩ.
MCU
RST
VCC
IC
Target Board
DBG
VCC
VCC
VSS
IDC10
1
6
8
4
2
IDC10 (male connector)
Pin 1
Pin 2
Pin 9
INDEX MARK
Pin 10
1 UVCC
No. Name
2V
SS
4RSTOUT
6 POUT3V
MB2146-07-E MB2146-08-E
8 DBG
1 UVCC
No. Name
2V
SS
4RSTOUT
8 DBG
(TOP VIEW)
Power supply from adaptor
(only on MB2146-07-E)
Jumper connection on MB2146-07-E for
power supply from the adaptor
1
26
9
10
