TX140 S1 Upgrade and Maintenance Manual 133
Power supply

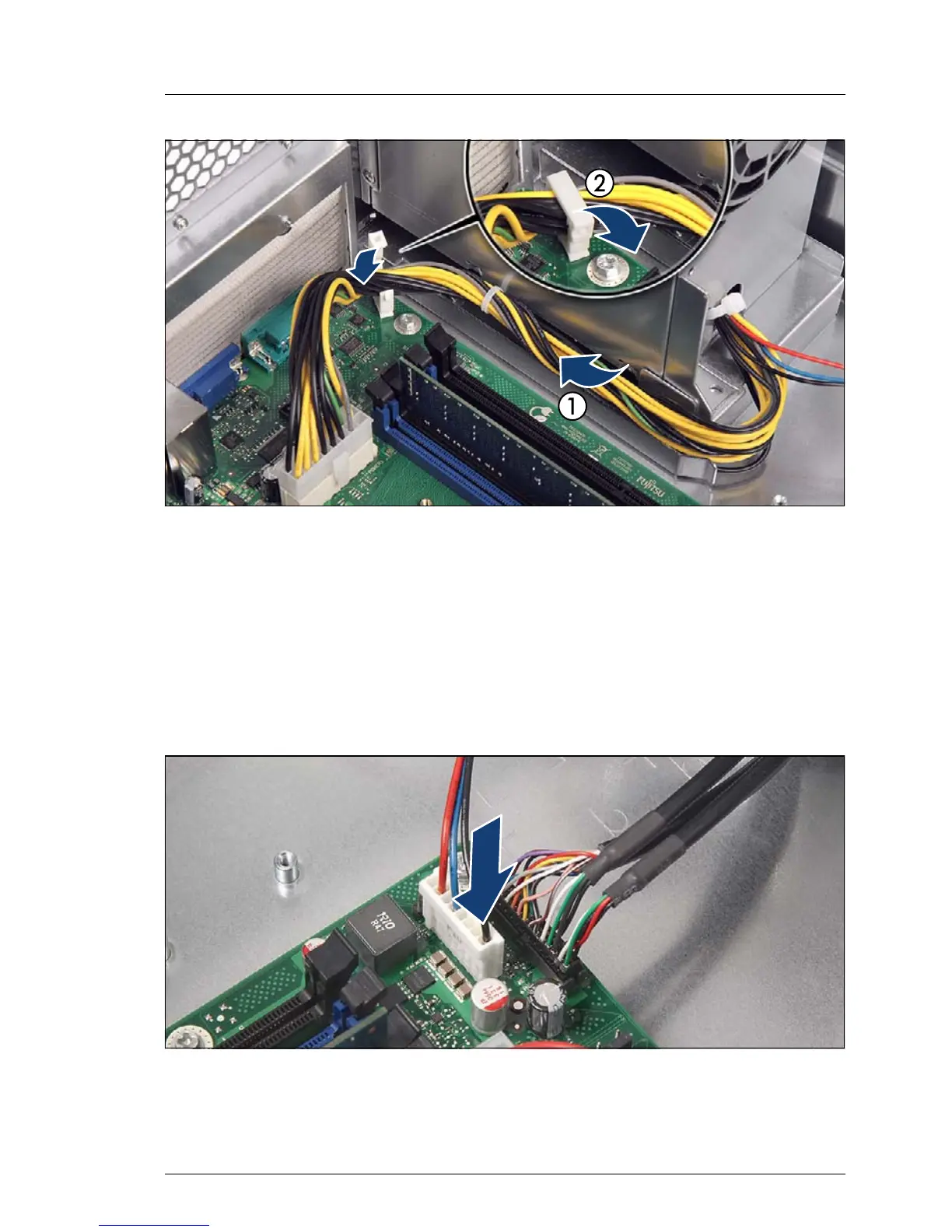

Figure 47: Connecting power cables (B)
Ê Carefully fit the PSU ATX power cable into the cable duct as shown (1).
V CAUTION!
Ensure not to scrape the PSU ATX power cable on the sharp-edged
metal borders.
Ê Run the PSU ATX power cable through the power cable clamp.
Close the power cable clamp (2).
Figure 48: Connecting power cables (C)
Ê Connect the PSU power management connector to system board connector
PC2009.
