478 Upgrade and Maintenance Manual TX140 S1
Converting a tower server to a rack server
15.4 Removing the foot mounting rail
Ê Bring the server to its horizontal position.

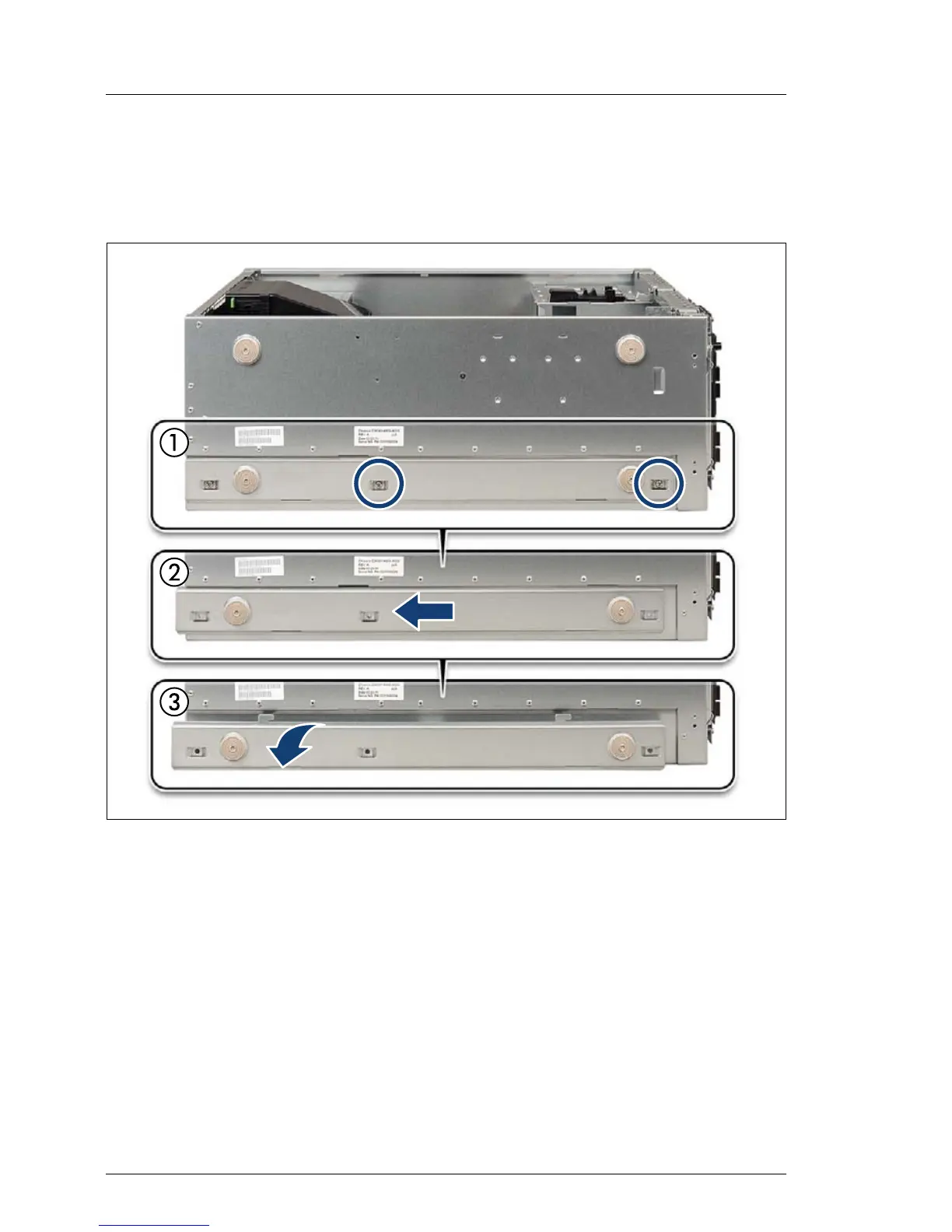

Figure 308: Removing the foot mounting rail
Ê Remove two screws from the foot mounting rail (1).
Ê Slide the foot mounting rail to the left by 1 cm (2) to disengage the locking
latches.
Ê Remove the foot mounting rail from the chassis (3).
I The foot mounting rail is no longer required.
