482 Upgrade and Maintenance Manual TX140 S1
Converting a tower server to a rack server
15.7 Rack front cover
15.7.1 Assembling the rack front cover

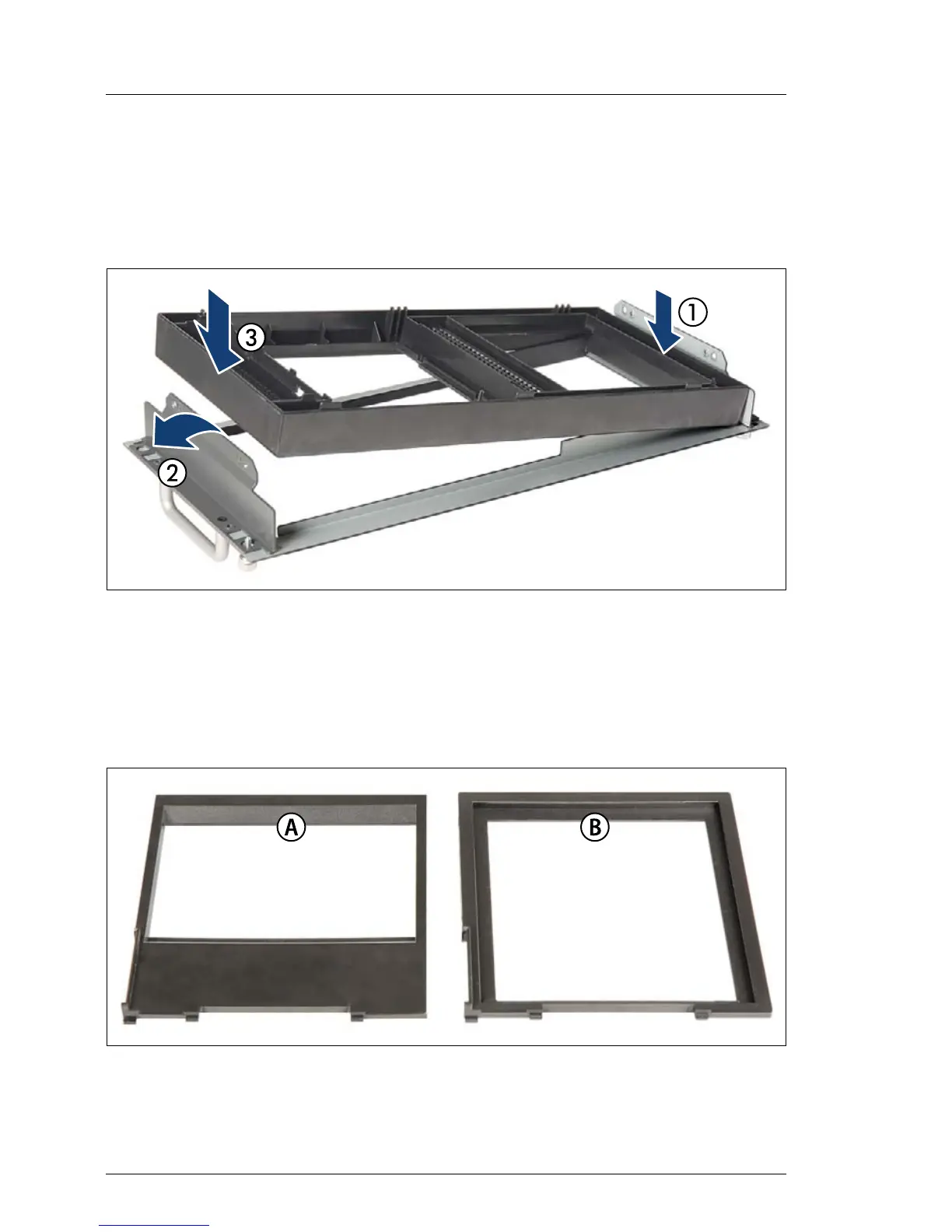

Figure 312: Inserting the front rack bezel into the rack mounting frame
Ê Fit the front rack bezel into the right retaining bracket of the rack mounting
frame as shown (1).
Ê Pull out on the left retaining bracket of the rack mounting frame (2) and fold
down the front rack bezel until it snaps in place (3).
Figure 313: HDD / SSD front panel frames
A 2.5-inch HDD / SSD front panel frame
B 3.5-inch HDD front panel frame
