TX140 S1 Upgrade and Maintenance Manual 199
Hard disk drives / solid state drives
7.4.2.4 Installing the 3.5-inch HDD SAS / SATA backplane

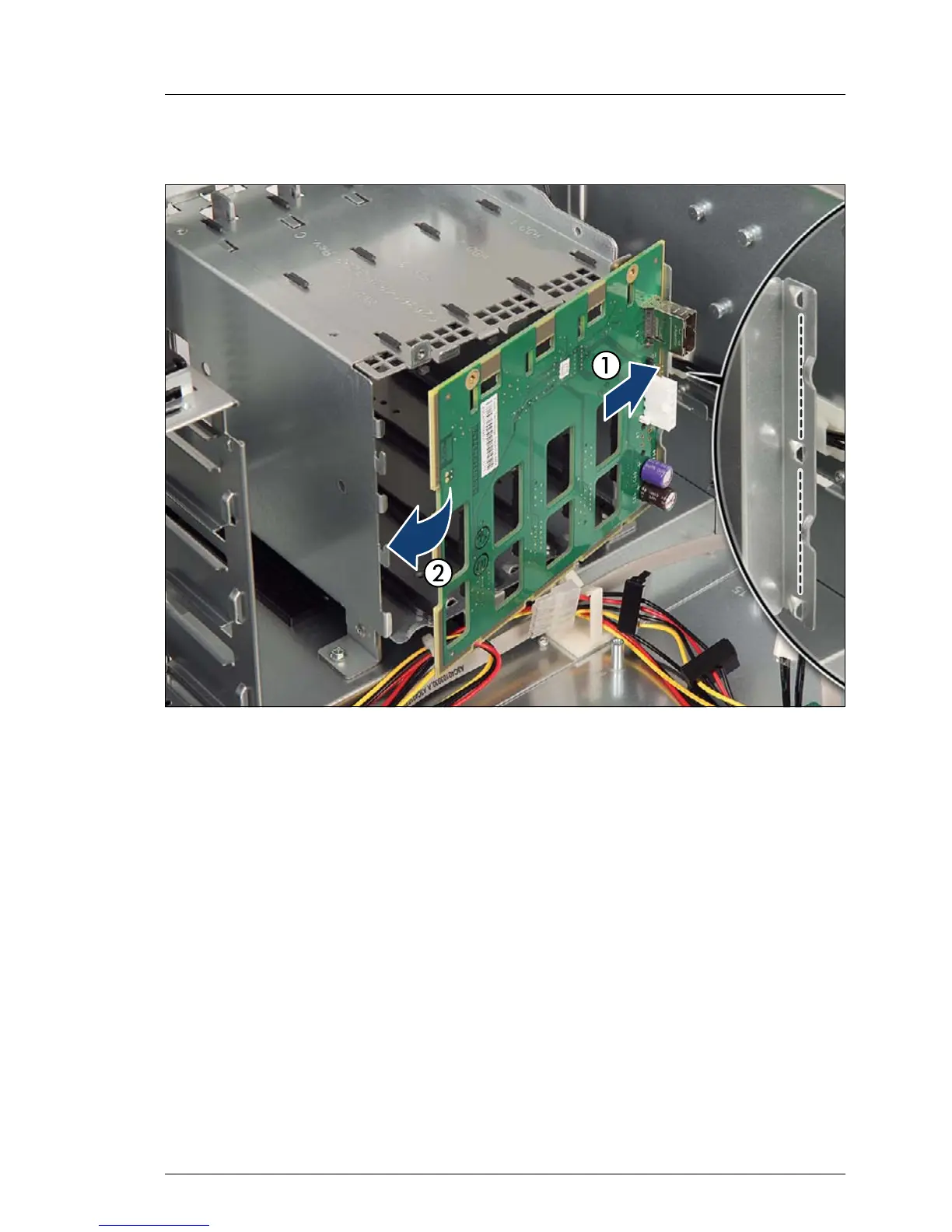

Figure 91: Installing the 3.5-inch HDD SAS / SATA backplane (A)
Ê At a slight angle, fit the new 3.5-inch HDD SAS / SATA backplane
(A3C40110326) into the guides on the drive cage (1, see close-up).
Ê Fold in the 3.5-inch HDD SAS / SATA backplane (2).
I Ensure that the three hooks on the drive cage project through the
recesses in the backplane.
