15.5 Realigning the front panel and accessible
drives
I The guides in the upper drive cage allow for horizontal and vertical
assembly of the front panel and accessible drives.
15.5.1 Removing the front panel and accessible drives

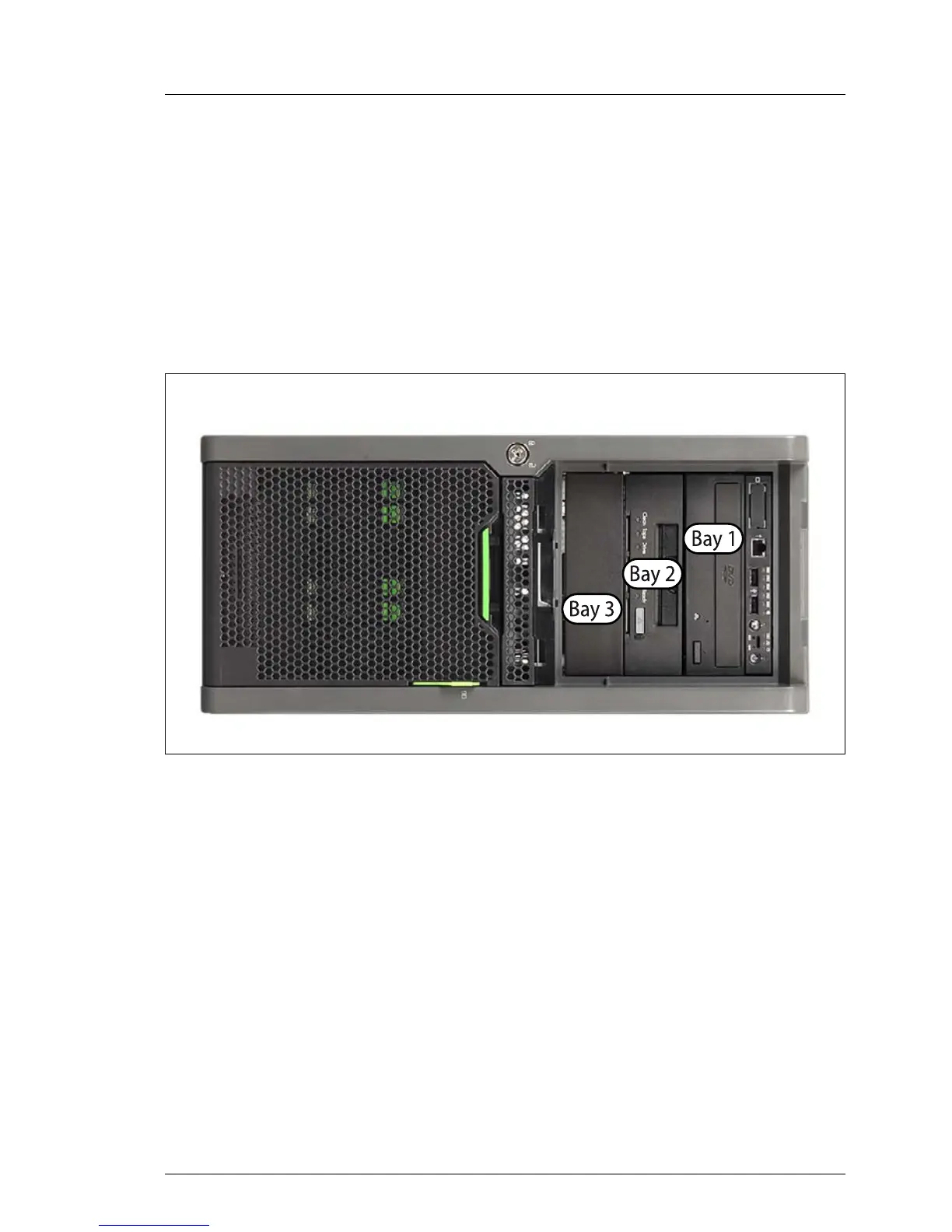

Figure 309: Accessible drives mounting order (tower server)
Ê Remove the front panel module as described in section "Removing the front
panel module" on page 374.
Ê Remove all accessible drive dummy modules as described in section
"Removing the accessible drive dummy module" on page 331.
Ê Remove all accessible drives as described in sections "Removing an optical
disk drive (ODD)" on page 352 and "Removing a backup drive" on page 356.
5.25 inch x 1.6 inch
