182 Upgrade and Maintenance Manual TX140 S1
Hard disk drives / solid state drives
7.3.3.4 Installing a 3.5-inch HDD dummy module
V CAUTION!
If the removed HDD module is not replaced immediately, always replace
a dummy module into the unused HDD / SSD bay to comply with
applicable EMC regulations and satisfy cooling requirements.

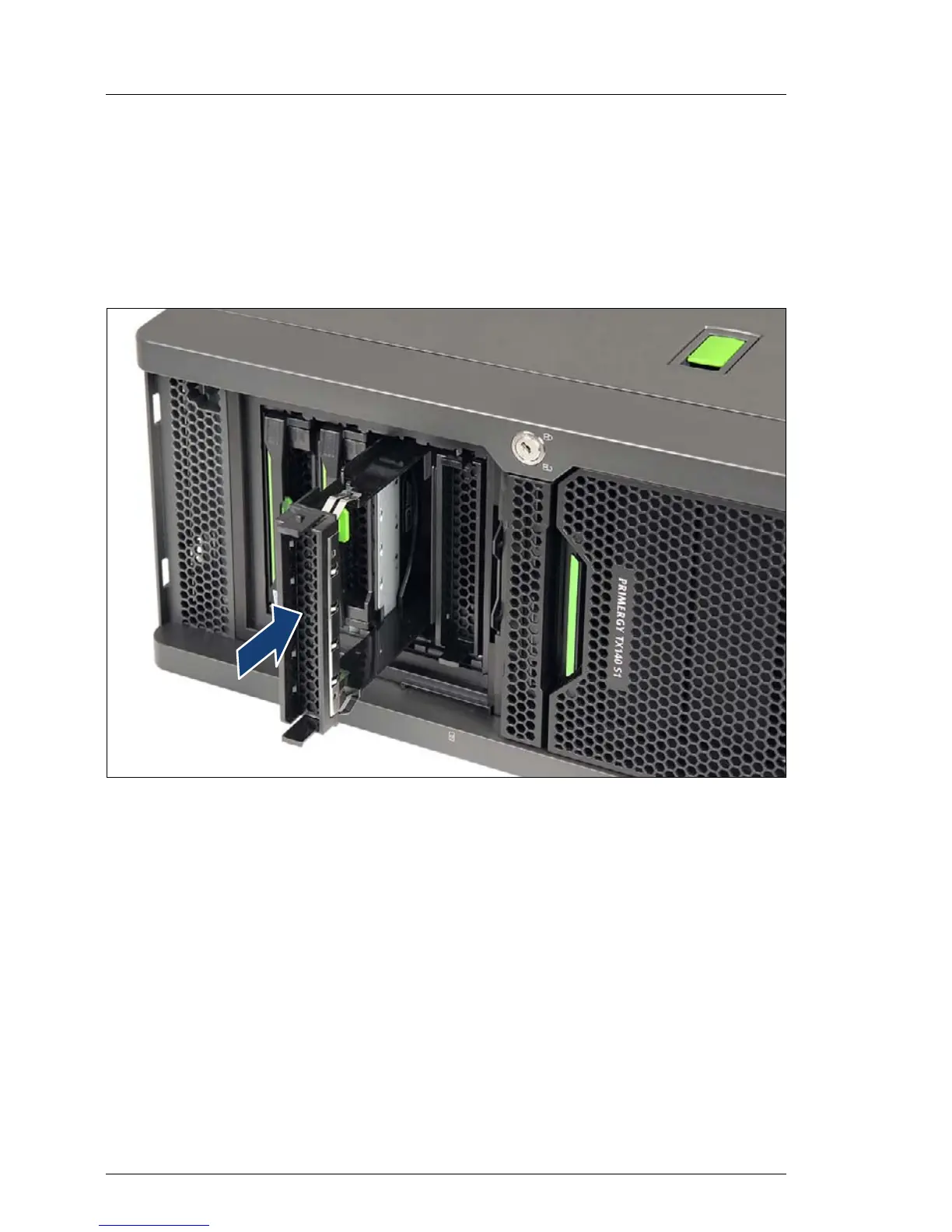

Figure 80: Installing a 3.5-inch HDD dummy module
Ê Slide the HDD dummy module into the drive bay until it locks in place.
7.3.3.5 Concluding steps
Perform the following procedures to complete the task:
Ê When working on a tower server, close the HDD bay cover as described in
section "Installing the HDD bay cover" on page 84.
Ê If applicable, close the rack door as described in section "Closing the rack
door" on page 92.
