Ê Run the front LAN cable through the mounting bracket on the front panel
frame as shown (1).
Ê Carefully snap the front LAN cable connector into the mounting bracket (2).
13.2.1.6 Re-assembling the front panel module

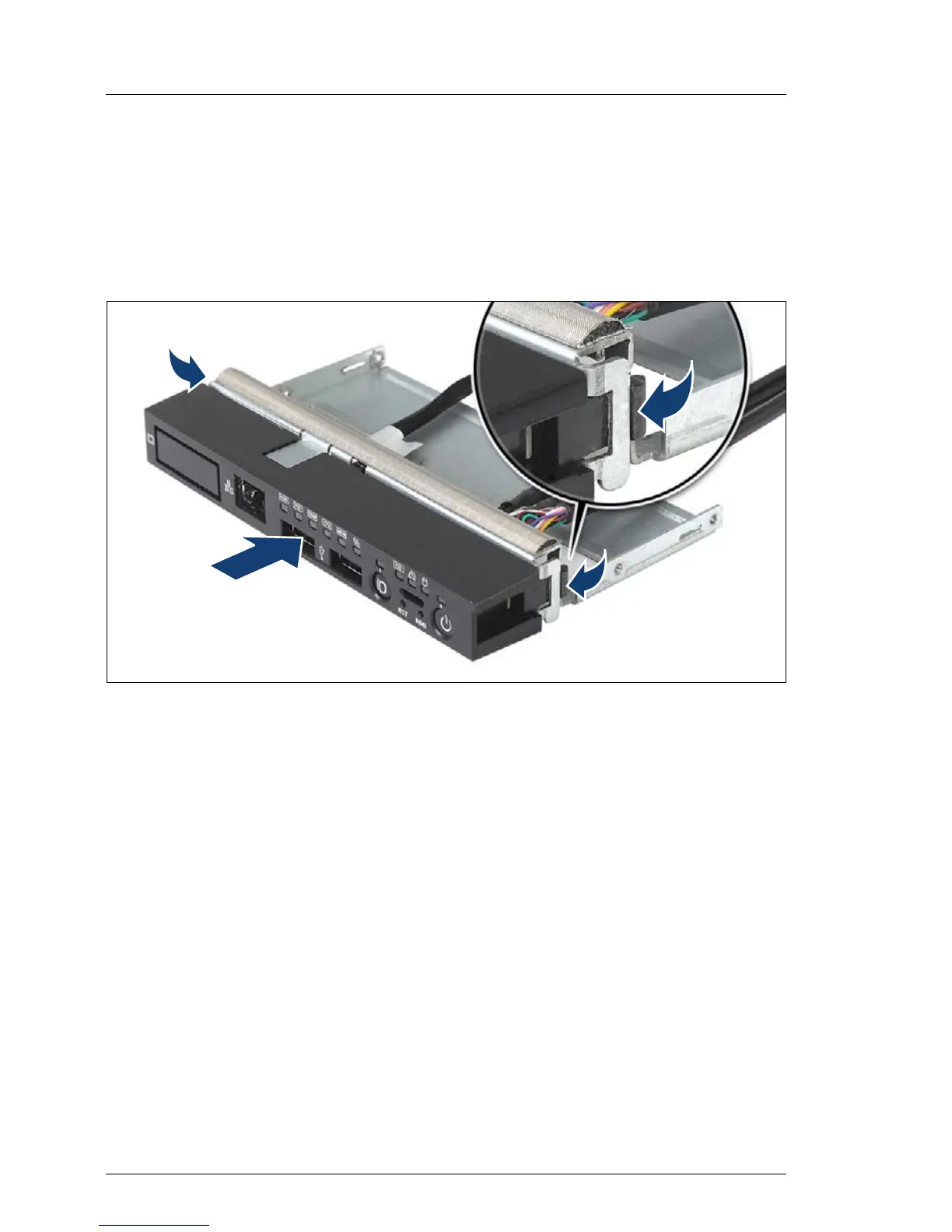

Figure 241: Installing the front panel cover
Ê Snap the front panel cover back onto the front panel frame. Ensure that the
locking latches on the front panel cover (see close-up) properly engage.
