TX140 S1 Upgrade and Maintenance Manual 187
Hard disk drives / solid state drives
7.4.1.3 Removing the 2.5-inch HDD SAS / SATA backplane

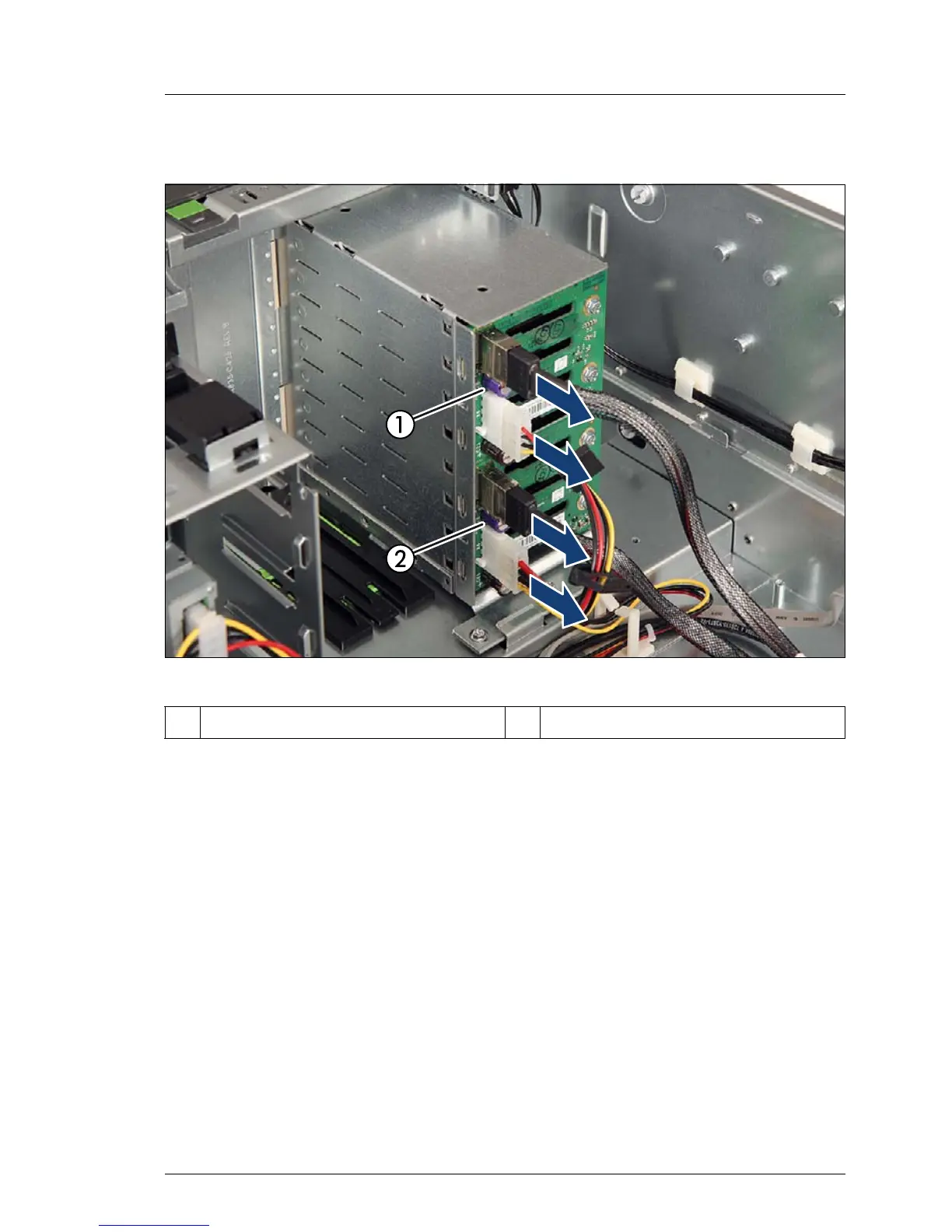

Figure 81: Disconnecting cables from the 2.5-inch HDD SAS / SATA backplane
Ê Disconnect all cables from the 2.5-inch HDD SAS / SATA backplane:
– SAS / SATA cable T26139-Y3963-V101 connected to SAS controller
connector MLC1 from primary backplane connectors X1
– SAS / SATA cable T26139-Y3963-V101 connected to SAS controller
connector MLC2 from secondary backplane connectors X1
– Power cable T26139-Y4012-V501 connector P9 from primary
SAS / SATA backplane connector X6
– Power cable T26139-Y4012-V501 connector P6 from secondary
SAS / SATA backplane connector X6
1 primary HDD backplane 2 secondary HDD backplane
