132 Upgrade and Maintenance Manual TX140 S1
Power supply
6.1.1.6 Reconnecting power cables

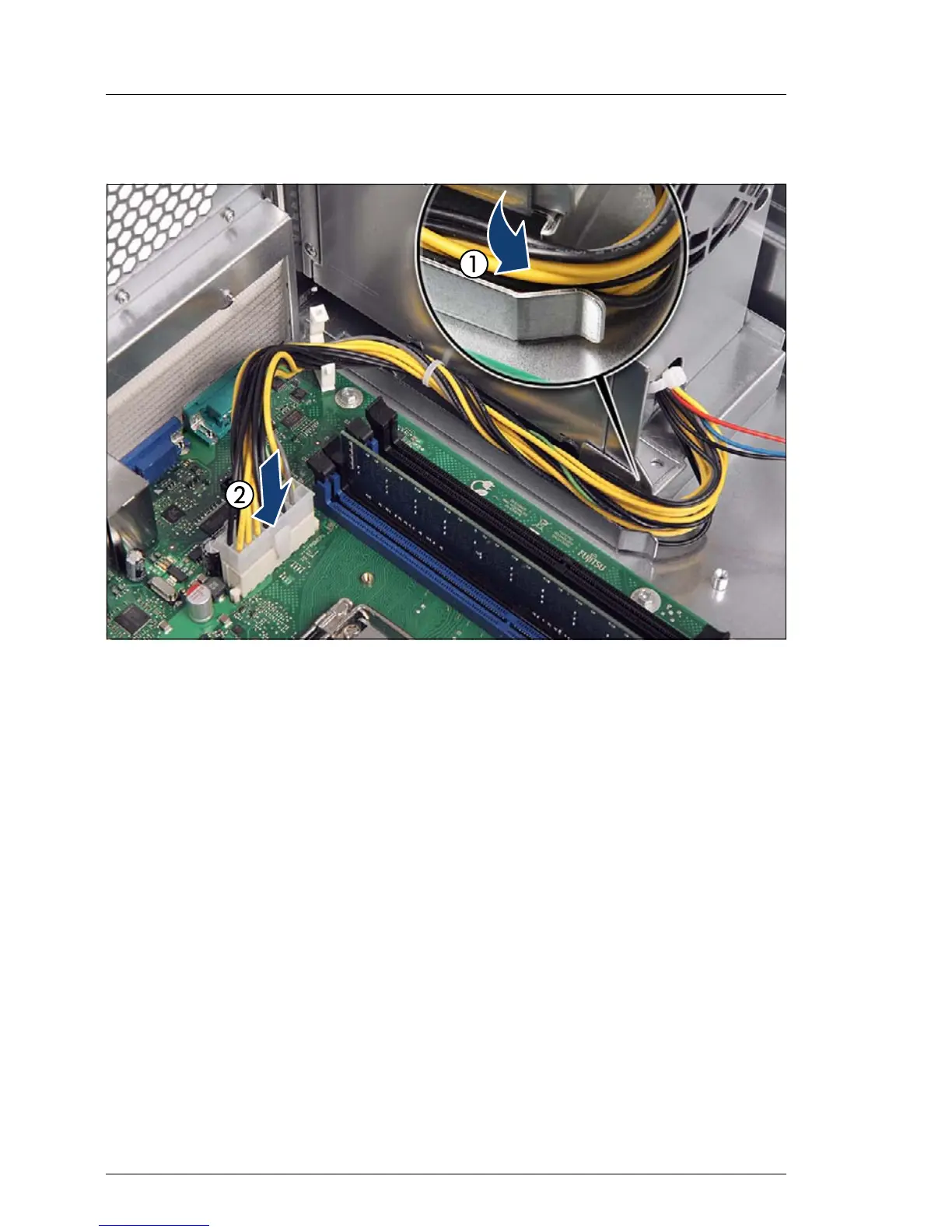

Figure 46: Connecting power cables (A)
Ê Carefully fit the PSU ATX power cable into the front opening of the cable duct
as shown (1).
V CAUTION!
Ensure not to scrape the PSU ATX power cable on the sharp-edged
metal borders.
Ê Connect the PSU ATX power connector to system board connector
POWER1 (2).
