17 Appendix
17.1 Mechanical overview
17.1.1 Server front
2.5-inch HDD / SSD model

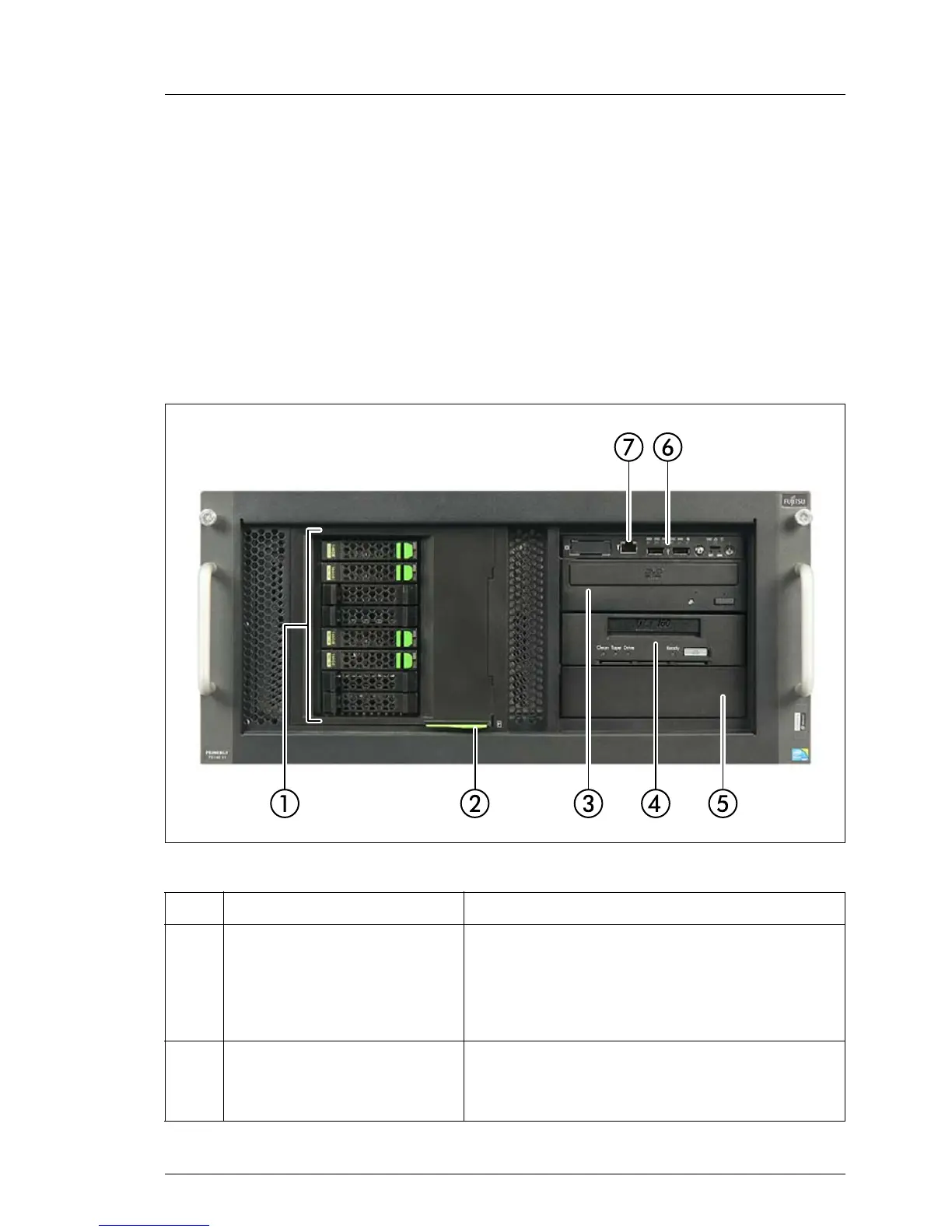

Figure 398: PRIMERGY TX140 S1 front - 2.5-inch HDD / SSD model
Pos. Component Reference
1
2.5-inch hard disk drives /
solid state drives / dummy
modules
Drive numbering #0 - #7
"Mounting order for 2.5-inch HDDs / SSDs"
on page 161
2ID card
"Mounting the rack front cover" on
page 77, "Mounting the front cover" on
page 82
