570 Upgrade and Maintenance Manual TX140 S1
Appendix
3.5-inch HDD model

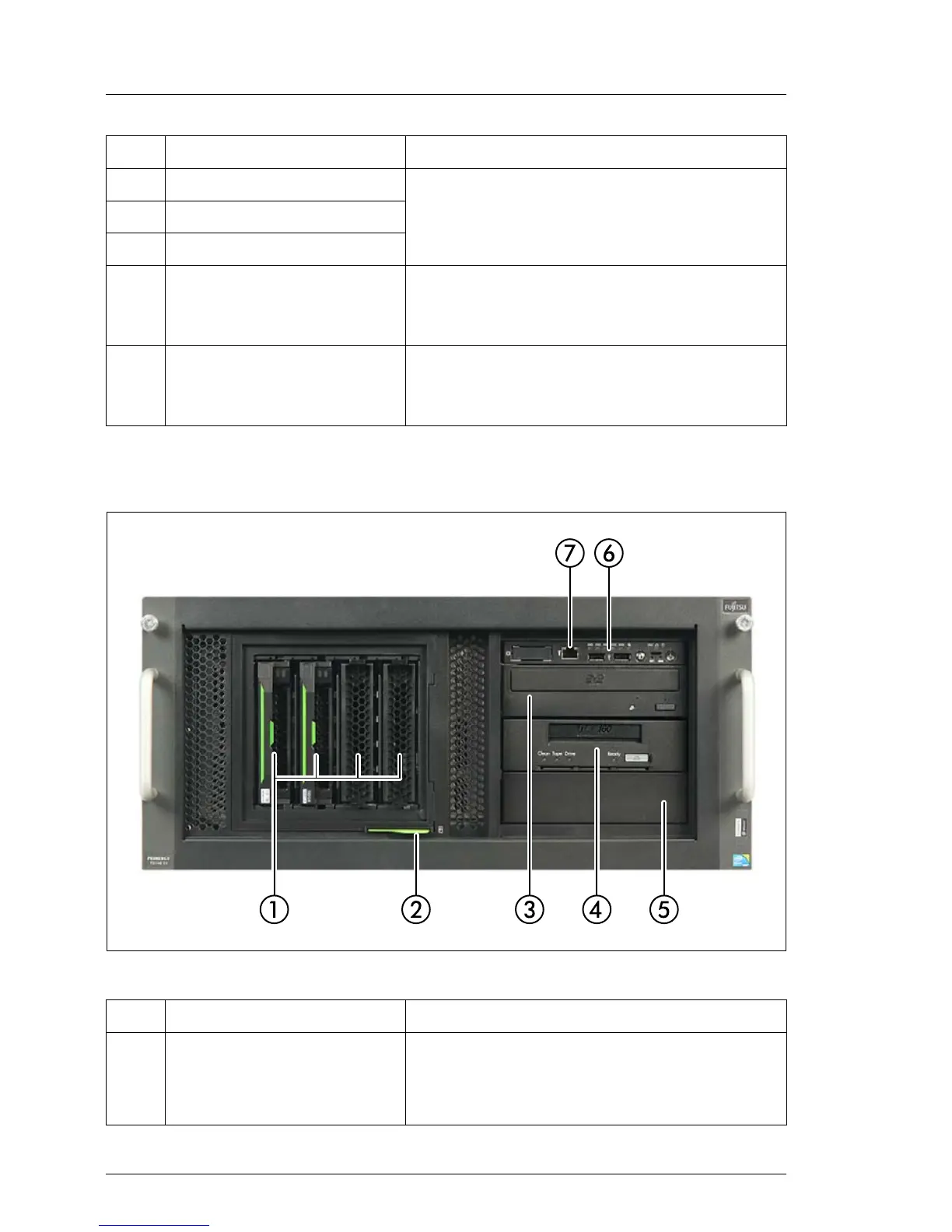

Figure 399: PRIMERGY TX140 S1 front - 3.5-inch HDD model
3 Optical disk drive
"Mounting order for accessible drives" on
page 328
4 Backup drive
5 5.25-inch dummy module
6
Front panel module
including front USB
connectors
"Replacing the front panel module" on
page 372
7
Front panel module:
optional front LAN
connector
"Replacing the front LAN connector and
board" on page 408
Pos. Component Reference
1
3.5-inch hard disk drives /
dummy modules
Drive numbering #0 - #3
"Mounting order for 3.5-inch HDDs" on
page 173
