356
Upgrade and Mai
ntenance Manual
TX140
S1
Accessible drives
12.3.5
Removing a backup drive

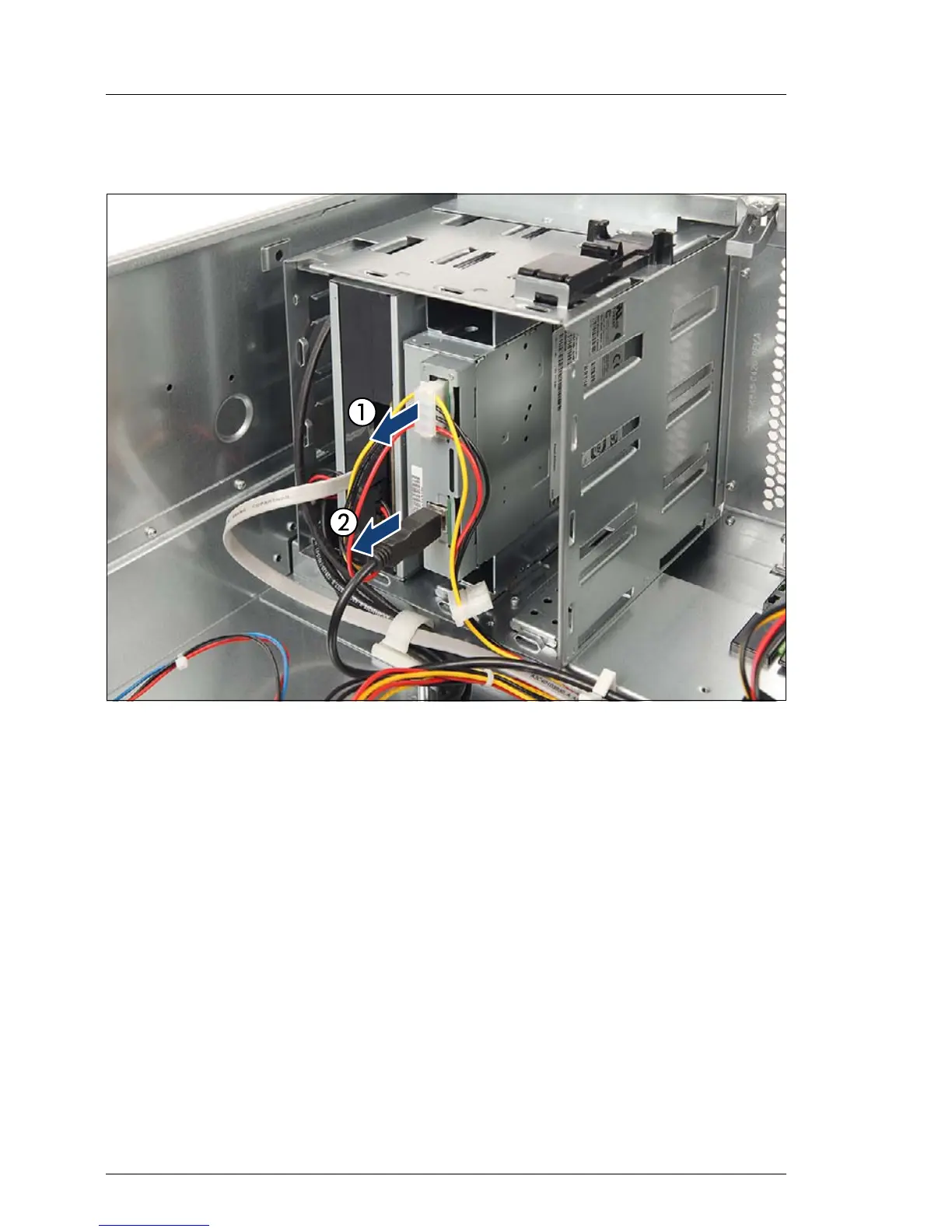

Figure 209: Disc
onnecting cab
les
from the bac
kup drive
Ê
Disconnect all cables from the backup drive.
1
Power cable T26139-Y4012-V501
–
Power connector P3 if inst
alled in middle bay
–
Power connector P2 if instal
led in bottom bay
2
USB cable
T26139-
Y3973-V2 T
ype B connector
355
357
