360 Upgrade and Maintenance Manual TX140 S1
Accessible drives
Ê Attach EasyClick rails on either side of the dummy module, each with two
M3 x 4.5 mm screws.
I Use the first holes in the bottom and upper rows of the perforated rail
as shown.
12.3.6.2 Installing the accessible drive dummy module

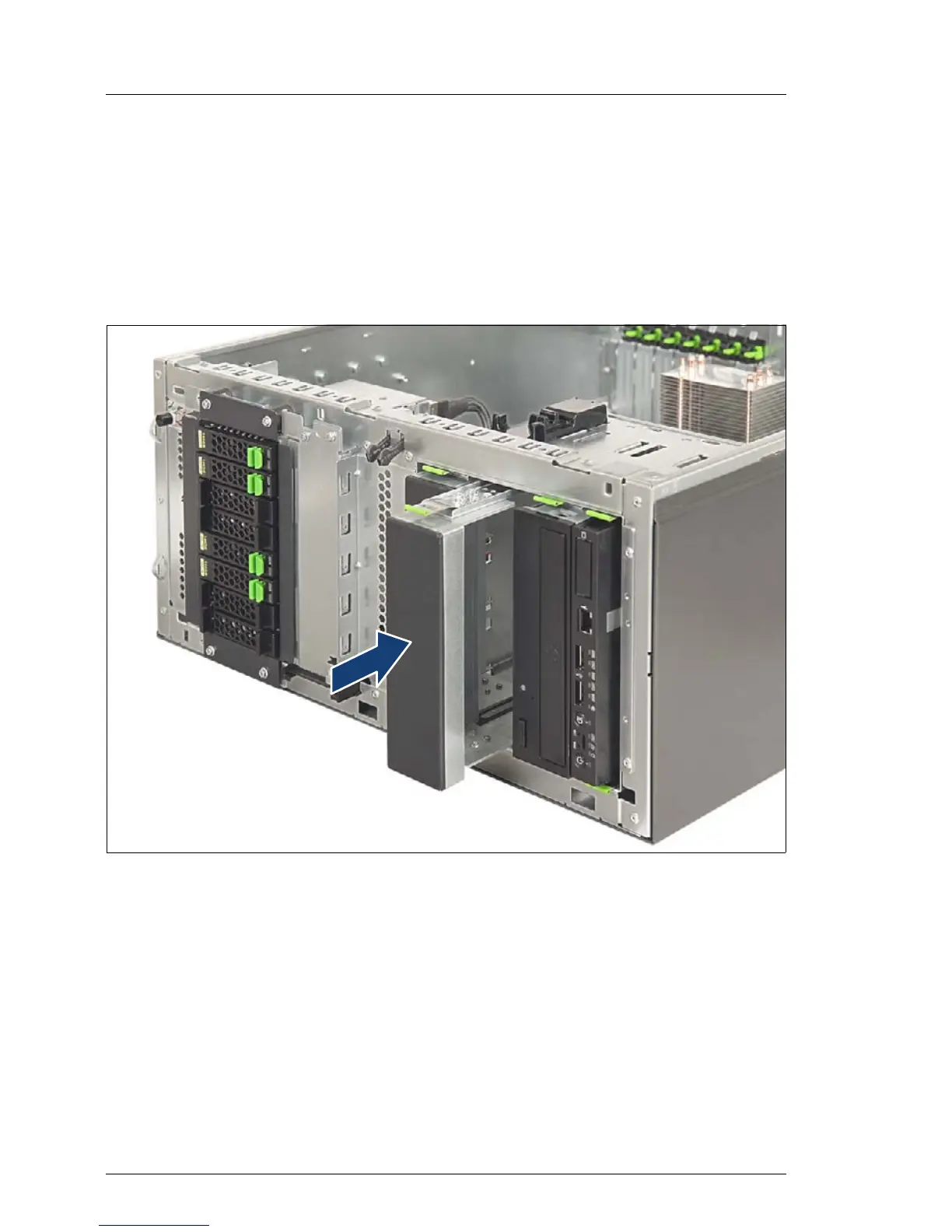

Figure 214: Installing the dummy module
Ê Insert the dummy module into its installation bay and carefully push in until
it locks in place.
