TX140 S1 Upgrade and Maintenance Manual 255
Expansion cards and backup units
Ê Remove the fan module as described in section "Removing the fan module"
on page 208.
9.3.2.3 Installing TFM to the RAID controller (if applicable)

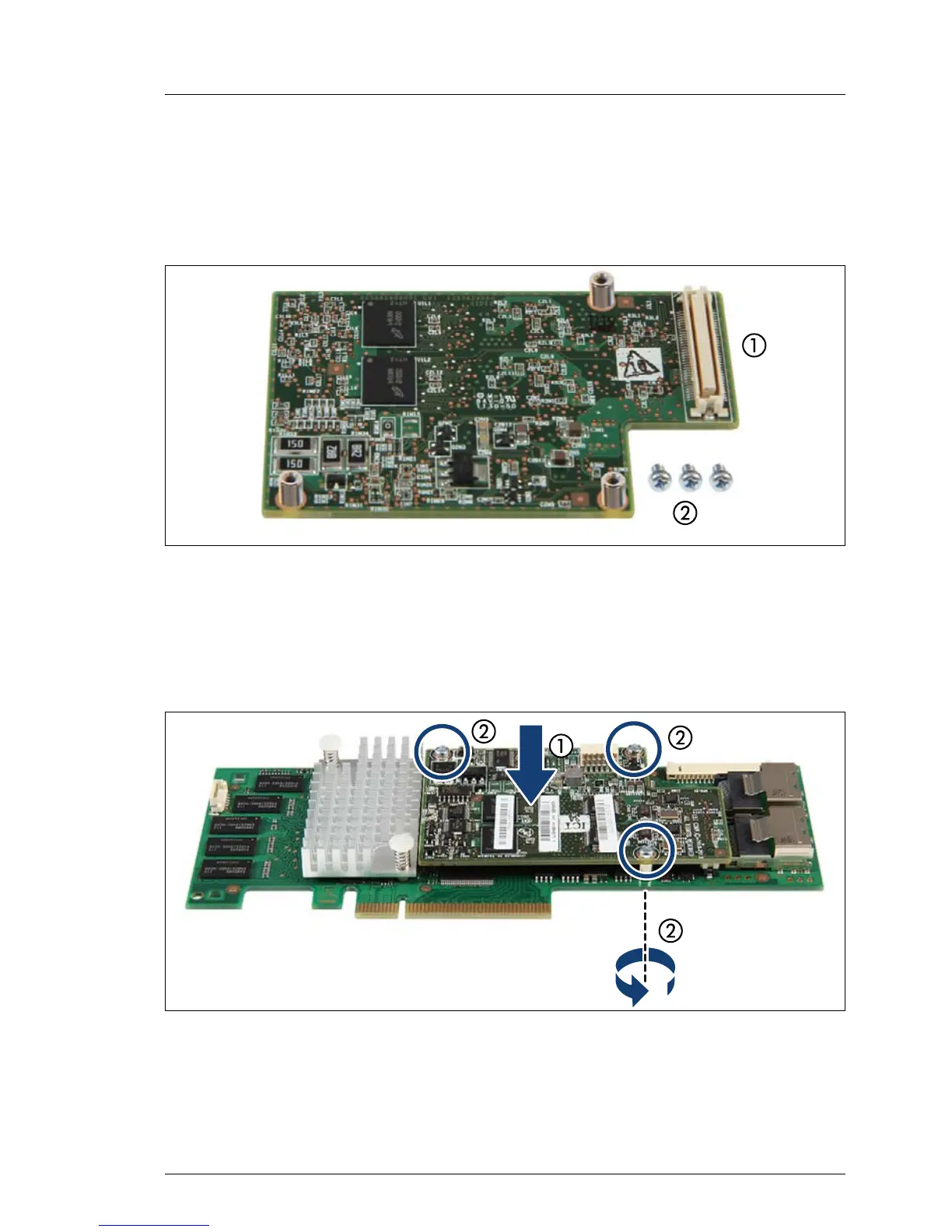

Figure 127: TFM kit
TFM kit (S26361-F3669-L110):
1 LSI TFM Module LSZ:L3-25419-**
2 Screws
Figure 128: Installing TFM
Ê Fit the spacer bolts of the TFM on the RAID controller (1).
Ê Fasten the TFM on the RAID controller with the three screws from the TFM
kit (2).
