332 Upgrade and Maintenance Manual TX140 S1
Accessible drives
12.2.4 Installing an optical disk drive (ODD)
12.2.4.1 Preparing the optical disk drive
Removing EasyClick rails from the dummy cover
I Accessible drives are supplied without EasyClick rails. Before installing
a new accessible drive, EasyClick rails need to be removed from the
dummy cover and mounted on the new drive.

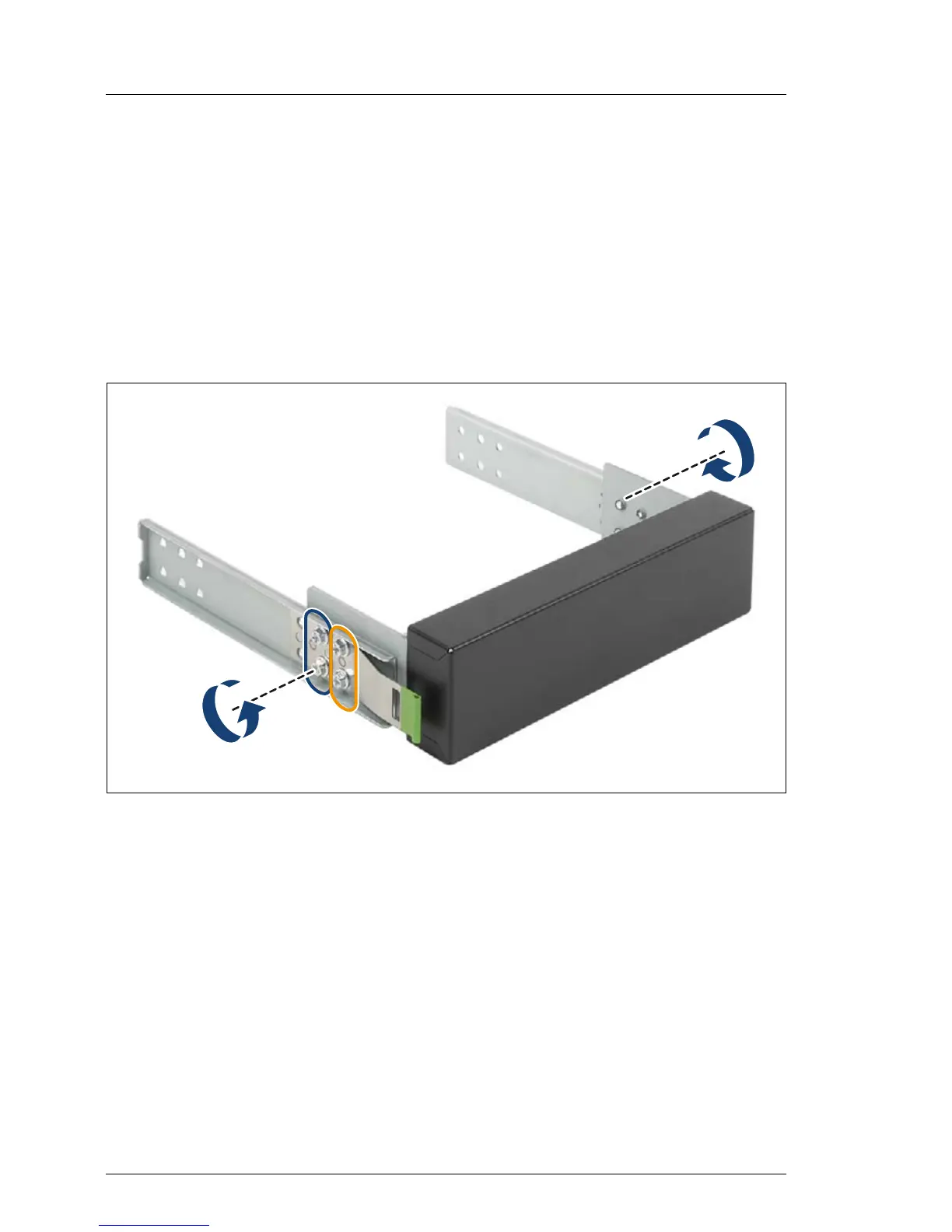

Figure 185: Removing EasyClick rails from the dummy module
Ê Remove four screws from each side of the dummy module to detach the
EasyClick rails.
I Note that there are two M3 x 4.5 mm screws with M3 thread (orange
circle) and two 6-32 x 4.8 mm screws with UNC thread (blue circle)
on each side.
Save unused screws for future use.
