406 Upgrade and Maintenance Manual TX140 S1
Front panel and external connectors
Ê Attach EasyClick rails on either side of the front panel module, each with two
M3 x 4.5 mm screws.
I Use the holes in the bottom row of the perforated rail as shown.
13.2.2.5 Re-installing the front panel module

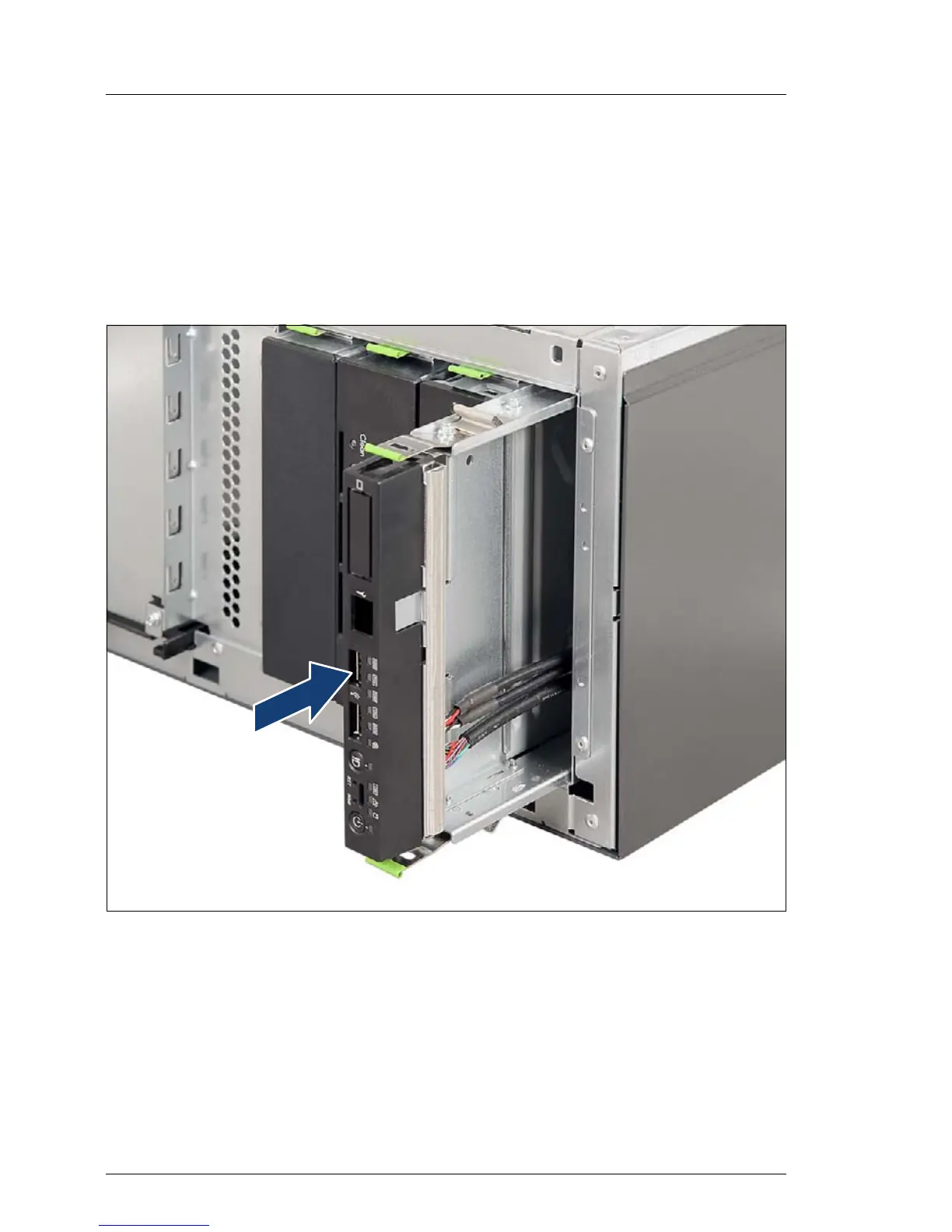

Figure 259: Installing the front panel module
Ê Insert the front panel module into its installation bay and carefully push in
until it locks in place.
