284 Upgrade and Maintenance Manual TX140 S1
Expansion cards and backup units
9.4.2 Handling SFP+ transceiver modules
For Fiber Channel over Ethernet (FCoE) configurations, the Ethernet server
adapter is equipped with one or two SFP+ (small form-factor pluggable)
transceiver modules.
9.4.2.1 Installing SFP+ transceiver modules
Required tools
● Preliminary and concluding steps: tool-less
● Installing SFP+ transceiver modules: tool-less
Preparing the SFP+ transceiver module

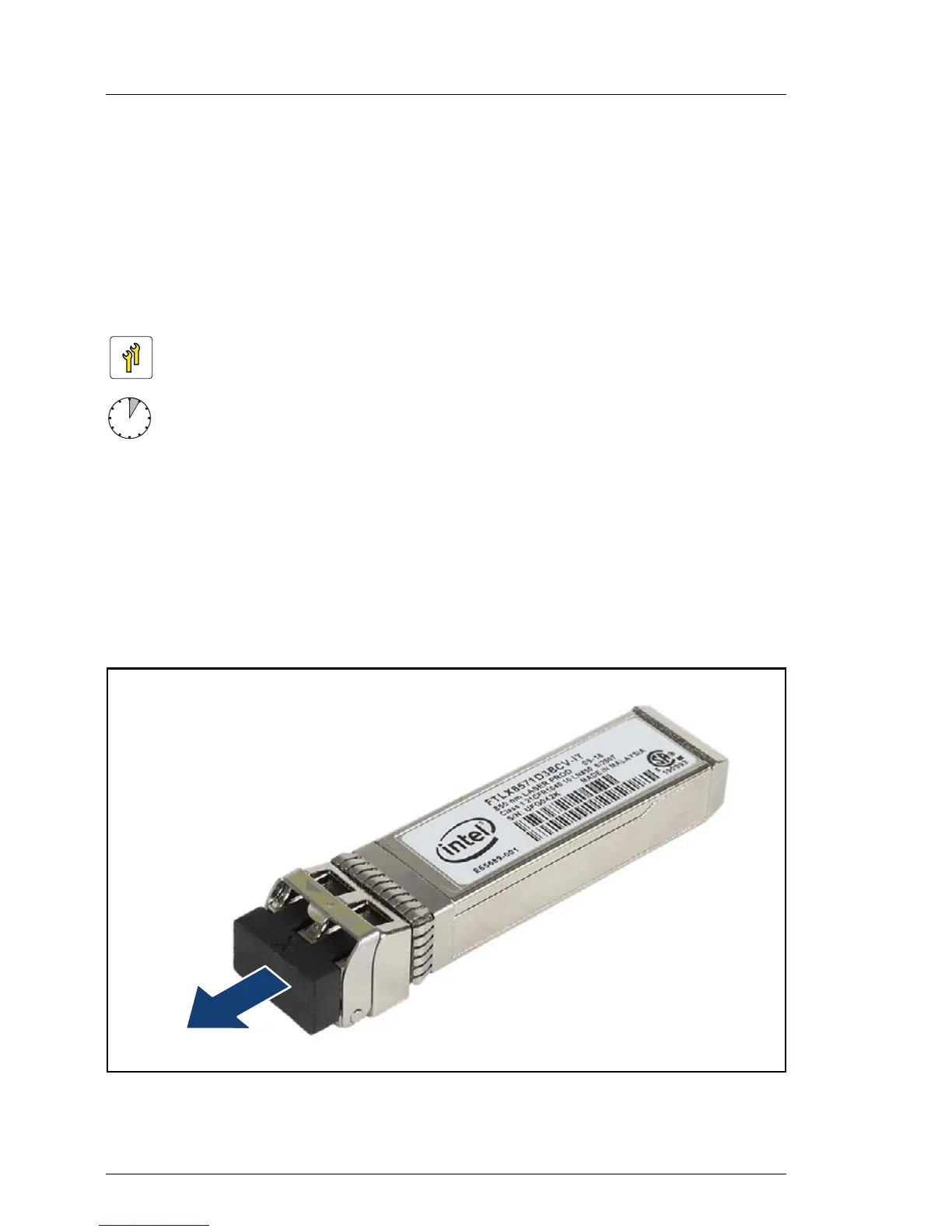

Figure 153: Removing the protective optical port plug
Upgrade and Repair Units (URU)
Average task duration: 5 minutes
